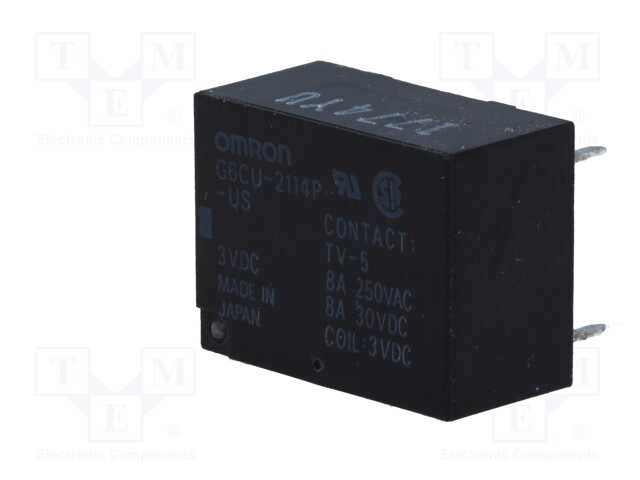

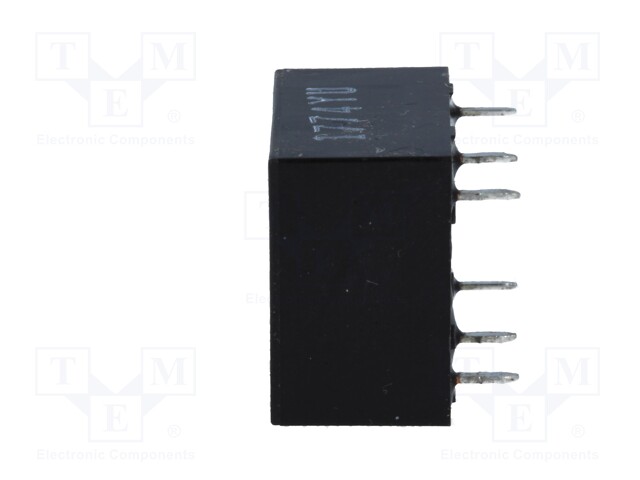

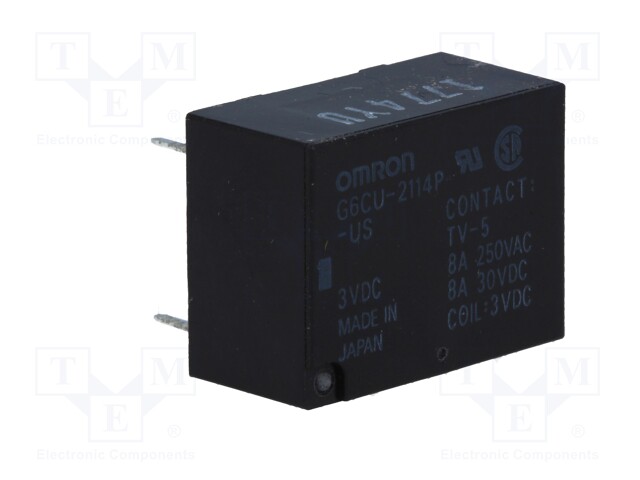

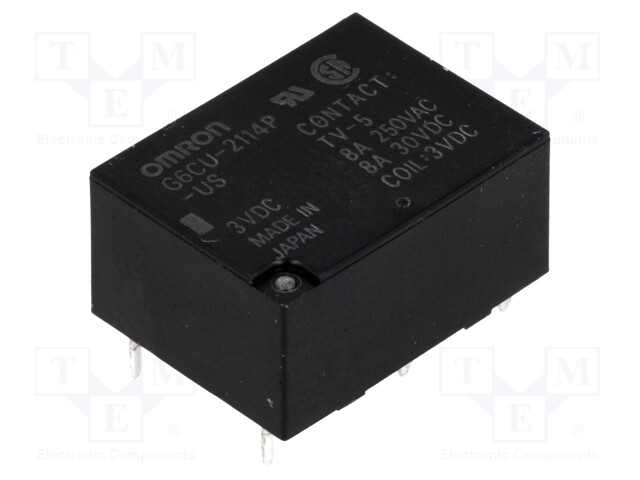

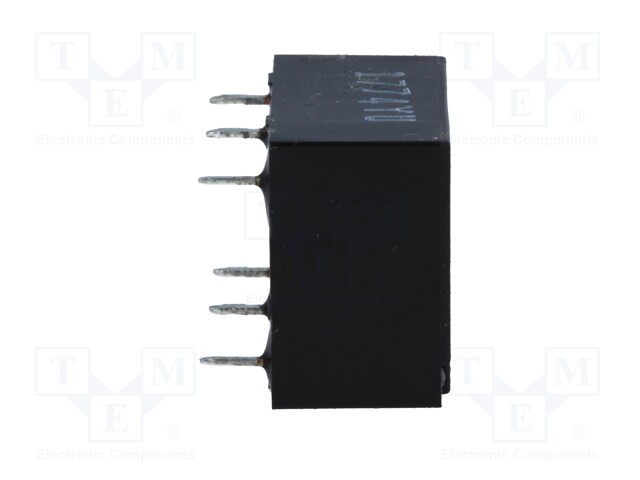

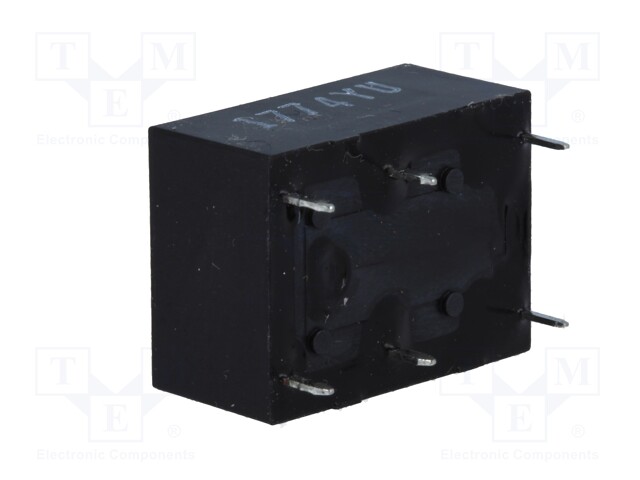

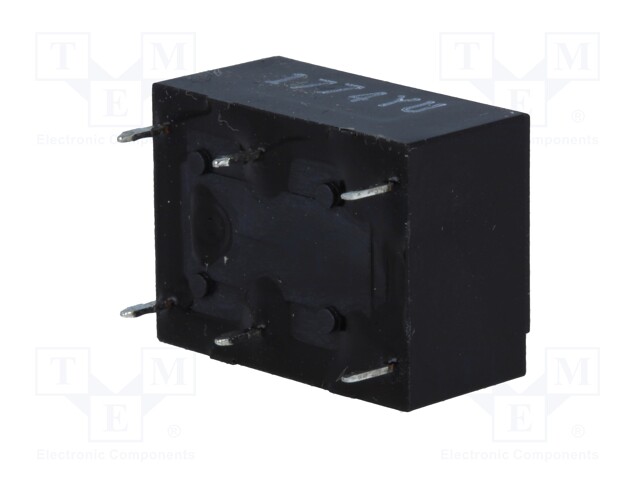

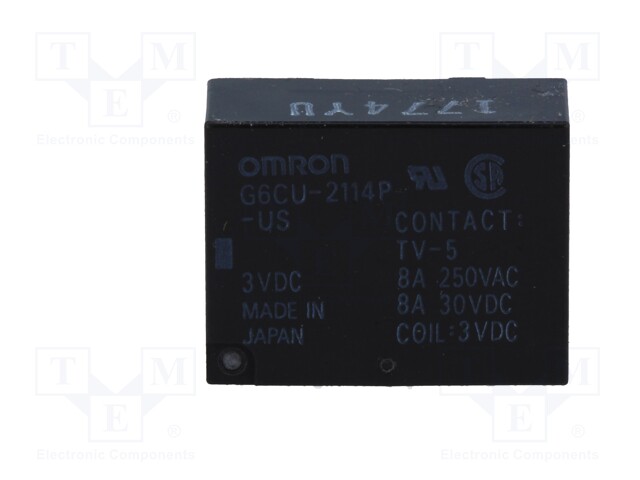

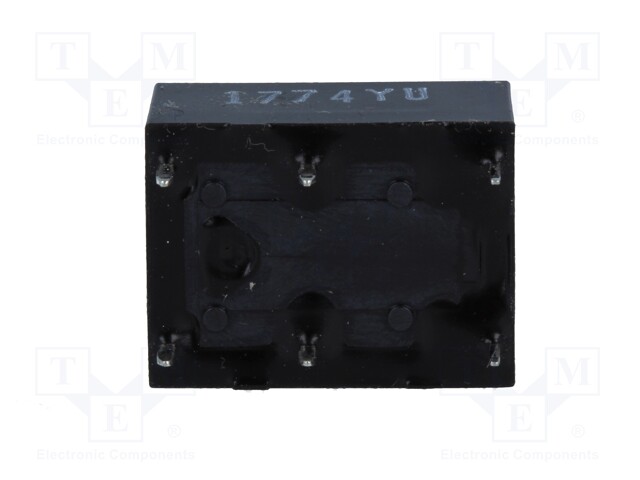

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 3VDC; 8A/250VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G6CU-2114P-US 3VDC
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G6CU-2114P-US 3VDC
    • Mounting
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    9.15 € 9.15 € (wo VAT) 9.15 EUR

    9.15 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 3VDC; 8A/250VAC

    Mounting PCB
    Terminal pitch 7.62mm

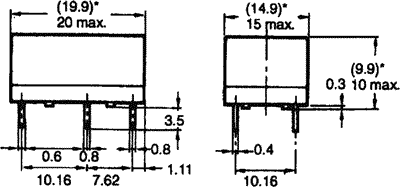

    Body dimensions 20x15x10mm
    Switched voltage max. 125V DC, max. 380V AC
    Rated coil voltage 3V DC
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 8A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Operate time 10ms
    Release time 10ms
    Coil current 67mA
