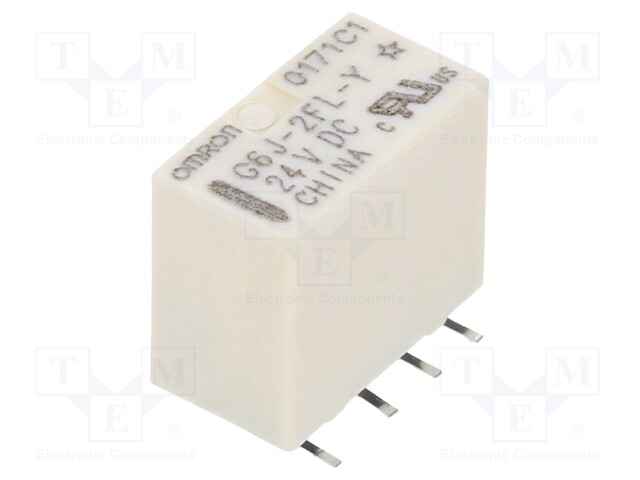

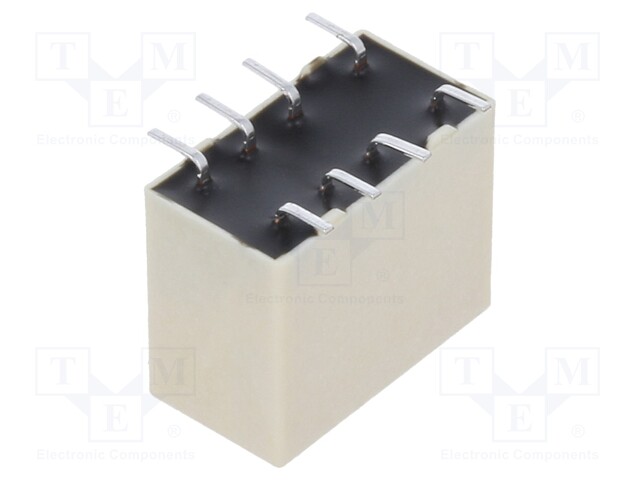

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.3A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G6J-2FL-Y DC24
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G6J-2FL-Y DC24
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    4.52 € 4.52 € (wo VAT) 4.5200000000000005 EUR

    4.52 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.3A/125VAC; 1A/30VDC

    Mounting SMD
    Operating temperature -40...85°C
    Terminal pitch 2.2mm
    Body dimensions 10.6x5.7x9mm
    Switched voltage max. 110V DC, max. 125V AC
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.3A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 140mW
    Operate time 3ms
    Release time 3ms
    Coil current 9.2mA
