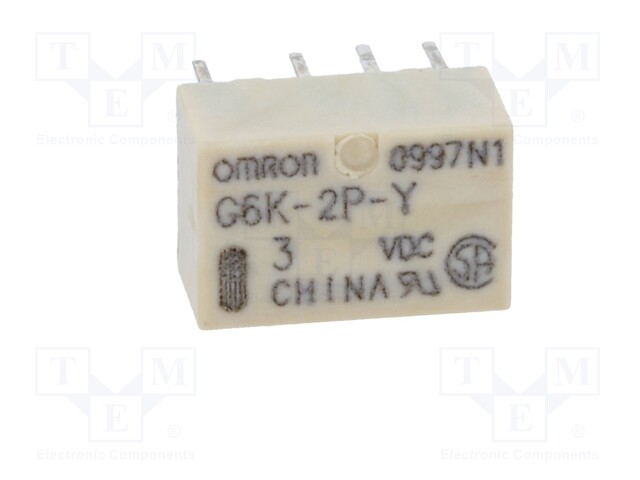

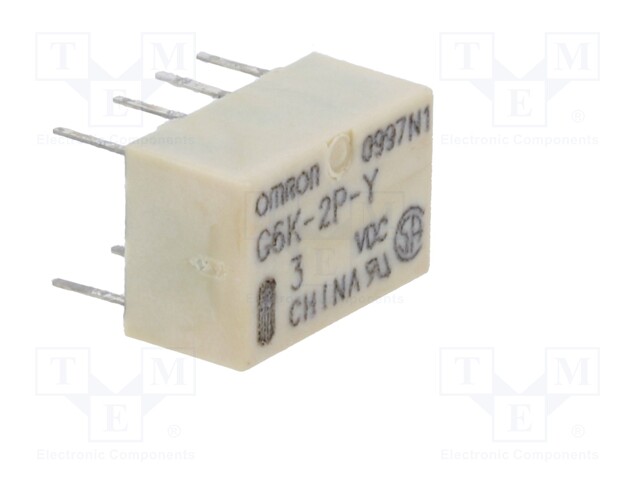

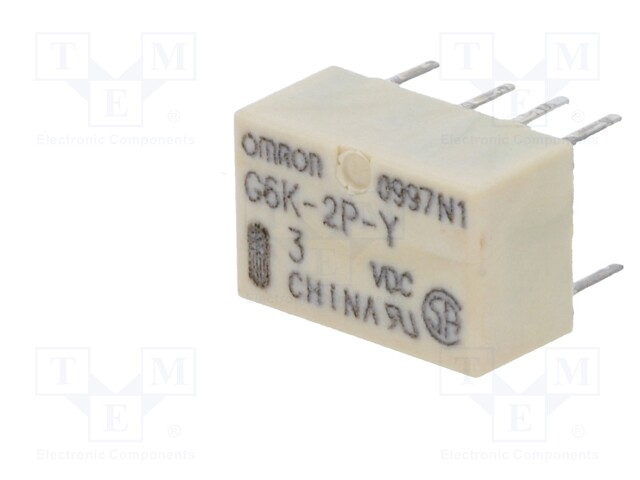

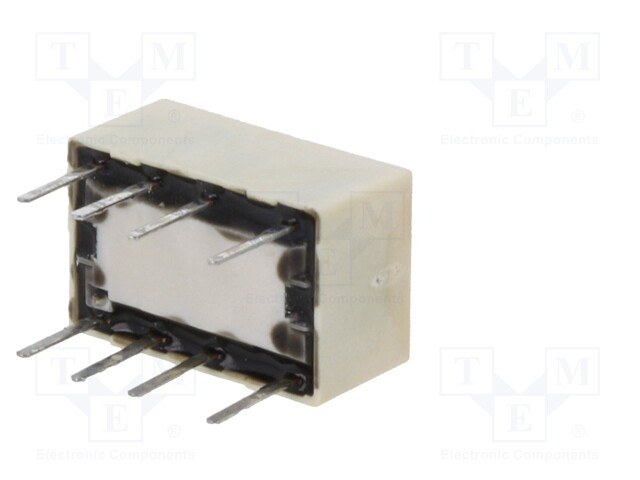

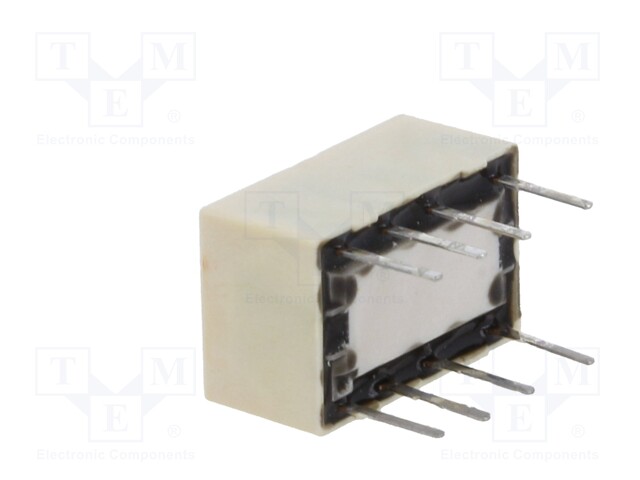

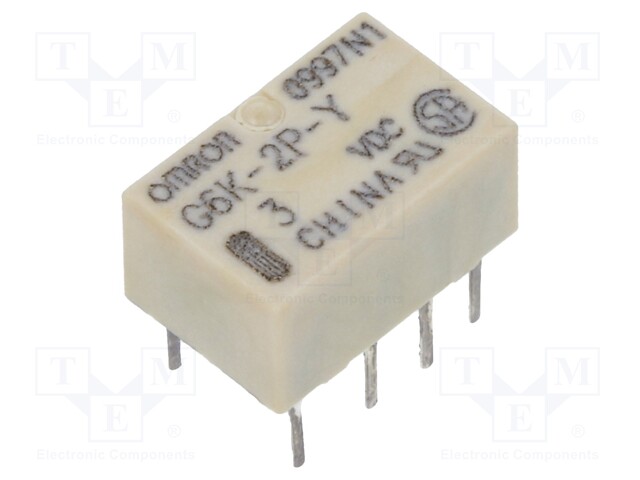

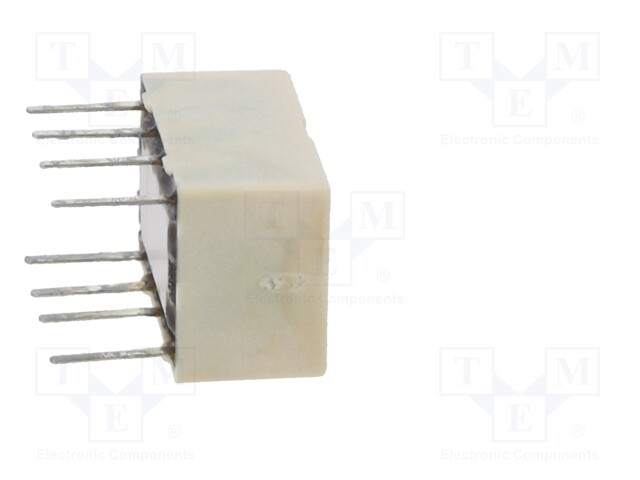

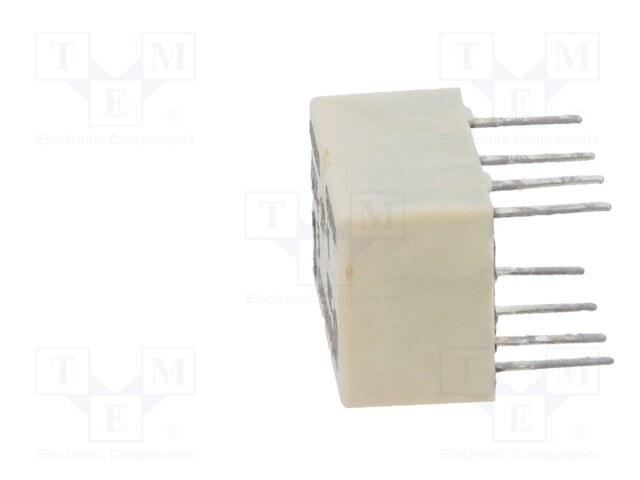

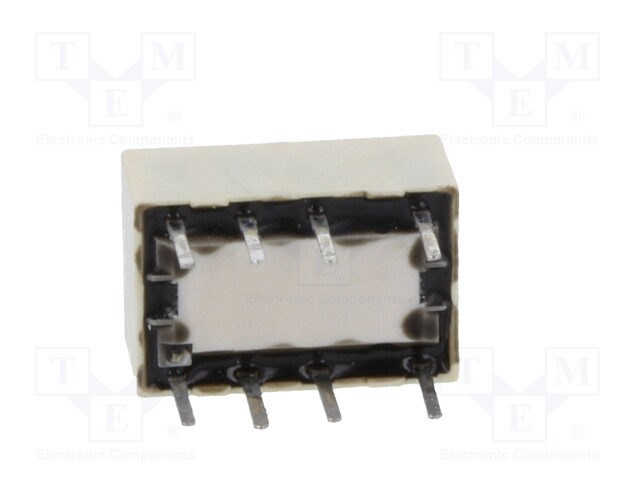

Relay: electromagnetic; DPDT; Ucoil: 3VDC; 0.3A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G6K-2P-Y DC3
    Manufacturer: OMRON OCB
    Manufacturer code: G6K-2P-Y DC3
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    5.19 € 5.19 € (wo VAT) 5.19 EUR

    5.19 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 3VDC; 0.3A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Terminal pitch 2.54mm
    Body dimensions 10x6.5x5.2mm
    Switched voltage max. 60V DC, max. 125V AC
    Coil resistance 91Ω
    Rated coil voltage 3V DC
    Contacts configuration DPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.3A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 100mW
    Operate time 3ms
    Release time 3ms
    Coil current 33mA
