Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; Icontacts max: 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G6RN-1A 6DC
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G6RN-1A 6DC
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    3.18 € 3.18 € (wo VAT) 3.18 EUR

    3.18 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 6VDC; Icontacts max: 8A

    Mounting PCB
    Operating temperature -40...85°C
    Leads for soldering
    Contact material Ag/Au

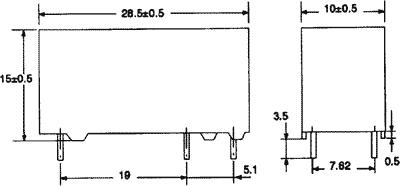

    Body dimensions 28.5x10x15mm
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 164Ω
    Rated coil voltage 6V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 220mW
    Operate time 15ms
    Release time 5ms
