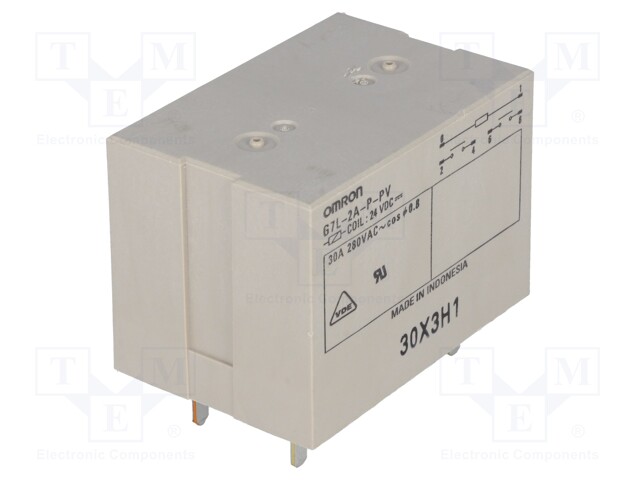

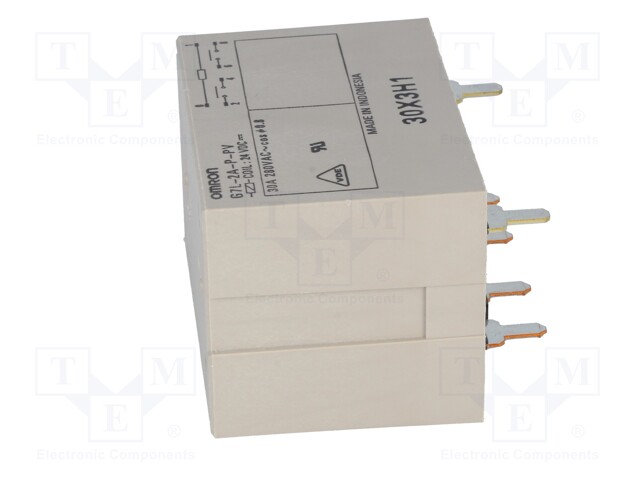

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G7L-2A-P-PV 24VDC
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G7L-2A-P-PV 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    15.83 € 15.83 € (wo VAT) 15.83 EUR

    15.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; Icontacts max: 30A

    Mounting PCB
    Operating temperature -25...85°C
    Leads for PCB

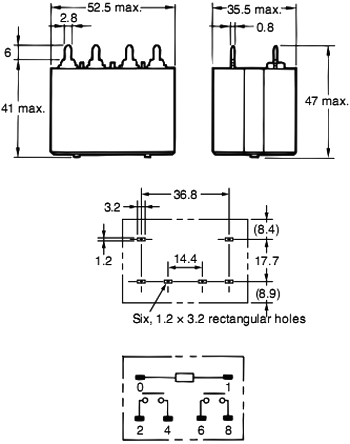

    Body dimensions 52.5x35.5x41mm
    Switched voltage max. 280V AC
    Coil resistance 250Ω
    Rated coil voltage 24V DC
    Contacts configuration DPST-NO
    Contact resistance 100MΩ
    AC contacts rating @R 30A / 280V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 2.3W
    Coil current 95.8mA
