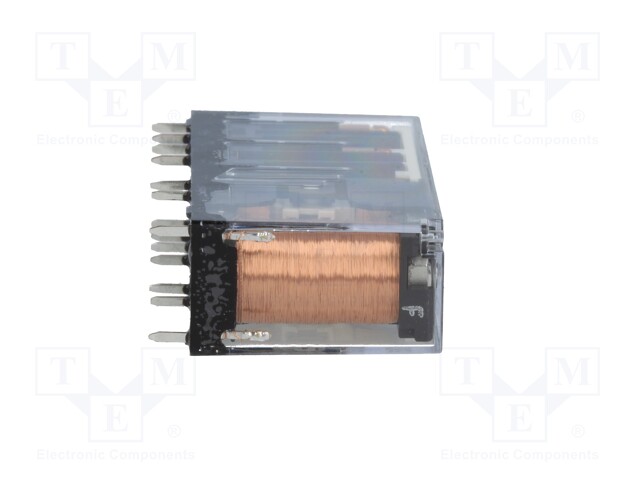

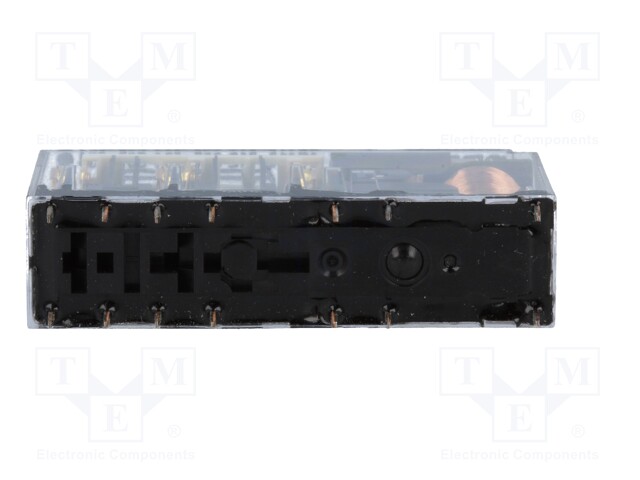

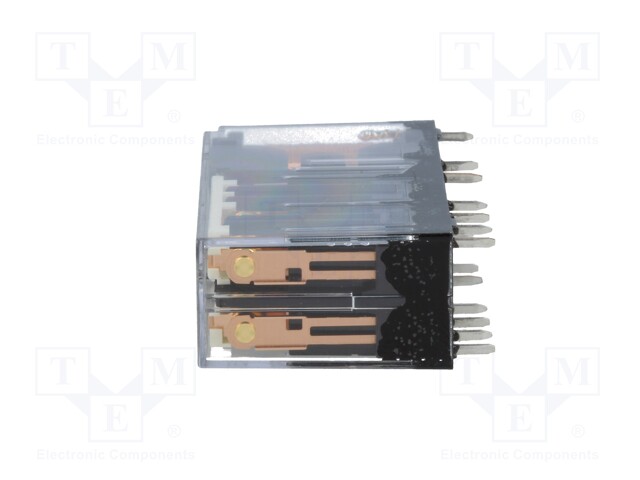

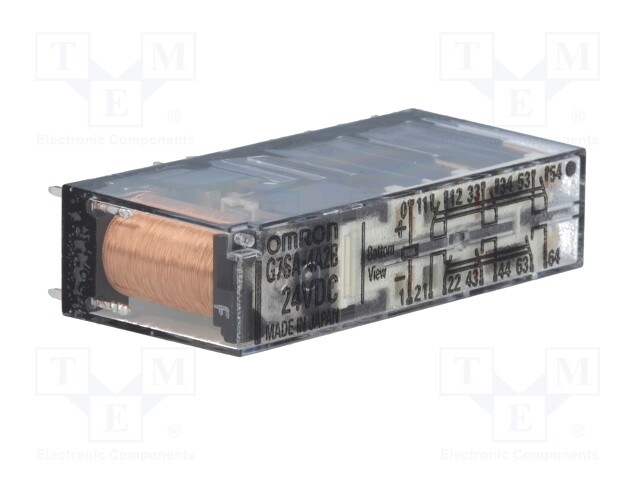

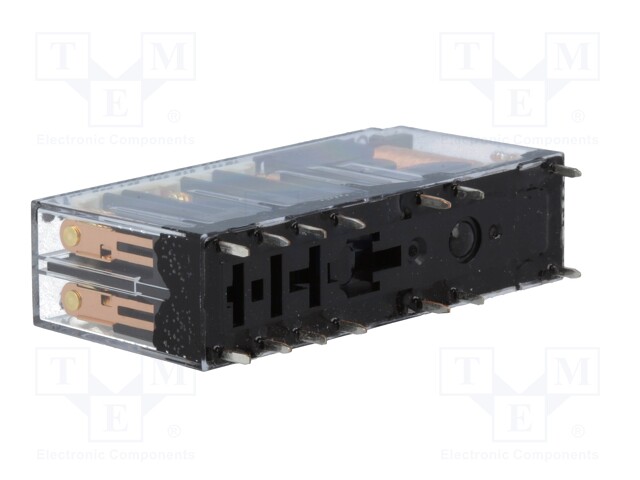

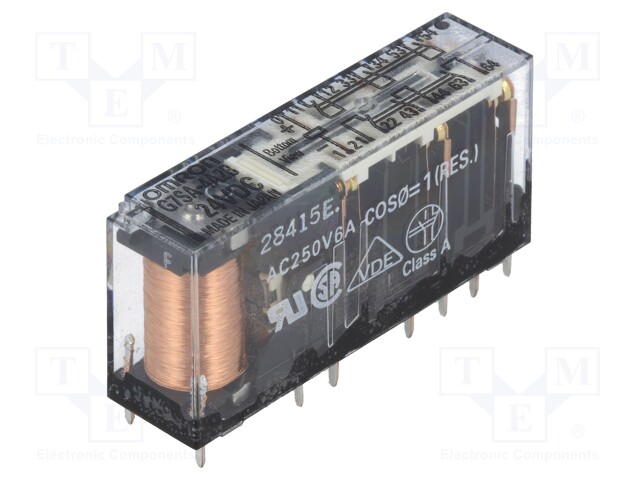

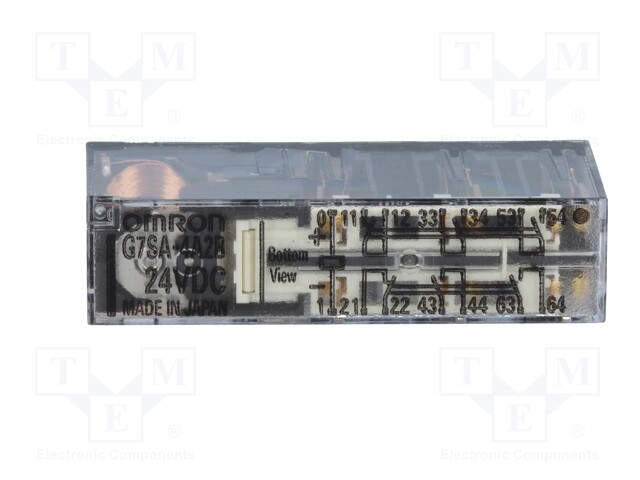

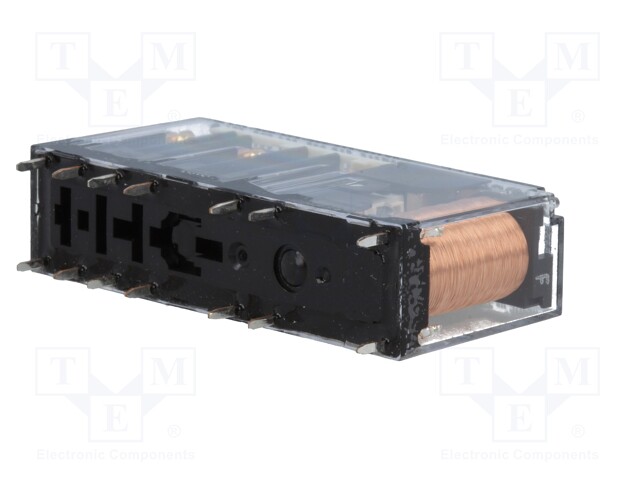

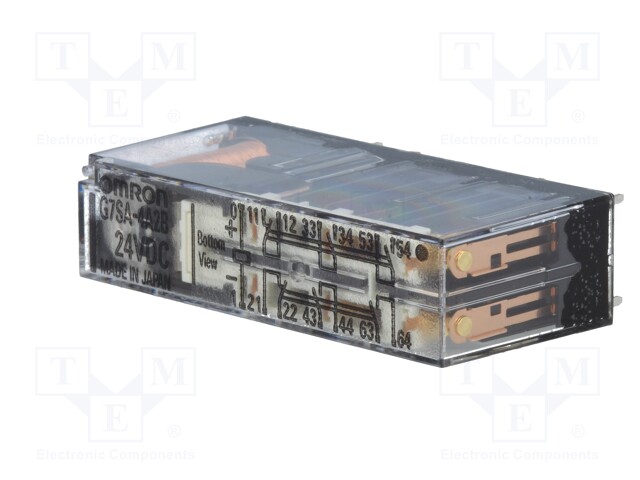

Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 24VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G7SA-4A2B 24VDC
    Manufacturer: OMRON
    Manufacturer code: G7SA-4A2B 24VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil current

    68.40 € 68.40 € (wo VAT) 68.4 EUR

    68.40 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO x4 + SPST-NC x2; Ucoil: 24VDC

    Mounting PCB, socket
    Operating temperature -40...85°C
    Terminal pitch 5.08mm

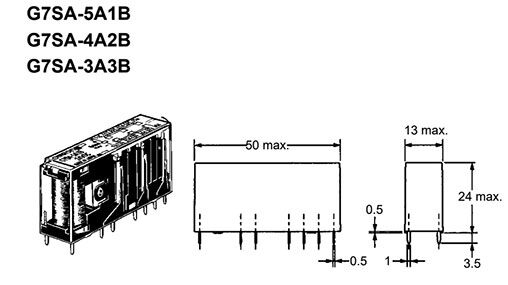

    Body dimensions 50x13x24mm
    Switched voltage max. 125V DC, max. 250V AC
    Coil resistance 1152Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO x4 + SPST-NC x2
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant safety
    Type of relay electromagnetic
    Coil current 20.8mA
