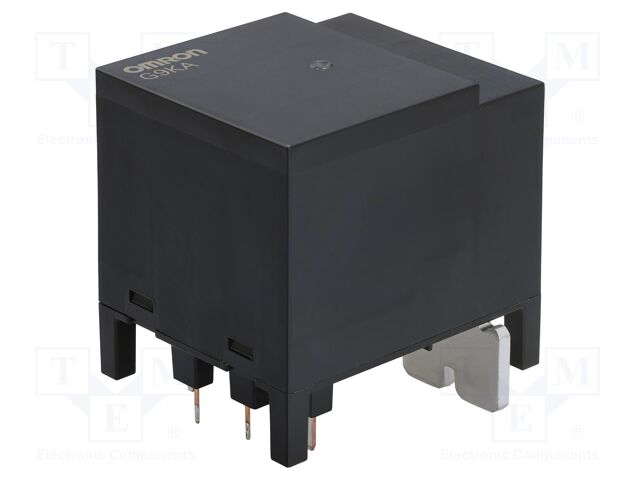

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 24VDC; G9KA; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: G9KA-1A1B-E DC24
    Manufacturer: OMRON ELECTRONIC COMPONENTS
    Manufacturer code: G9KA-1A1B-E DC24
    • Mounting
    • Operating temperature
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Relay variant
    • Type of relay
    • Coil current

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 24VDC; G9KA; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Switched voltage max. 30V DC, max. 1kV AC
    Min. insulation resistance 1GΩ
    Coil resistance 96Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO + SPST-NC
    Contact resistance 0.2mΩ
    Relay variant power
    Type of relay electromagnetic
    Coil current 250mA
