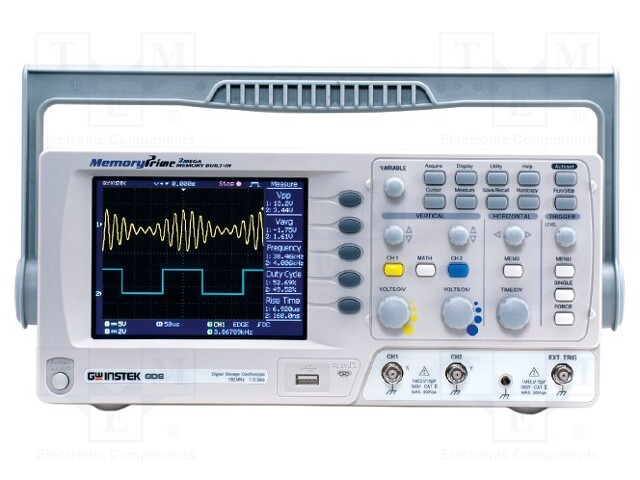

Oscilloscope: digital; Band: ≤70MHz; Channels: 2; 2Mpts; Plug: EU

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GDS-1072A-U
    Manufacturer: GW INSTEK
    Manufacturer code: GDS-1072A-U
    • Supply voltage
    • Number of channels
    • Interface
    • Dimensions
    • Kind of display used
    • Display resolution
    • Kind of output connector
    • Kind of output connector
    • Max. input voltage
    • Trigger
    • Trigger
    • Trigger
    • Trigger
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Measuring instrument features
    • Standard equipment
    • Standard equipment
    • Sampling
    • Sampling
    • Type of oscilloscope
    • Trigger modes
    • Trigger modes
    • Vertical resolution
    • Input coupling
    • Trigger coupling
    • Trigger coupling
    • Trigger coupling
    • Trigger coupling
    • Kind of oscilloscope

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Oscilloscope: digital; Band: ≤70MHz; Channels: 2; 2Mpts; Plug: EU

    Supply voltage 100...240V AC
    Number of channels 2
    Interface USB
    Dimensions 310x142x140mm
    Kind of display used color
    Display resolution 320x234
    Kind of output connector USB A socket, USB B socket
    Max. input voltage 300V
    Trigger falling-edge, impulse width, rising-edge, video signal
    Measuring instrument features automatic measurement of many parameters, AUTOSET function for setting display parameters (time base, gain), mathematical functions: addition, subtraction, multiplication and FFT, memory for 15 settings, X-Y, ROLL, MAIN operation mode
    Standard equipment mains cable, oscilloscope probe with 1:1/10:1 divider
    Sampling 1Gsps (in real time), 25Gsps (in equivalent time)
    Type of oscilloscope digital
    Trigger modes automatic, normal
    Vertical resolution 8bit
    Input coupling AC, DC, GND
    Trigger coupling AC, DC, highpass, lowpass
    Kind of oscilloscope DSO
