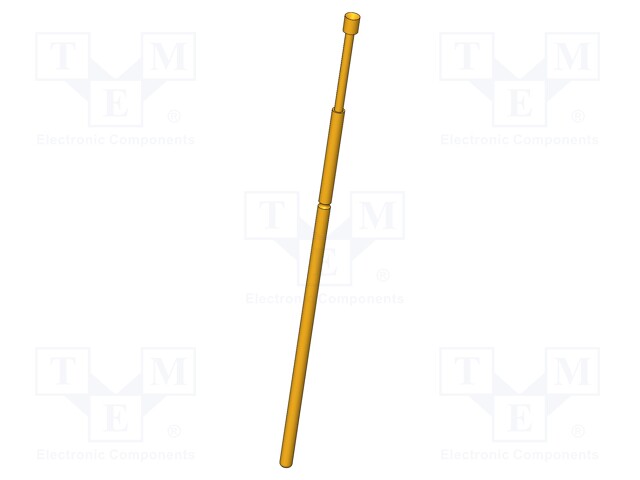

Needle-like test probe; Operational spring compression: 4mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-051 303 090 A 1000 UFL
    Manufacturer: INGUN
    Manufacturer code: GKS-051 303 090 A 1000 UFL
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    17.25 € 17.25 € (wo VAT) 17.25 EUR

    17.25 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Needle-like test probe; Operational spring compression: 4mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ

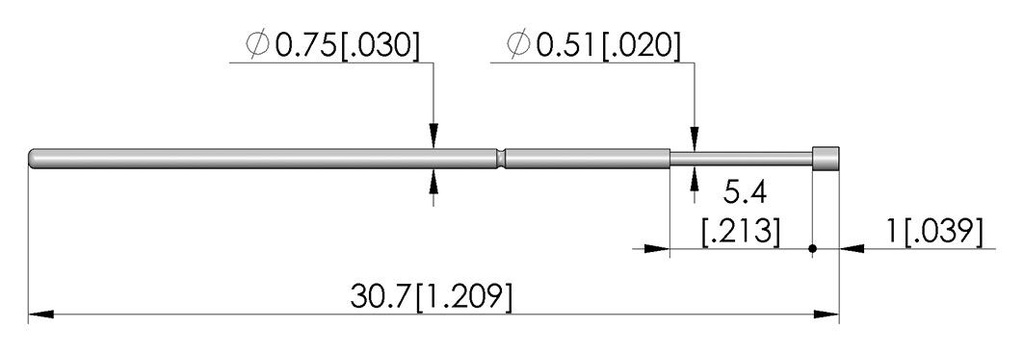

    Length 30.7mm
    Current rating 2A

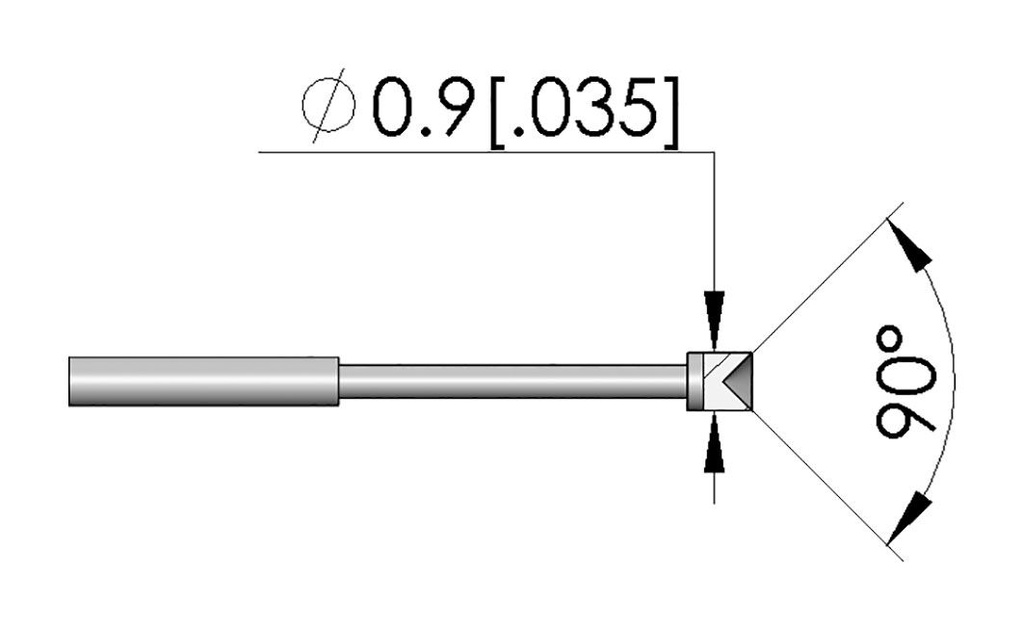

    Tip diameter 0.9mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 4.5mm
