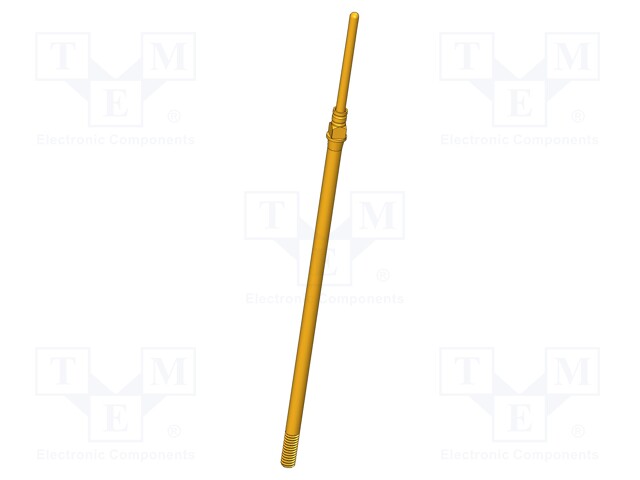

Needle-like test probe; Operational spring compression: 4.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-075 305 064 A 1502 M
    Manufacturer: INGUN
    Manufacturer code: GKS-075 305 064 A 1502 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Type of test accessories
    • Maksimum spring compression
    • Blade tip shape

    6.24 € 6.24 € (wo VAT) 6.24 EUR

    6.24 €

    This combination does not exist.

    Add to Cart

    Product downloads

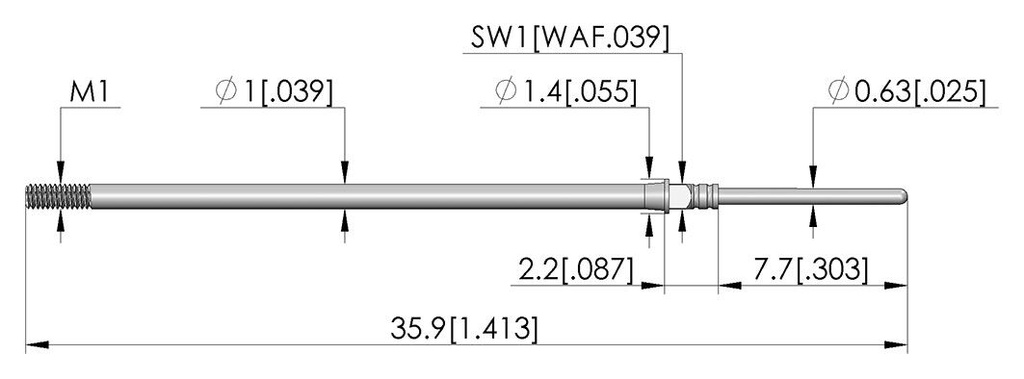

    Specification for Needle-like test probe; Operational spring compression: 4.3mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ
    Current rating 3A
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
    Blade tip shape round
