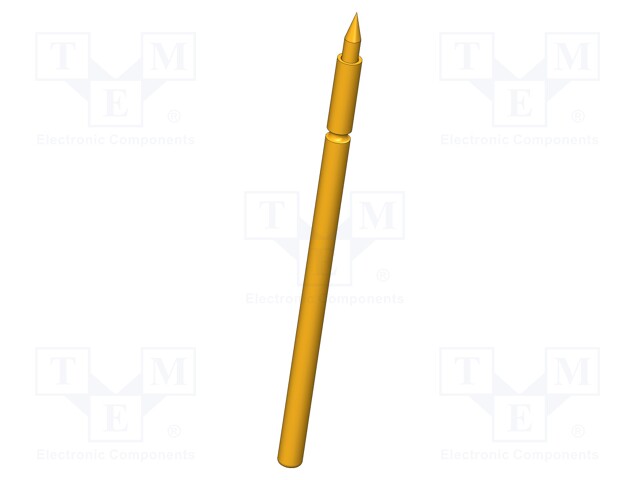

Test needle; Operational spring compression: 1mm; 3A; Ø: 460um

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-079 301 050 A 1300
    Manufacturer: INGUN
    Manufacturer code: GKS-079 301 050 A 1300
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    10.08 € 10.08 € (wo VAT) 10.08 EUR

    10.08 €

    This combination does not exist.

    Add to Cart

    Product downloads

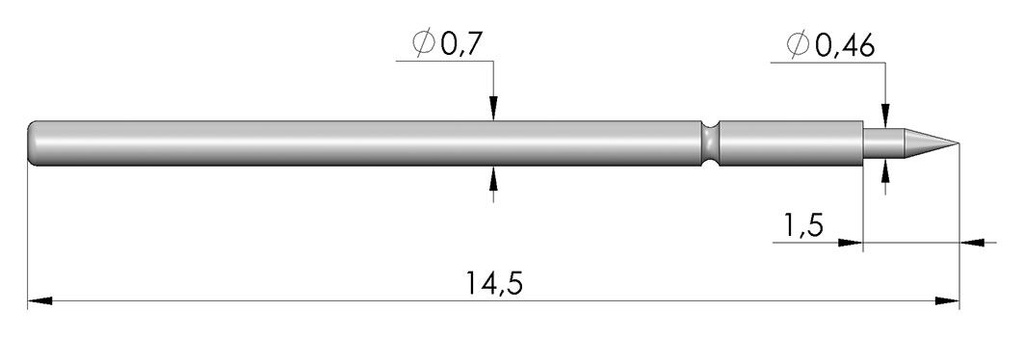

    Specification for Test needle; Operational spring compression: 1mm; 3A; Ø: 460um

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ
    Length 14.5mm
    Current rating 3A
    Type of test accessories test probe
    Operational spring compression 1mm
    Maksimum spring compression 1.2mm

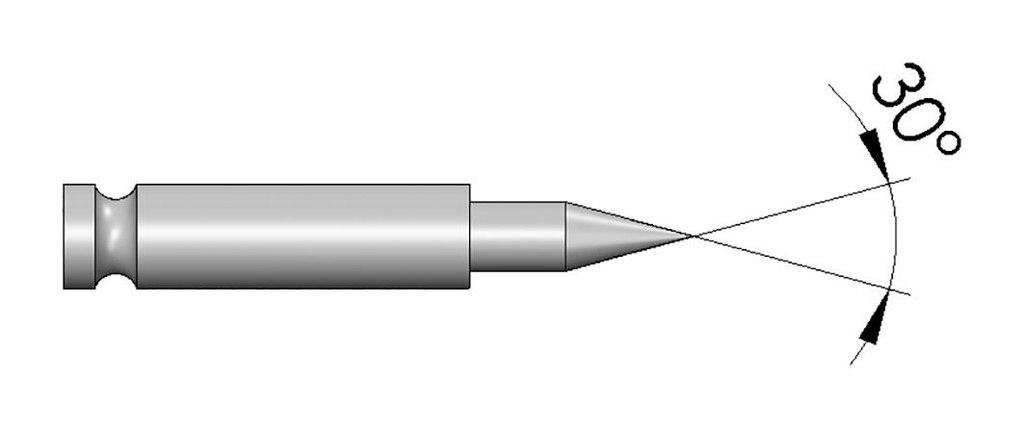

    Blade tip shape sharp
