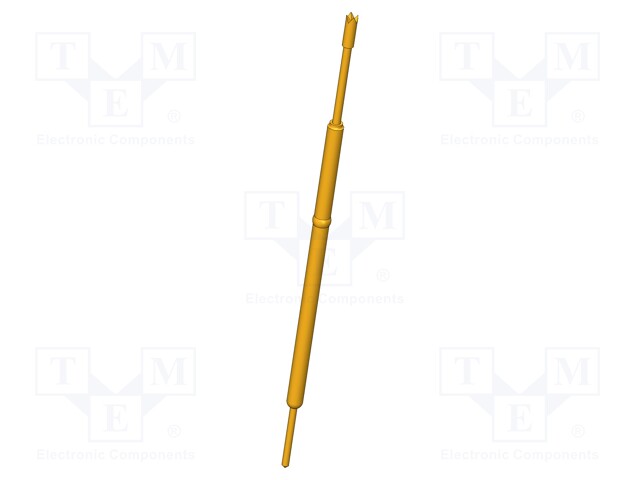

Needle-like test probe; Operational spring compression: 3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-080 304 050 A 0805
    Manufacturer: INGUN
    Manufacturer code: GKS-080 304 050 A 0805
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories

    12.24 € 12.24 € (wo VAT) 12.24 EUR

    12.24 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Needle-like test probe; Operational spring compression: 3mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ

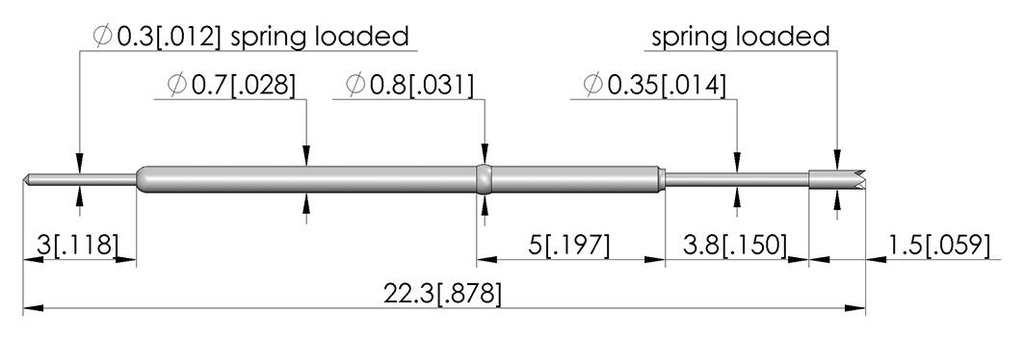

    Length 22.3mm
    Current rating 3A

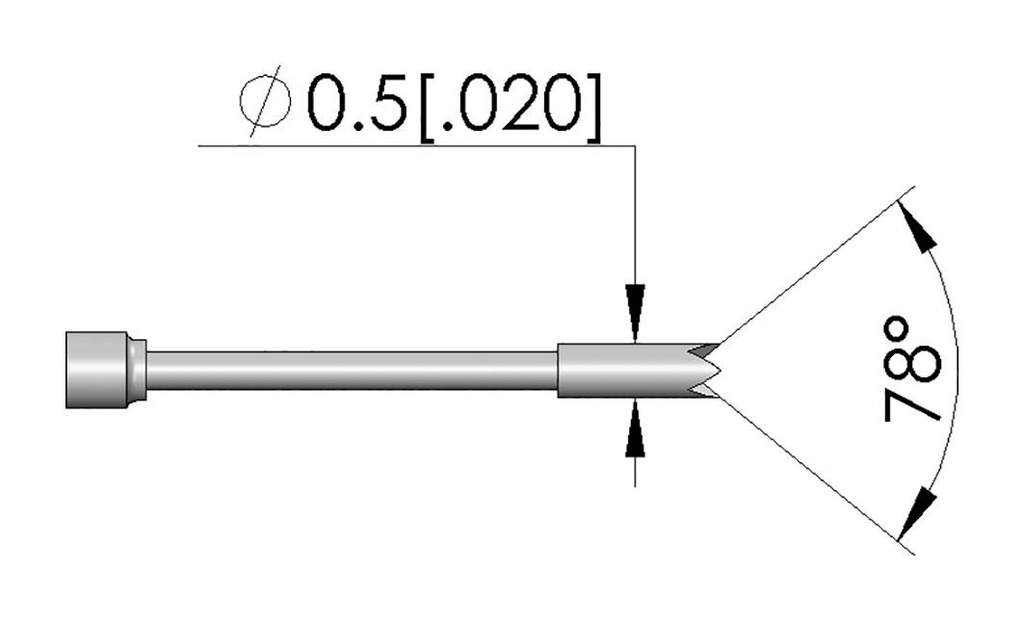

    Tip diameter 0.5mm
    Type of test accessories test probe
