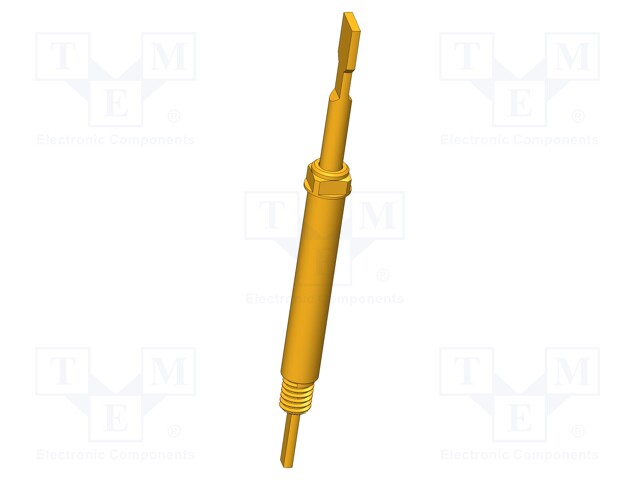

Needle-like test probe; Operational spring compression: 4mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-098 329 300 070 A 3002 ML
    Manufacturer: INGUN
    Manufacturer code: GKS-098 329 300 070 A 3002 ML
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape
    • Blade tip shape

    27.16 € 27.16 € (wo VAT) 27.16 EUR

    27.16 €

    This combination does not exist.

    Add to Cart

    Product downloads

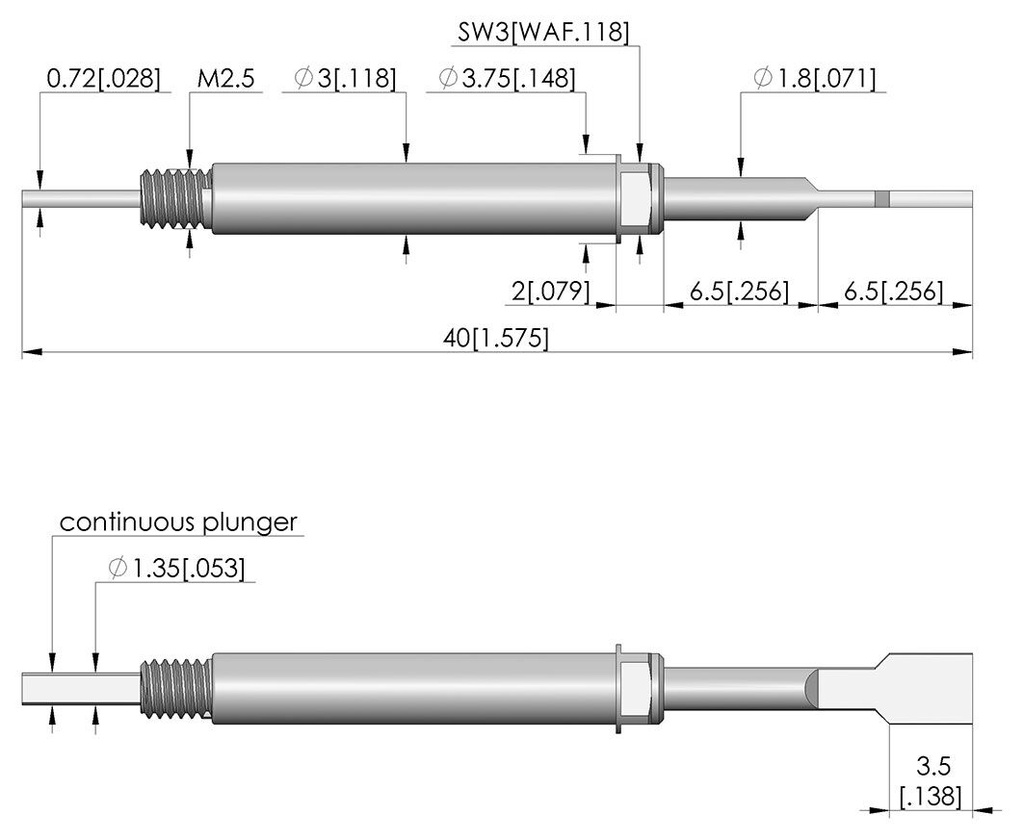

    Specification for Needle-like test probe; Operational spring compression: 4mm

    Mounting screw-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 100mΩ
    Length 40mm
    Current rating 10A
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm

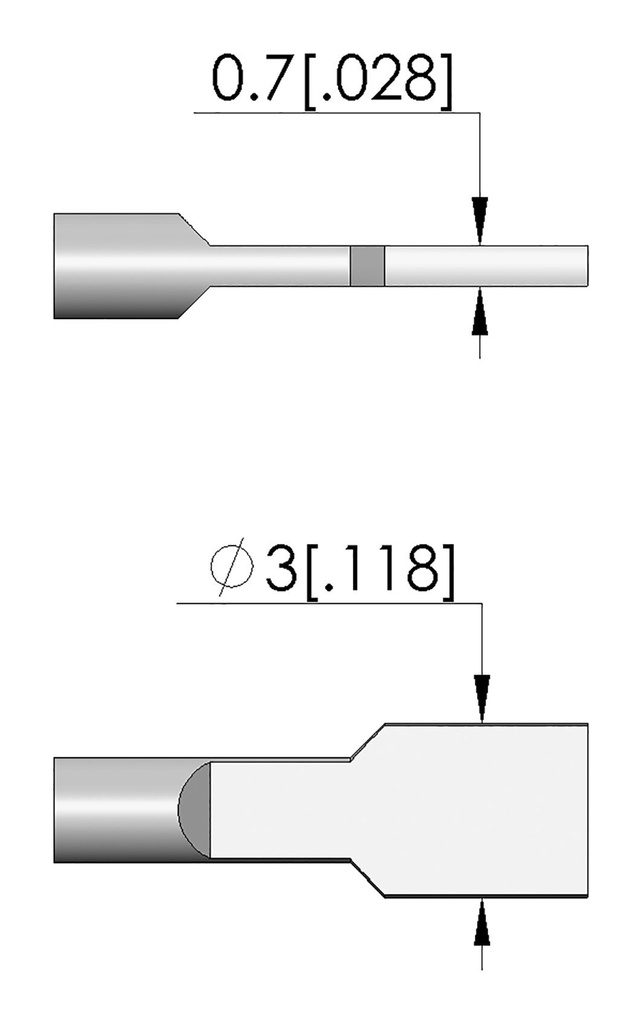

    Blade tip shape flat, shovel
