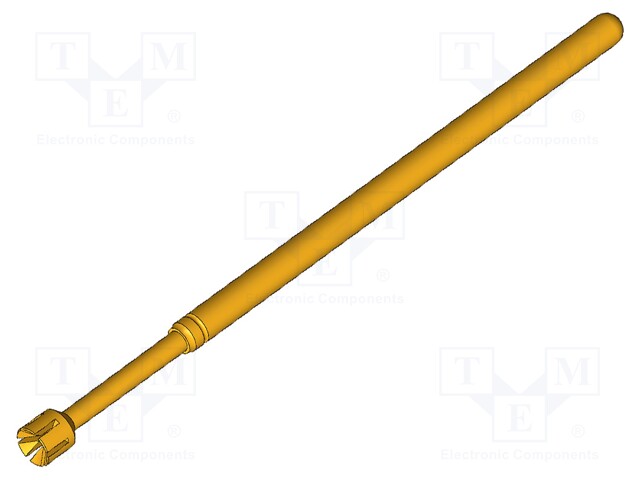

Test needle; Operational spring compression: 4.3mm; 8A; Ø: 1.8mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-100-1021
    Manufacturer: INGUN
    Manufacturer code: GKS-100 319 180 A 3000
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    6.72 € 6.72 € (wo VAT) 6.72 EUR

    6.72 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4.3mm; 8A; Ø: 1.8mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 20mΩ

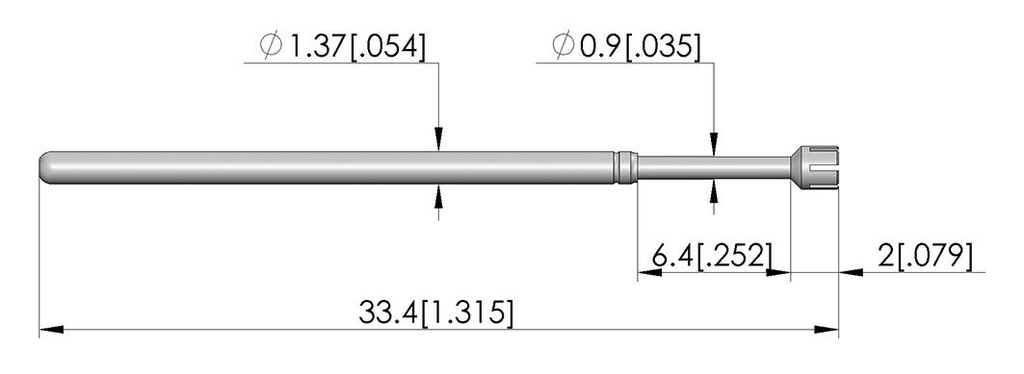

    Length 33.4mm
    Current rating 8A

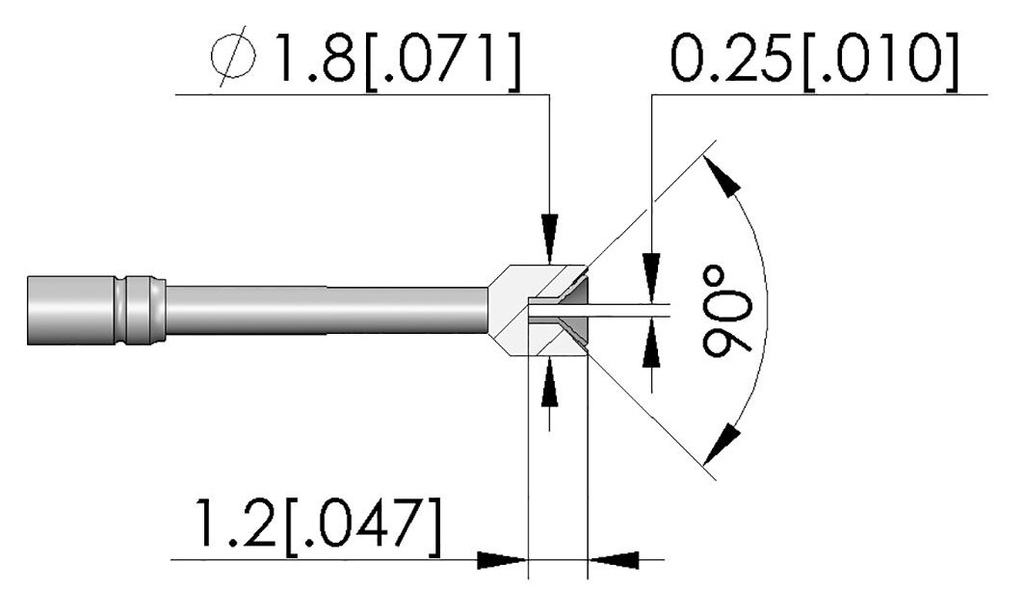

    Tip diameter 1.8mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
