Test needle; Operational spring compression: 4mm; 8A; Ø: 1.5mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-112 306 150 R 5010 M
    Manufacturer: INGUN
    Manufacturer code: GKS-112 306 150 R 5010 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

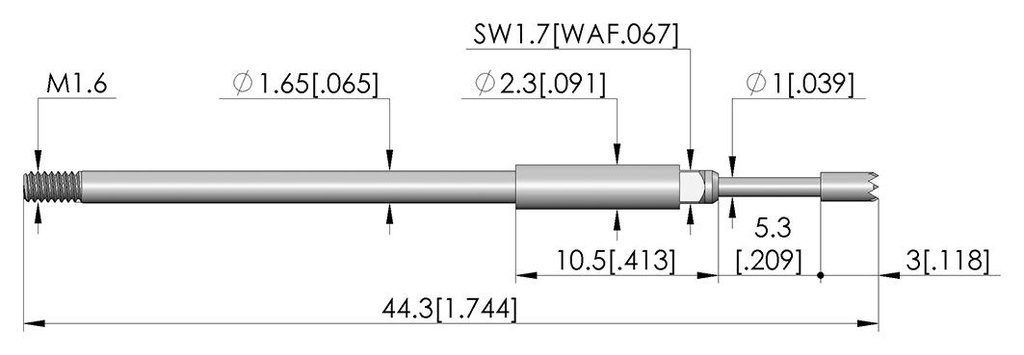

    Specification for Test needle; Operational spring compression: 4mm; 8A; Ø: 1.5mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating rhodium plated
    Contact material CuBe
    Max. contact resistance: 20mΩ
    Current rating 8A

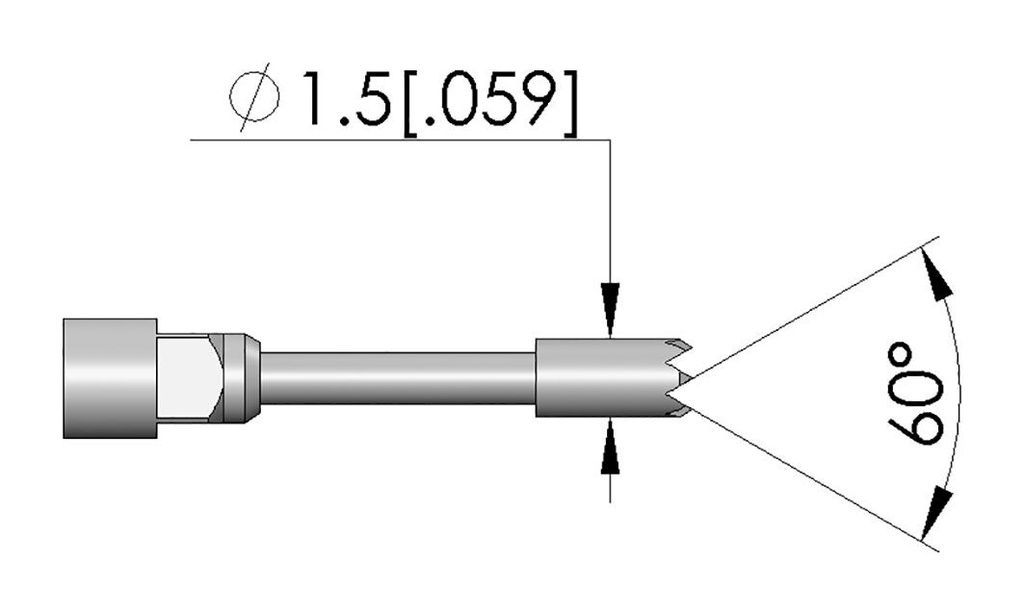

    Tip diameter 1.5mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5.3mm
