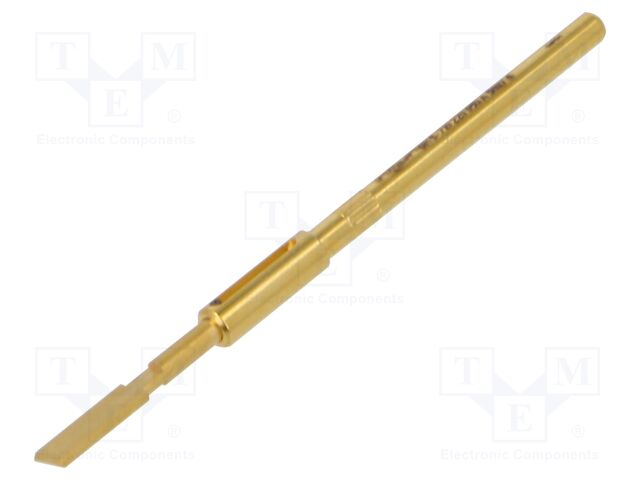

Test needle; Spring compression: 4mm; 5mm; 5A; steel; gold-plated

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-710 220 050 A 5007 S
    Manufacturer: INGUN
    Manufacturer code: GKS-710 220 050 A 5007 S
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Specification for Test needle; Spring compression: 4mm; 5mm; 5A; steel; gold-plated

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance: 30mΩ
    Length 38.1mm
    Current rating 5A
    Tip diameter 2mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm
    Blade tip shape flat
