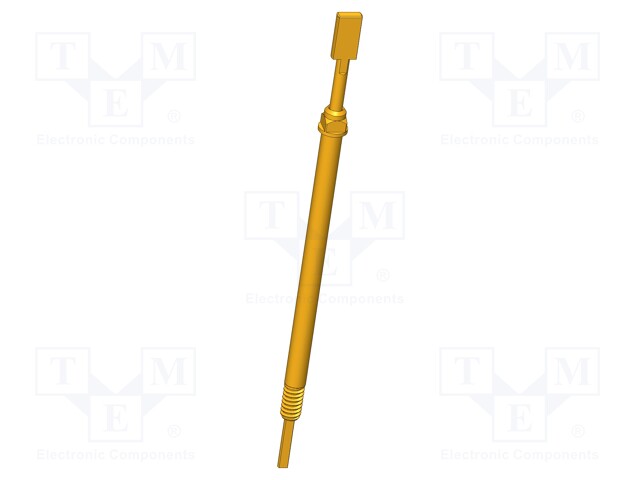

Test needle; Operational spring compression: 4mm; Contacts: CuBe

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-746 320 200 080 A 3002 M
    Manufacturer: INGUN
    Manufacturer code: GKS-746 320 200 080 A 3002 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Blade tip shape

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4mm; Contacts: CuBe

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 30mΩ
    Tip diameter 2mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Blade tip shape shovel
