Test needle; Operational spring compression: 1mm; 8A; Ø: 1.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GKS-967 304 130 A 2001 G
    Manufacturer: INGUN
    Manufacturer code: GKS-967 304 130 A 2001 G
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

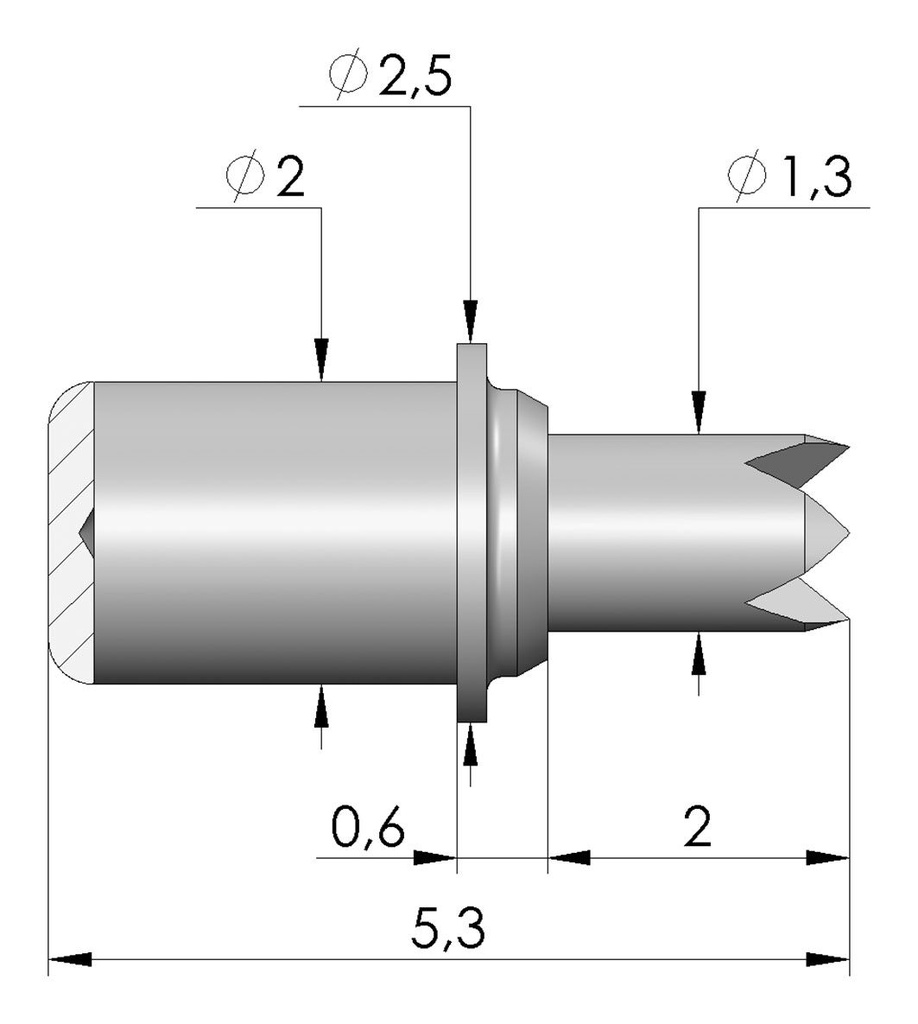

    Specification for Test needle; Operational spring compression: 1mm; 8A; Ø: 1.3mm

    Mounting push-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 100mΩ
    Length 5.3mm
    Current rating 8A
    Tip diameter 1.3mm
    Type of test accessories test probe
    Operational spring compression 1mm
    Maksimum spring compression 1.2mm
