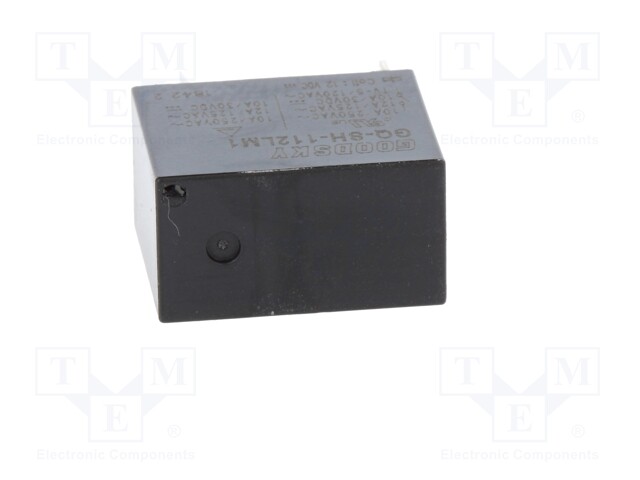

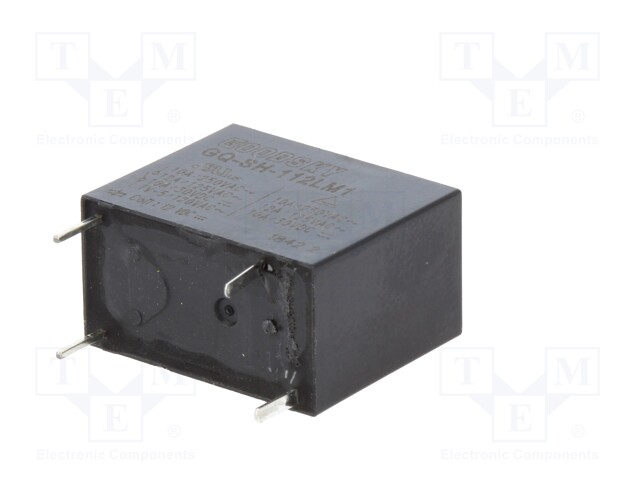

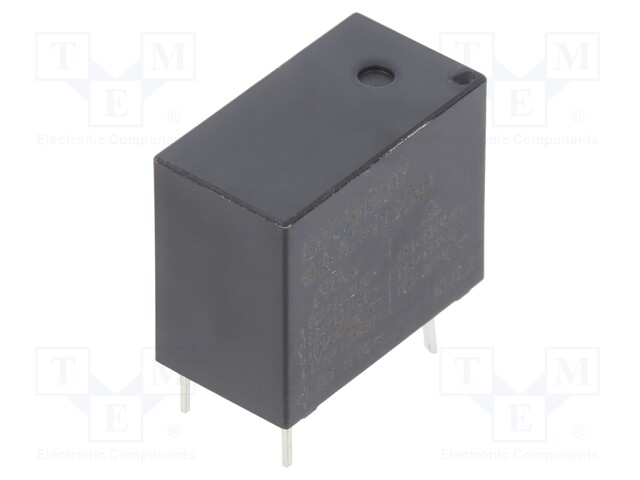

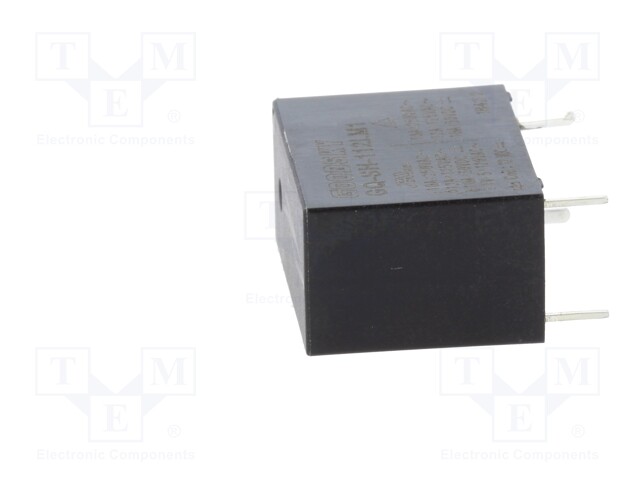

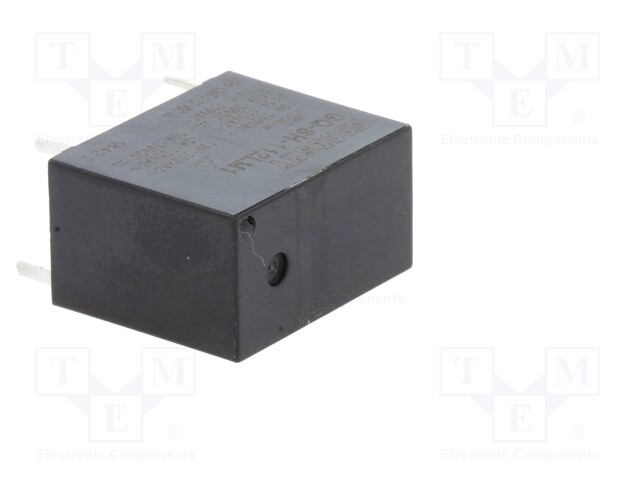

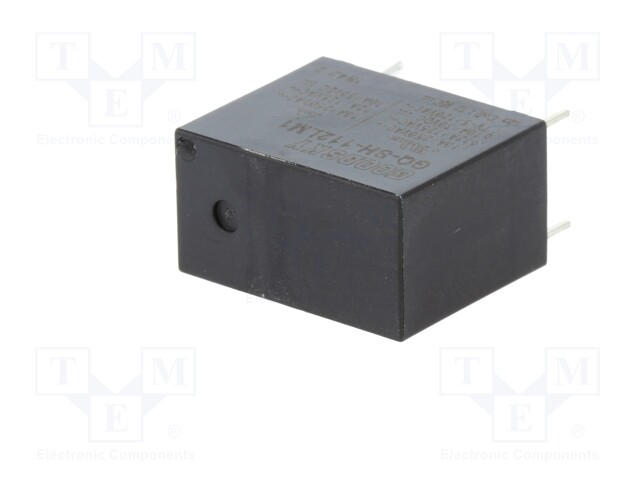

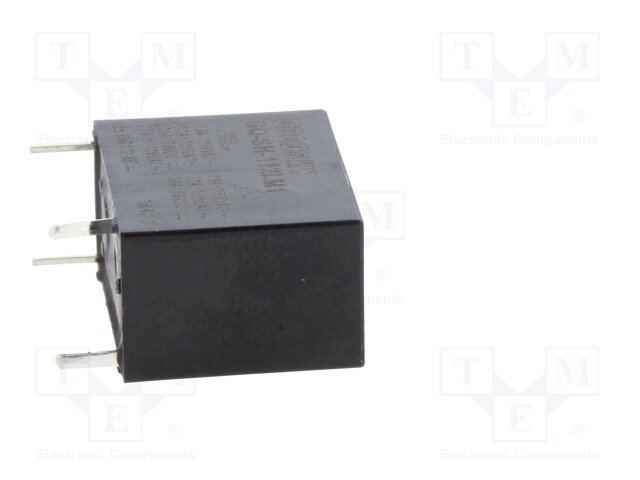

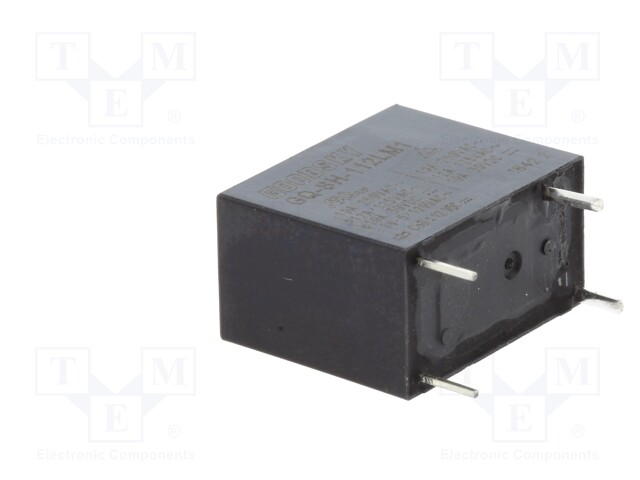

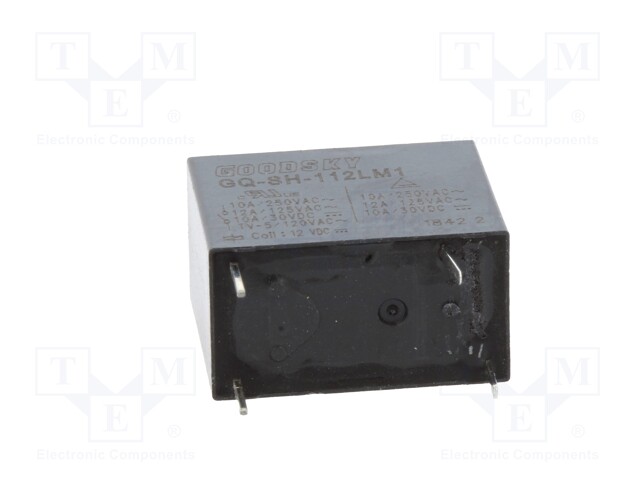

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 200mW

    Multiples: 1.0
    Minimum quantity: 2.0
    Product code: GQ-SH-112LM1
    Manufacturer: GOODSKY
    Manufacturer code: GQ-SH-112LM1
    • Mounting
    • Operating temperature
    • Number of pins
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    1.41 € 1.41 € (wo VAT) 1.41 EUR

    1.41 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC; 200mW

    Mounting PCB
    Operating temperature -40...85°C
    Number of pins 4

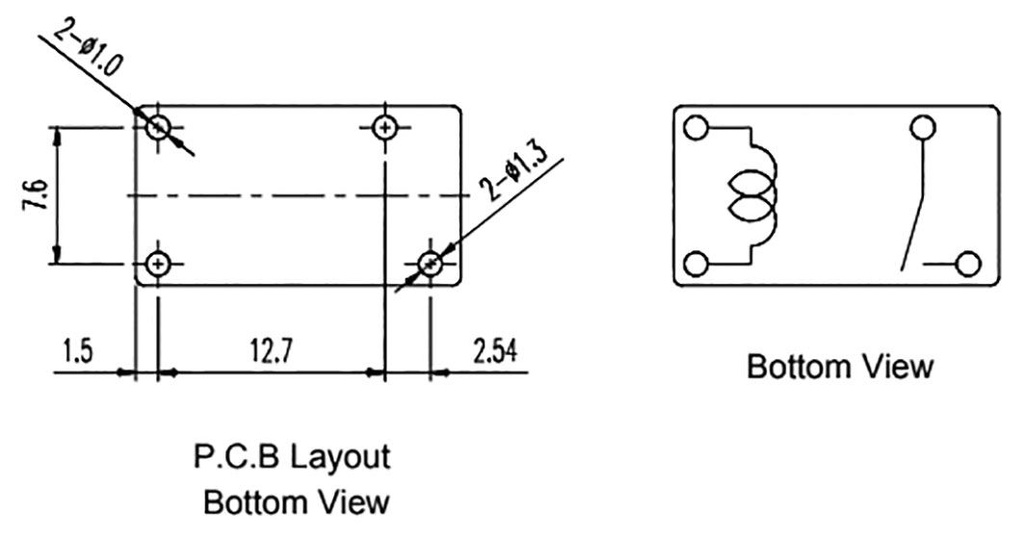

    Terminal pitch 2.54mm
    Body dimensions 18.2x10x14.9mm
    Mechanical durability 10000000cycles
    Switched voltage max. 30V DC, max. 250V AC
    Electrical life 100000cycles
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 12A
    Relay variant miniature
    Coil voltage max. 13.2V DC
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 5ms
    Coil current 16.7mA
