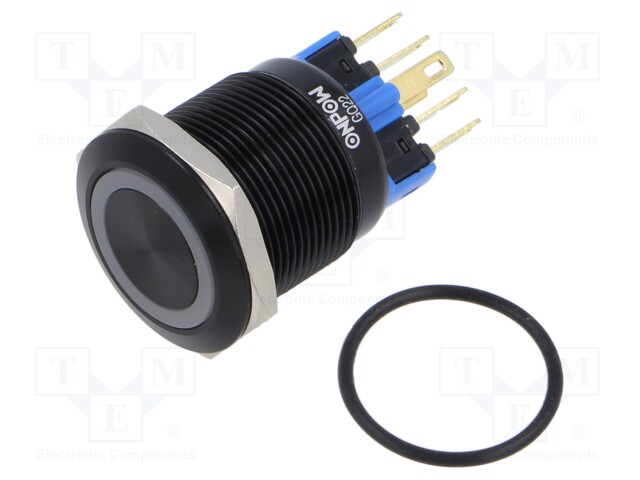

Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GQ22-11ZE/R/24/A
    Manufacturer: ONPOW
    Manufacturer code: GQ22-11ZE/R/24/A
    • Operating temperature
    • IP rating
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance:
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Backlight colour
    • Illumination
    • Illumination
    • Electrical life
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Button shape
    • Illumination voltage
    • Ring shape

    13.02 € 13.02 € (wo VAT) 13.02 EUR

    13.02 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: vandal resistant; Pos: 2; SPST-NO + SPST-NC; 3A/220VAC

    Operating temperature -25...55°C
    IP rating IP65
    Type of switch vandal resistant
    Number of positions 2
    Leads for soldering
    Contact material silver alloy
    Max. contact resistance: 50mΩ
    Body material aluminium
    Mounting hole diameter Ø22mm
    Body colour black
    Mechanical durability 1000000cycles
    Backlight colour red
    Illumination LED, ring
    Electrical life 50000cycles
    Test voltage 1.5kV
    Contacts configuration SPST-NO + SPST-NC
    DC contacts rating @R 5A / 24V DC
    AC contacts rating @R 3A / 220V AC
    Switching method ON-ON
    Stable positions number 2
    Button shape flat
    Illumination voltage 24V
    Ring shape rounded
