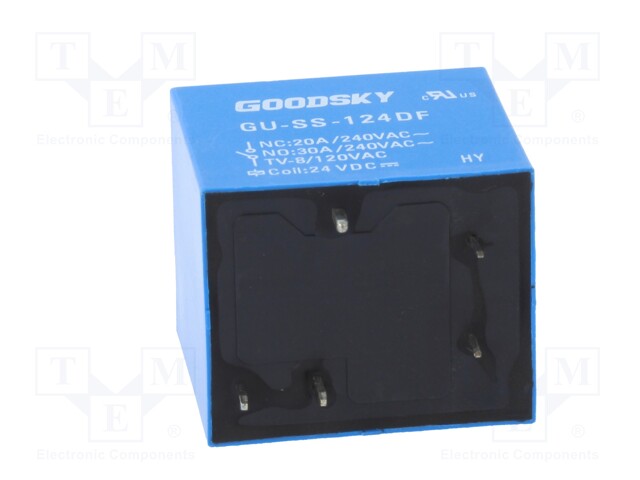

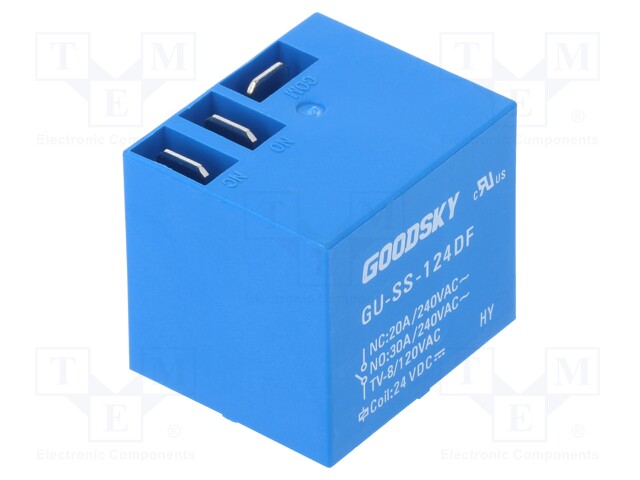

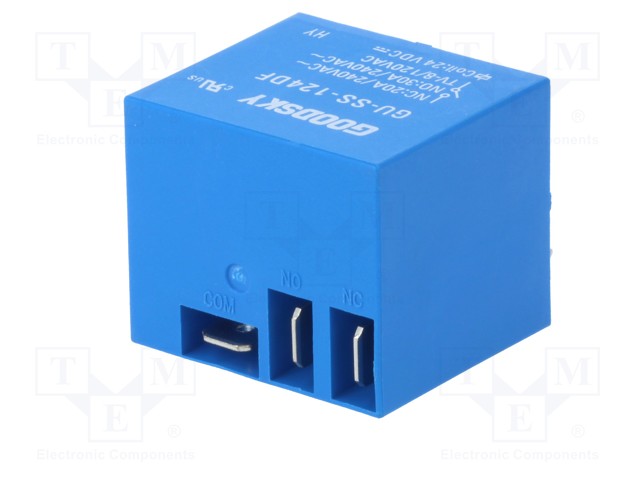

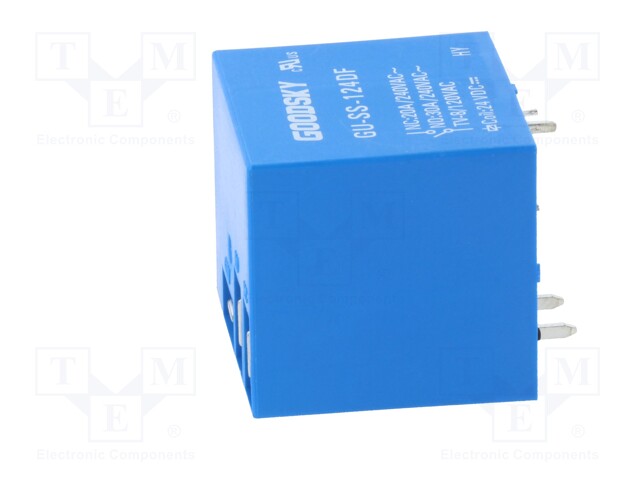

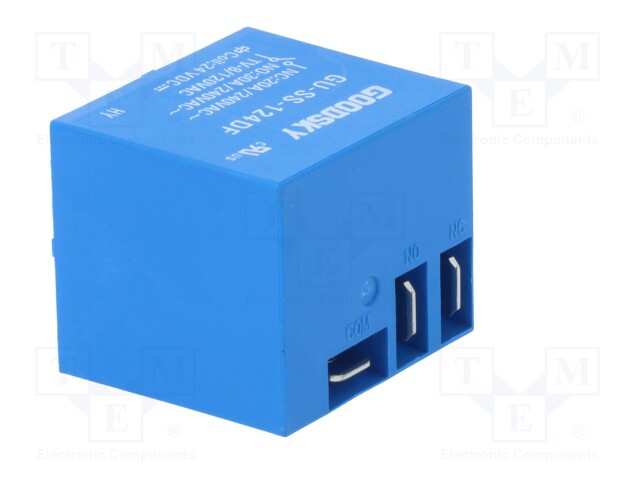

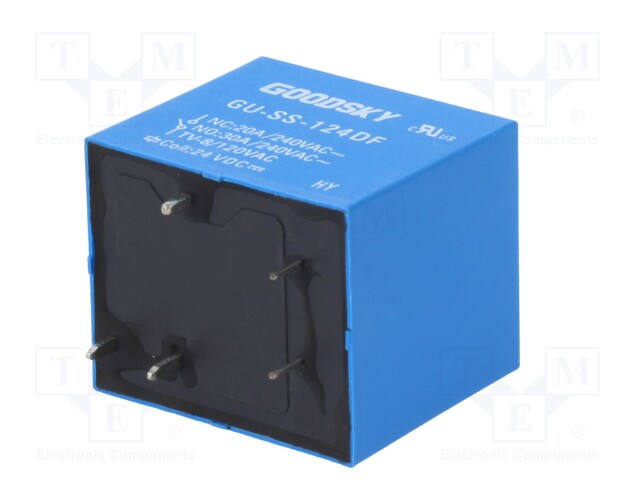

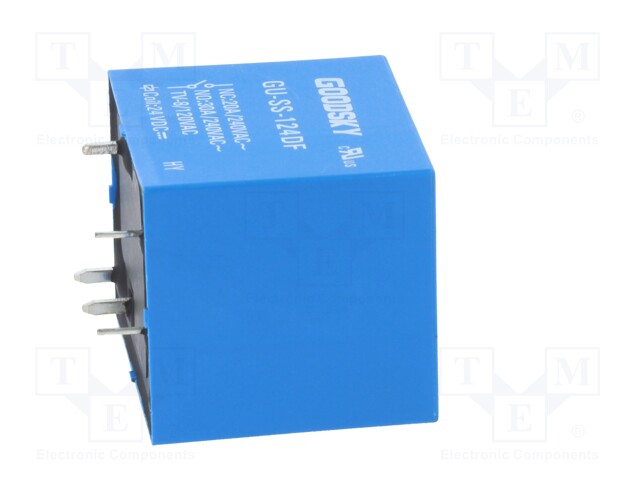

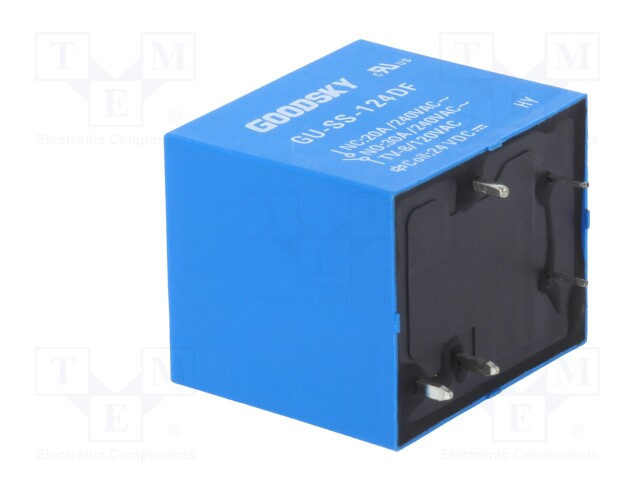

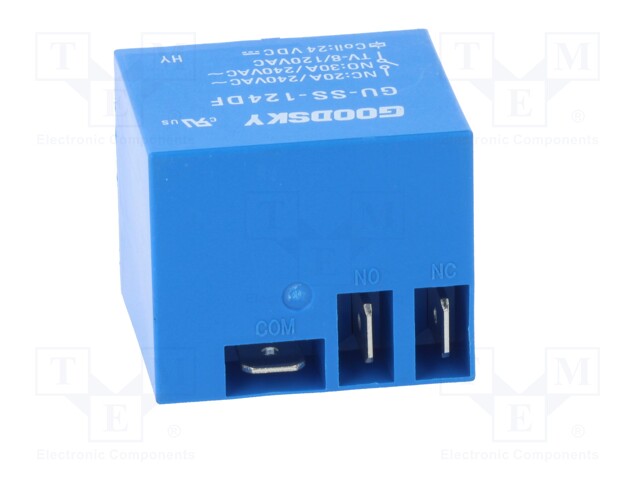

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 30A; Mounting: PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: GU-SS-124DF
    Manufacturer: GOODSKY
    Manufacturer code: GU-SS-124DF
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    2.39 € 2.39 € (wo VAT) 2.39 EUR

    2.39 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 30A; Mounting: PCB

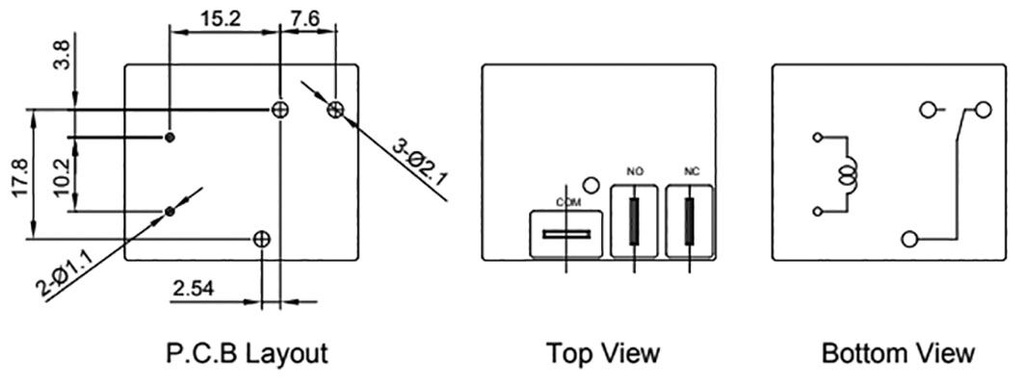

    Mounting PCB
    Operating temperature -25...55°C

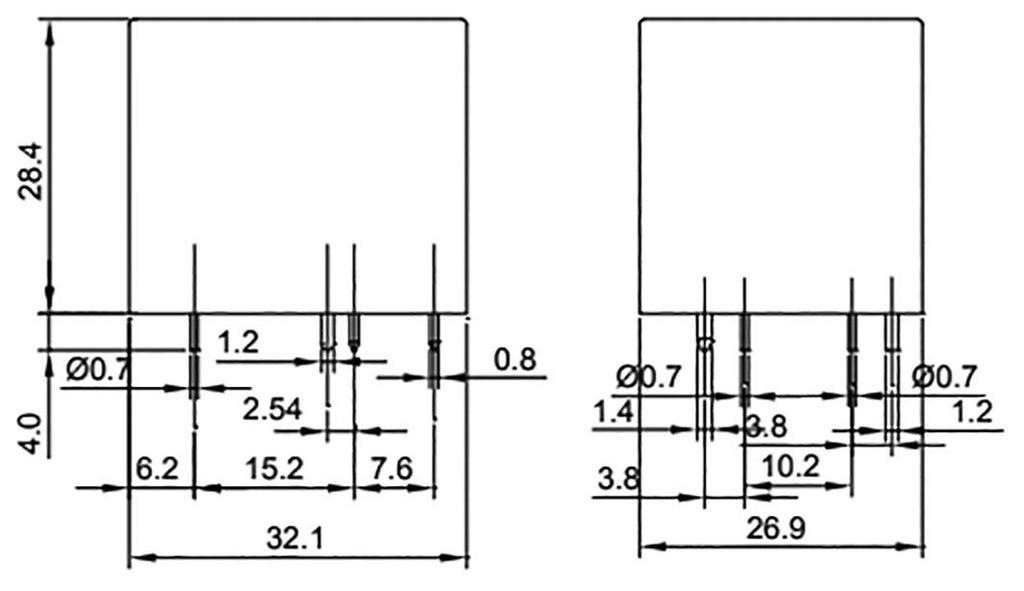

    Body dimensions 32.1x26.9x28.4mm
    Switched voltage max. 240V AC
    Coil resistance 660Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 20A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 30A / 240V AC
    Contact current max. 30A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 930mW
    Operate time 15ms
    Release time 10ms
