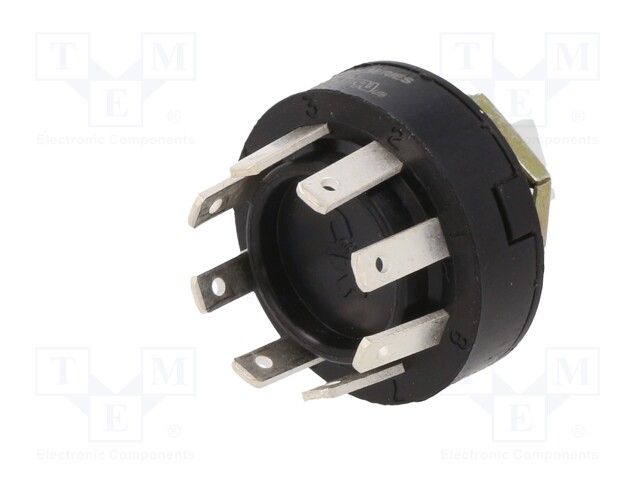

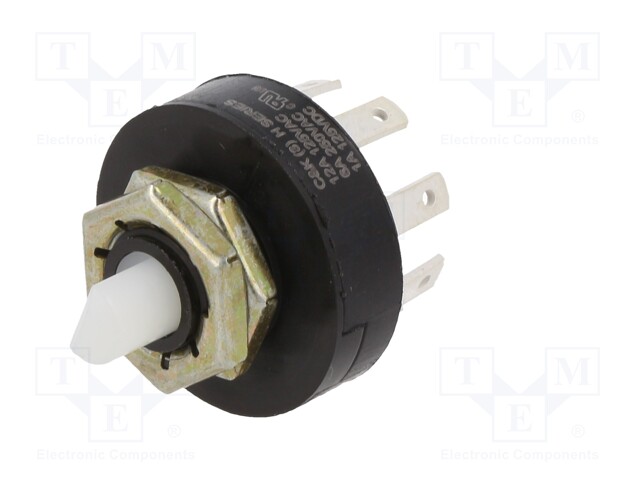

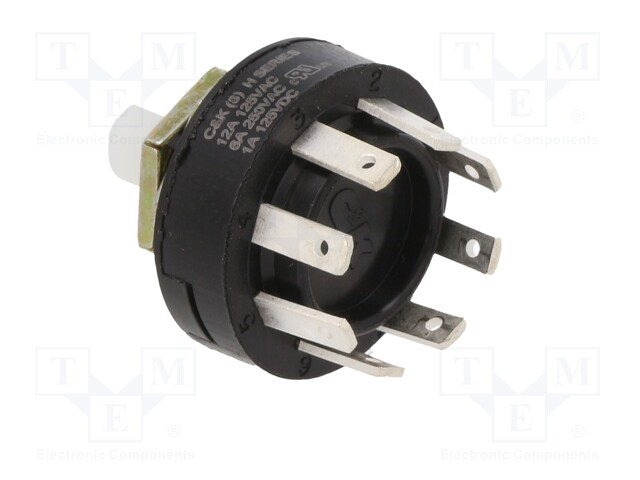

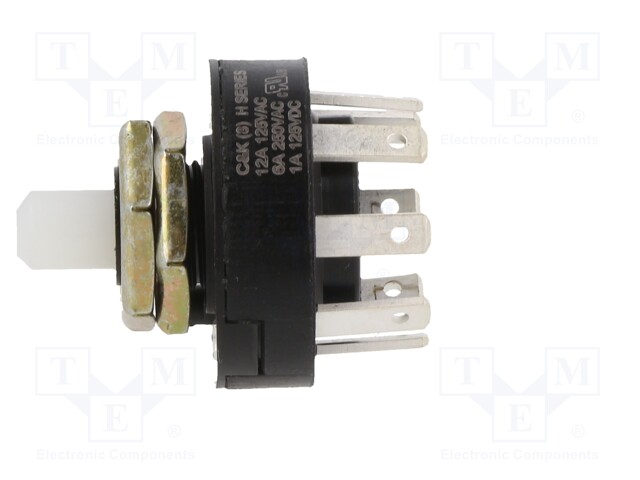

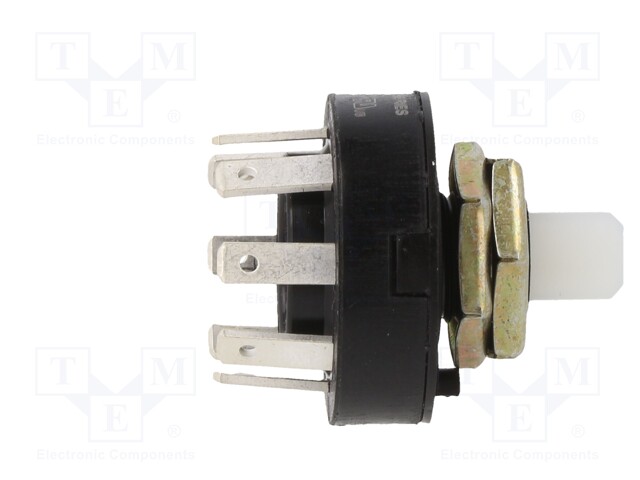

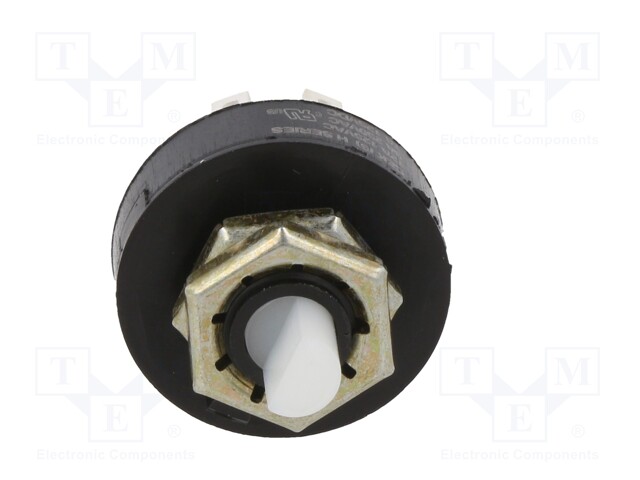

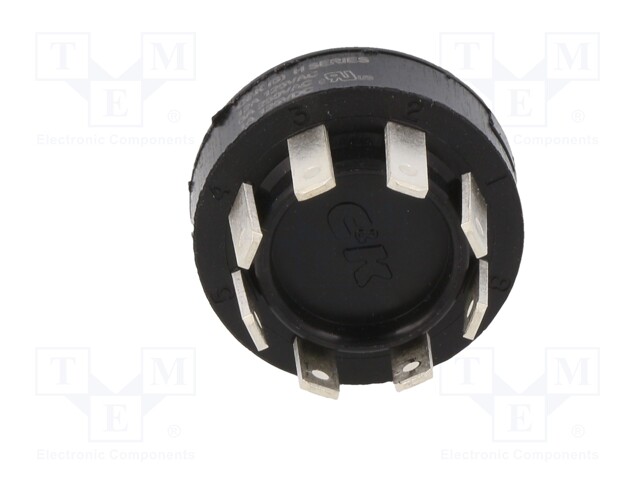

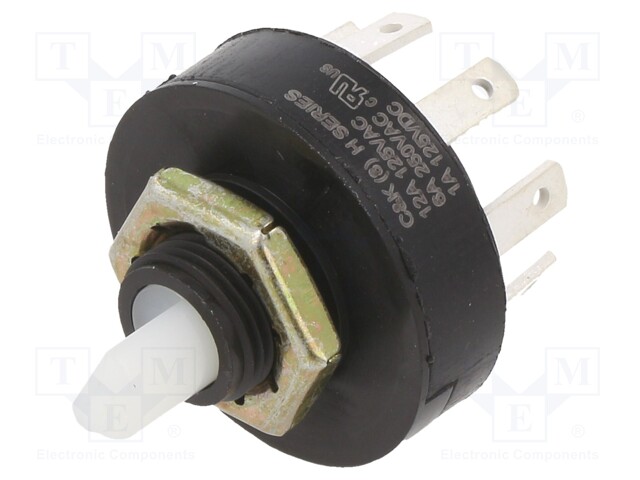

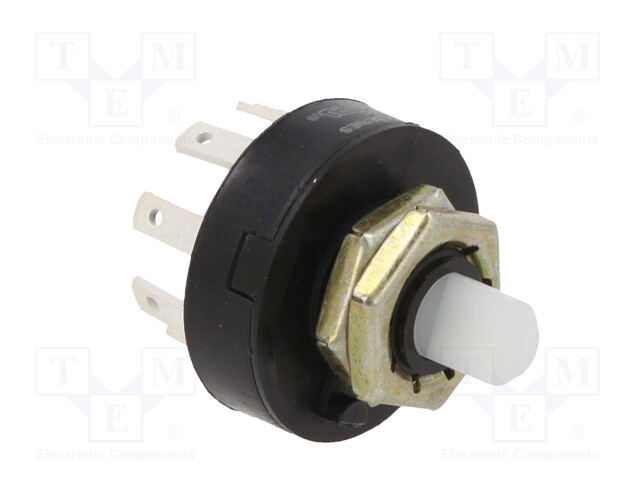

Switch: rotary; Pos: 3; DP3T; 6A/250VAC; 1A/125VDC; Poles number: 2

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: H20307RR05Q
    Manufacturer: C&K
    Manufacturer code: H20307RR05Q
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Fastening thread
    • Contact material
    • Body dimensions
    • Min. insulation resistance
    • Electrical life
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Stable positions number
    • Indexed positions

    8.16 € 8.16 € (wo VAT) 8.16 EUR

    8.16 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Switch: rotary; Pos: 3; DP3T; 6A/250VAC; 1A/125VDC; Poles number: 2

    Operating temperature -30...95°C
    Type of switch rotary
    Contact plating silver plated
    Number of positions 3
    Leads for soldering
    Fastening thread 3/8"x32UNEF
    Contact material copper
    Body dimensions Ø23.62x6.99mm
    Min. insulation resistance 1GΩ
    Electrical life 10000cycles
    Shaft length 7.29mm
    Shaft diameter 6.35mm
    Shaft surface D spring
    Poles number 2
    Contacts configuration DP3T
    DC contacts rating @R 1A / 125V DC
    AC contacts rating @R 6A / 250V AC
    Stable positions number 3
    Indexed positions 45°
