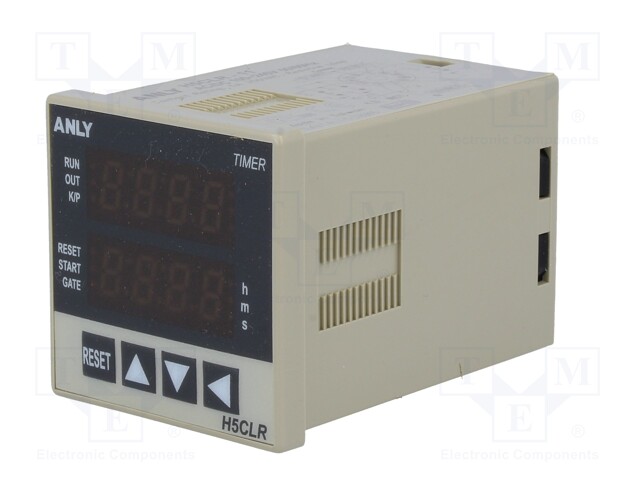

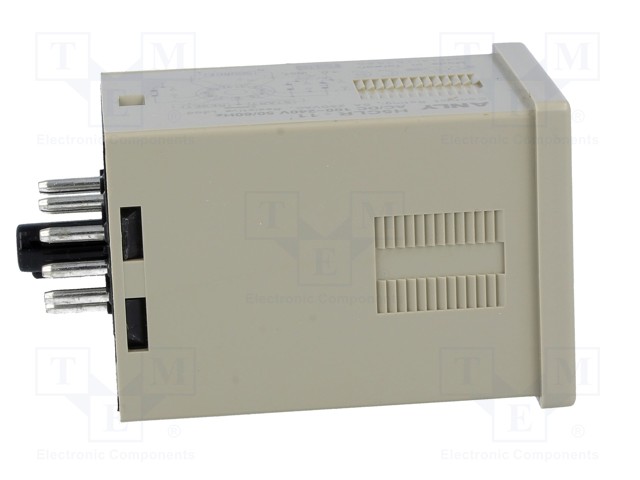

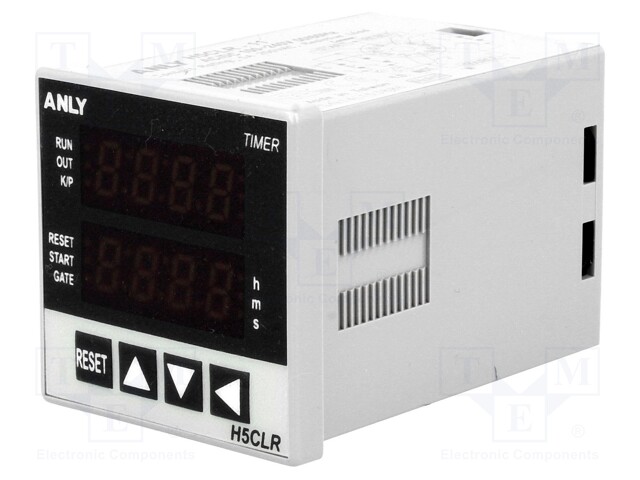

Timer; Range: 0,001s÷9999h; DPDT; 100÷240VAC; 100÷240VDC; undecal
Multiples:
1.0
Minimum quantity:
1.0
Product code:
H5CLR-11
Manufacturer: ANLY ELECTRONICS
Manufacturer code: H5CLR-11
Product downloads
Specification for Timer; Range: 0,001s÷9999h; DPDT; 100÷240VAC; 100÷240VDC; undecal
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 100...240V AC, 100...240V DC |
| Operating temperature | -10...50°C |
| Kind of connector | undecal |
| Number of pins | 11 |
| Mounting hole diameter | 45x45mm |
| Kind of display used | 2x LED |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,001s...9999h |
| Counter operation modes | cumulative, delayed switching off, delayed switching on, ON and OFF delay, ON for the set interval, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| Timers features | fitted with function for up and down time counting, memory and keypad functions blockade |
| number of operation modes | 11 |
| The additional control inputs | RESET, START |
| Output 1 properties | operation mode 2C - 2 out. changeover or main mode 1A1C - 1 out. changeover, 1 out. for indicating power state |
