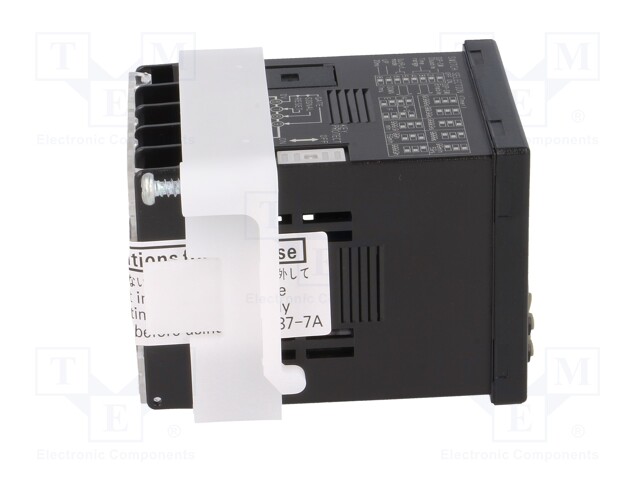

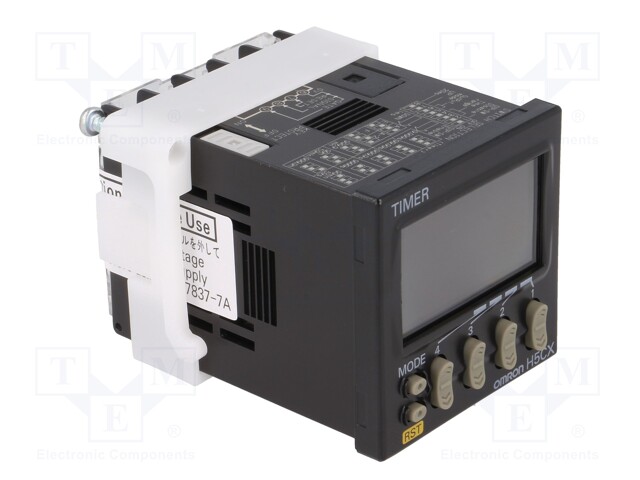

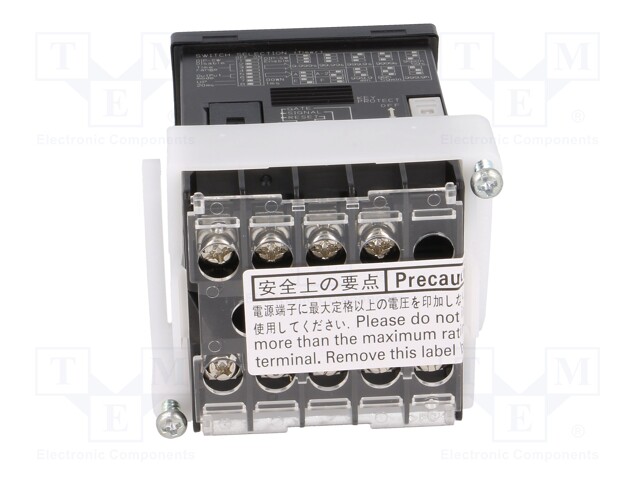

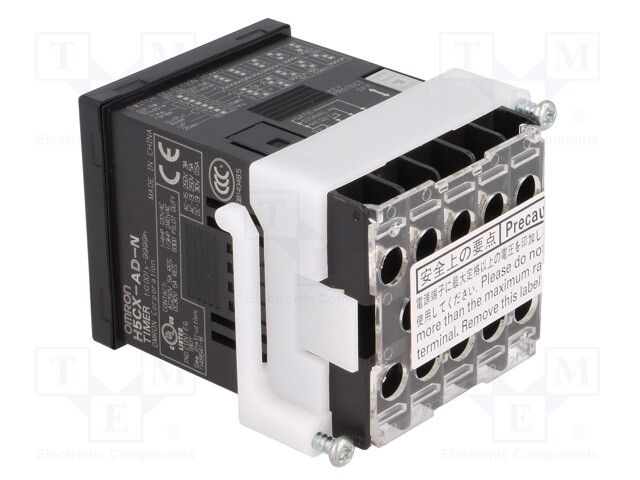

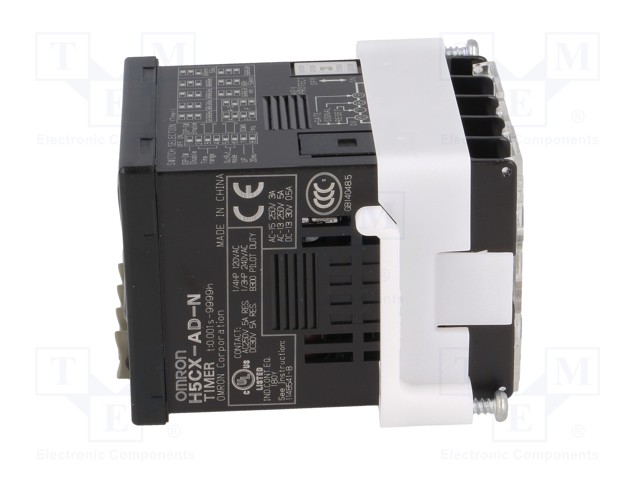

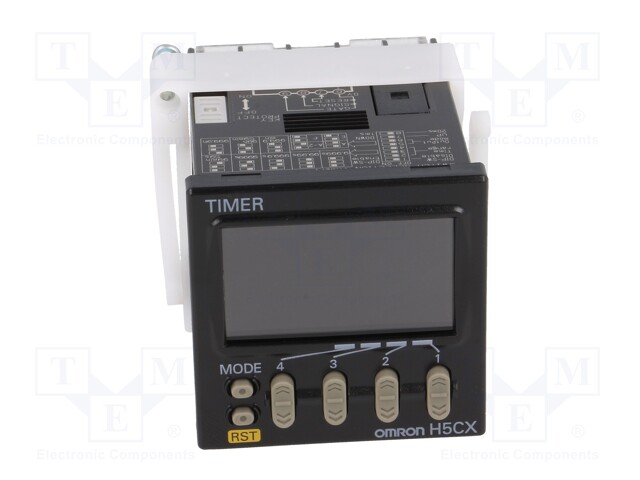

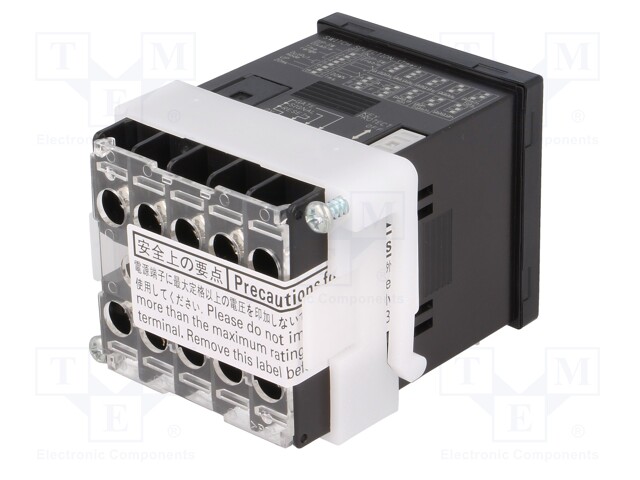

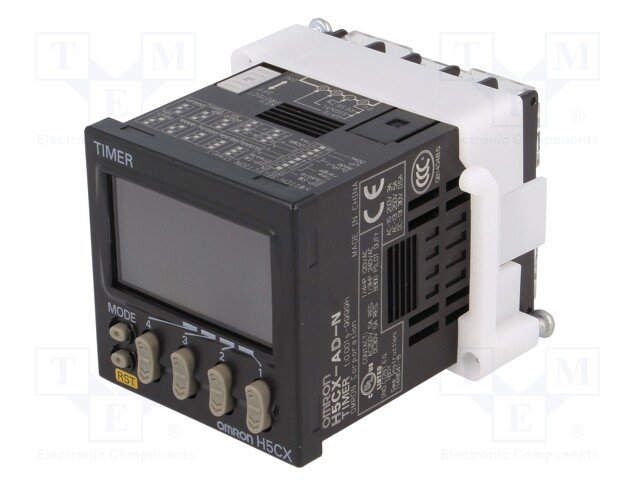

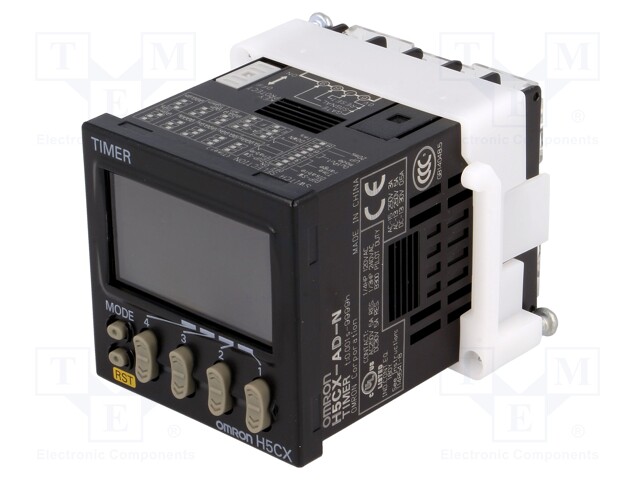

Timer; Range: 0,01s÷9999h; SPDT; 12÷24VDC; on panel; 45x45mm; PIN: 9
Multiples:
1.0
Minimum quantity:
1.0
Product code:
H5CX-AD-N
Manufacturer: OMRON
Manufacturer code: H5CX-AD-N
Product downloads
Specification for Timer; Range: 0,01s÷9999h; SPDT; 12÷24VDC; on panel; 45x45mm; PIN: 9
| Mounting | on panel |
| Supply voltage | 12...24V DC, 24V AC |
| Operating temperature | -10...55°C |
| IP rating | IP66 |
| Number of pins | 9 |
| Mounting hole diameter | 45x45mm |
| Kind of display used | LED |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 0,01s...9999h |
| Counter operation modes | cumulative, delayed switching off, delayed switching on, ON for the set interval, symmetrical cyclical operation pause first, with the control contact S |
| Timers features | fitted with function for up and down time counting |
| number of operation modes | 12 |
| The additional control inputs | gate, RESET, START |
