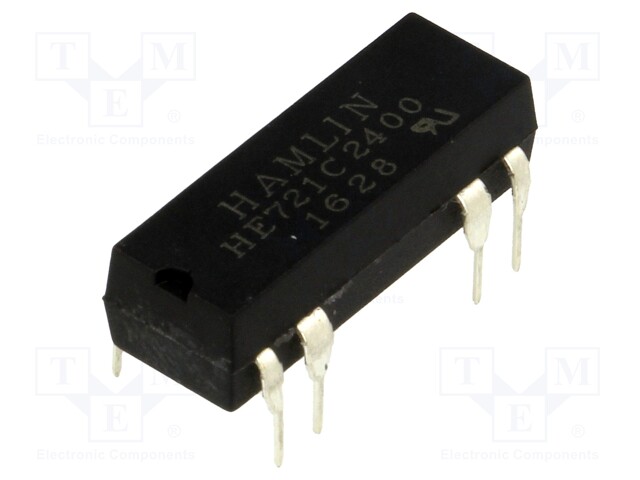

Relay: reed; SPDT; Ucoil: 24VDC; max.175VDC; Rcoil: 2000Ω; 288mW; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HE721C2400
    Manufacturer: LITTELFUSE
    Manufacturer code: HE721C2400
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    5.90 € 5.90 € (wo VAT) 5.9 EUR

    5.90 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; SPDT; Ucoil: 24VDC; max.175VDC; Rcoil: 2000Ω; 288mW; PCB

    Mounting PCB
    Case DIP
    Operating temperature -40...85°C
    Terminal pitch 2.54mm

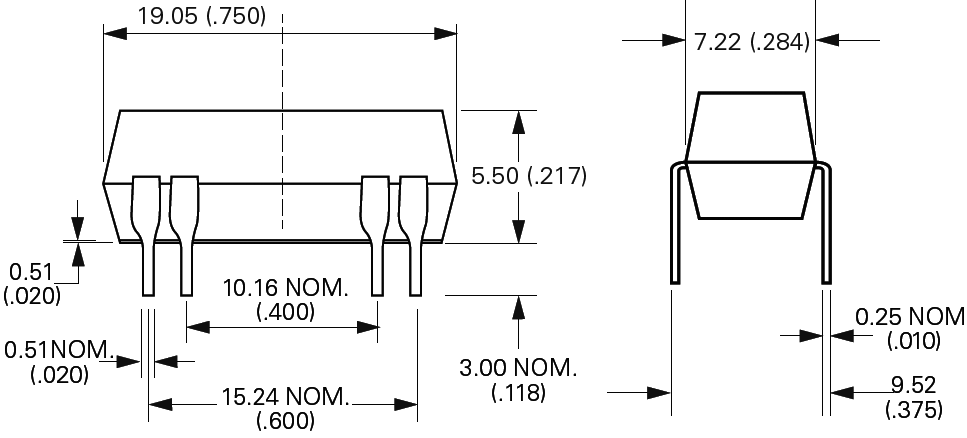

    Body dimensions 5.5x7.22x19.05mm
    Switched voltage max. 175V DC
    Coil resistance 2kΩ
    Rated coil voltage 24V DC

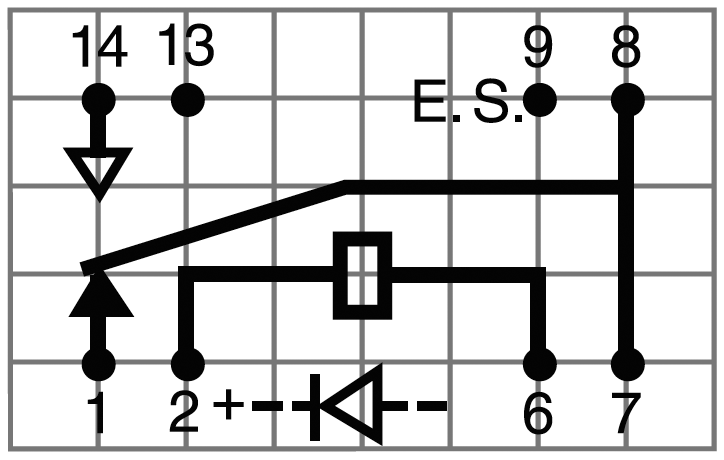

    Contacts configuration SPDT
    Contact resistance 200mΩ
    Coil voltage max. 44V DC
    Type of relay reed
    Coil voltage min. 18V DC
    Coil power consumption 288mW
