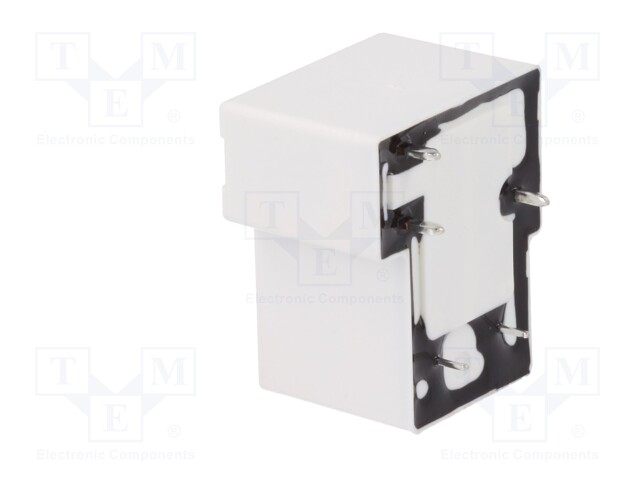

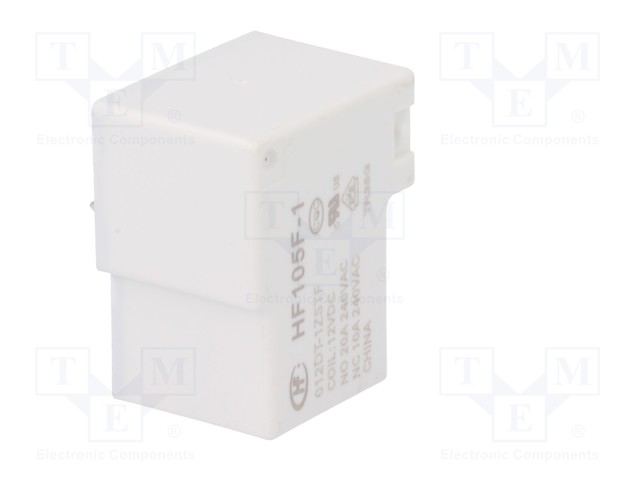

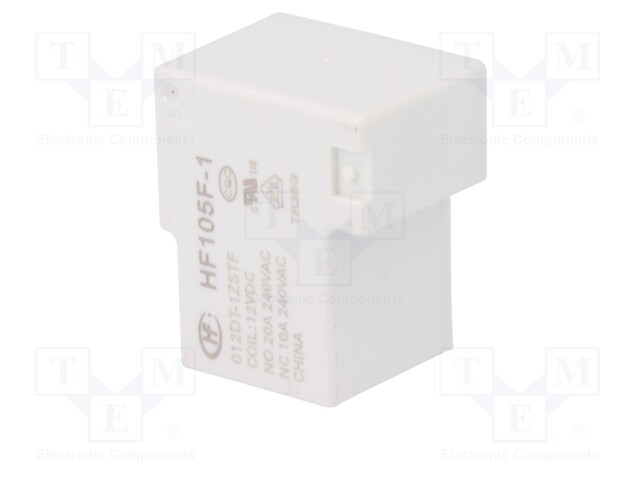

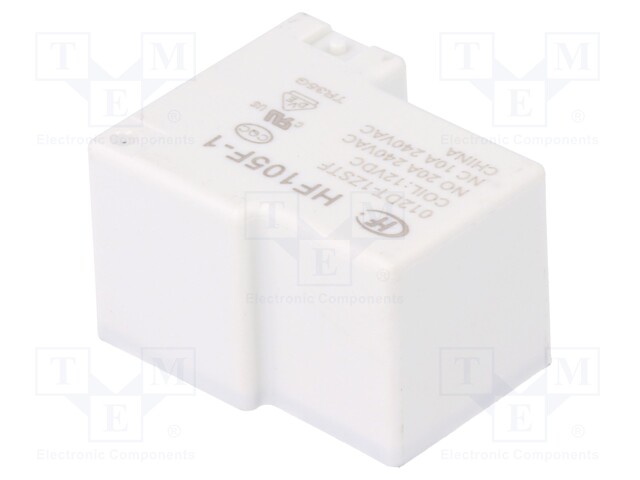

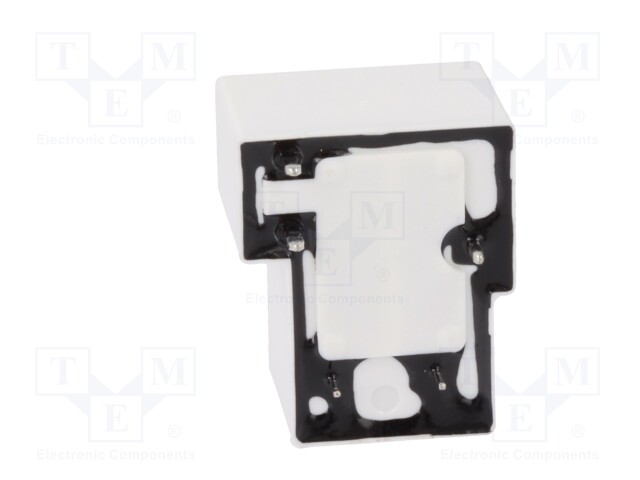

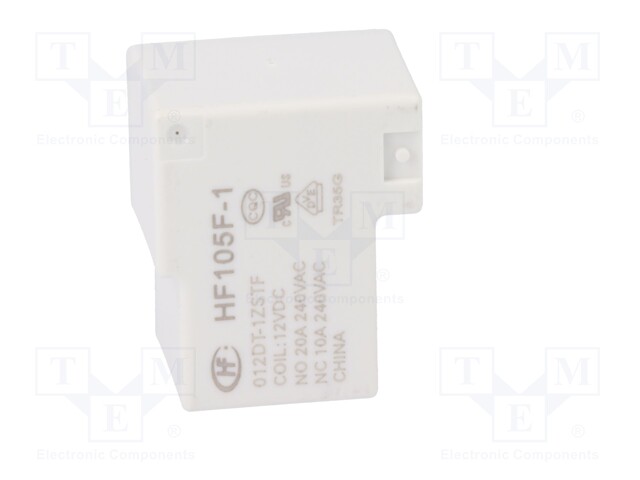

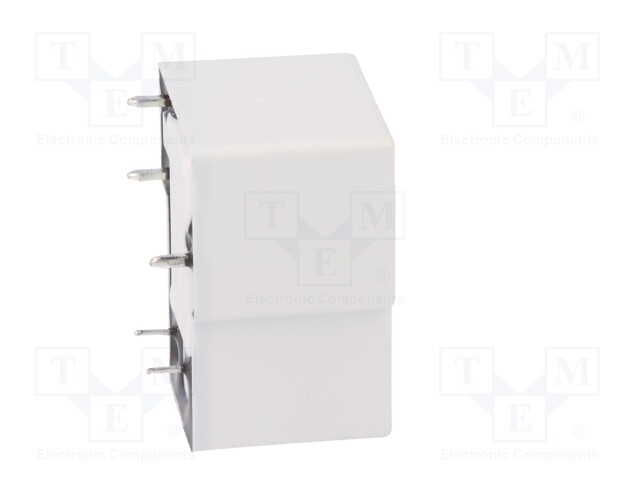

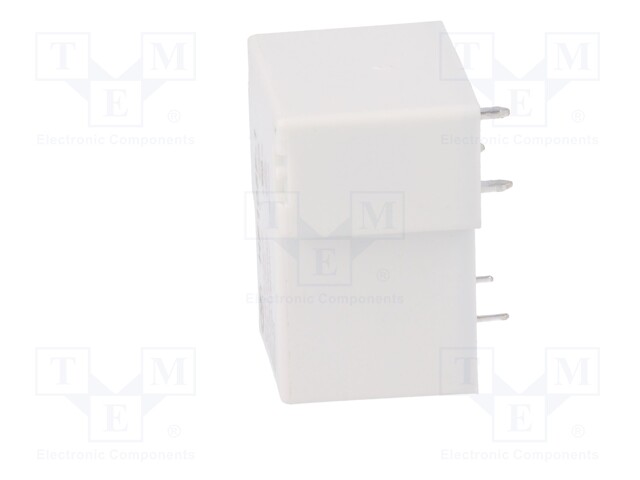

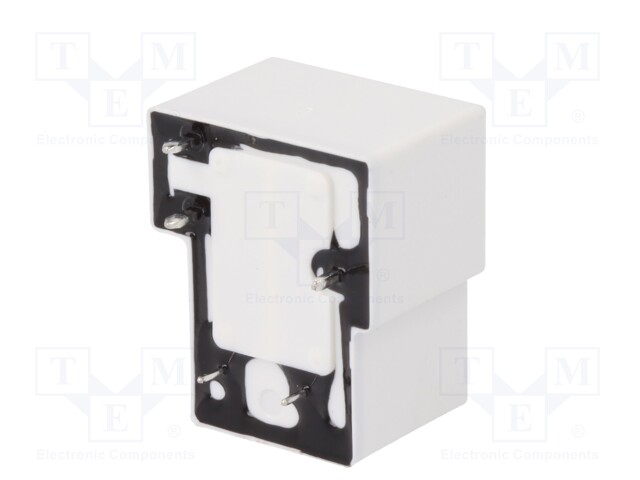

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; Ucoil min: 9VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF105F-1/012DT-1ZSTF
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF105F-1/012DT-1ZSTF
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    12.05 € 12.05 € (wo VAT) 12.05 EUR

    12.05 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 20A; Ucoil min: 9VDC

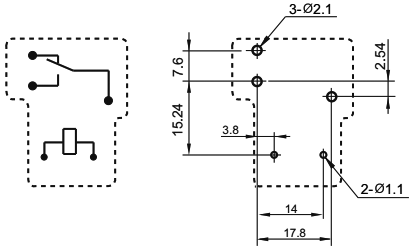

    Mounting PCB
    Operating temperature -55...85°C
    Contact material AgSnO<sub>2</sub>

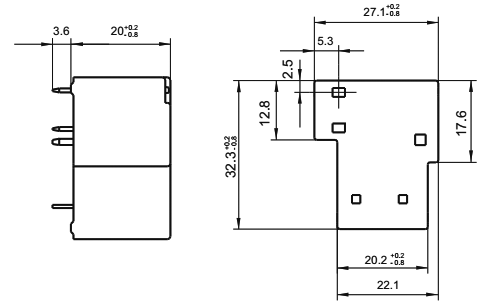

    Body dimensions 32.3x27.1x20mm
    Mechanical durability 10000000cycles
    Switched voltage max. 28V DC, max. 277V AC
    Switching capacity 560W, 4.8kVA
    Coil resistance 155Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 20A / 28V DC
    Contact resistance 50mΩ
    AC contacts rating @R 20A / 240V AC
    Contact current max. 20A
    Relay variant power
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 0.9W
    Operate time 15ms
    Release time 10ms
