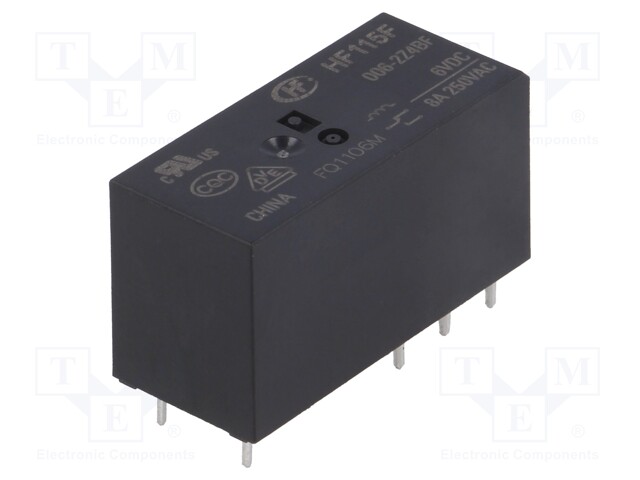

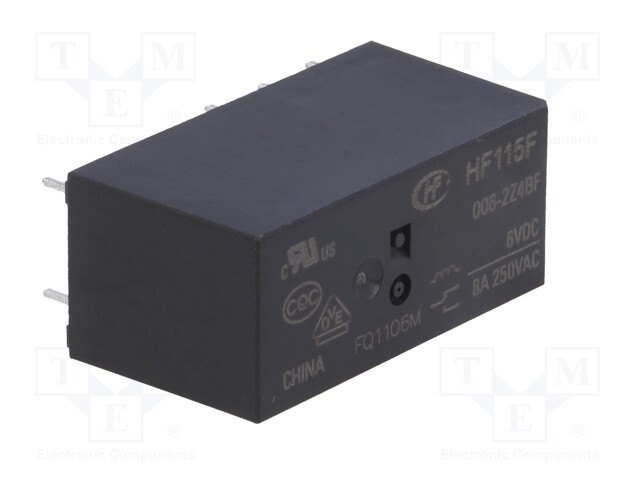

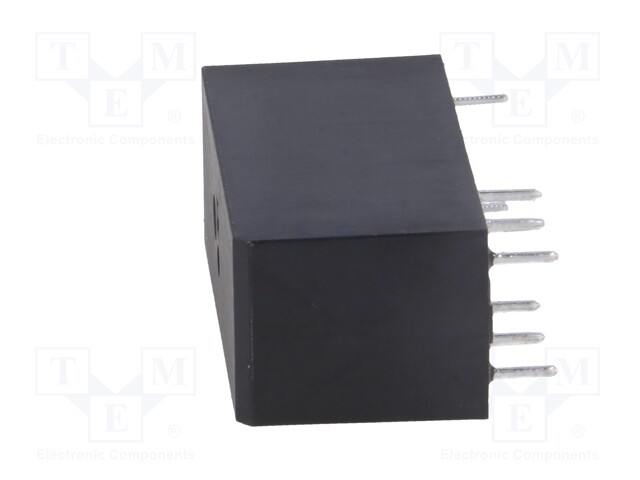

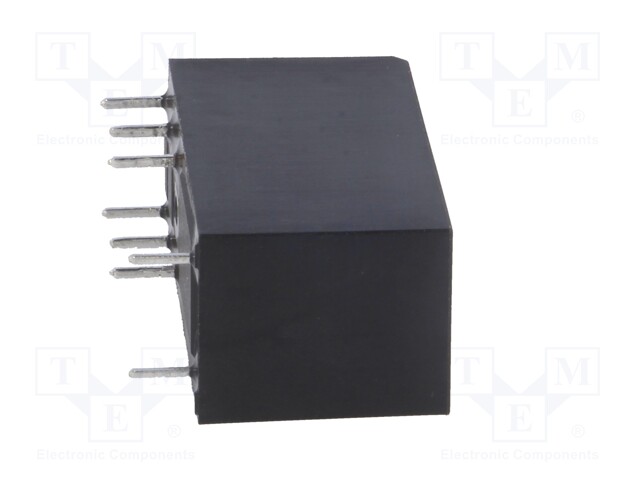

Relay: electromagnetic; DPDT; Ucoil: 6VDC; 8A/250VAC; 8A/24VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF115F/006-2Z4B
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF115F/006-2Z4B
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4.67 € 4.67 € (wo VAT) 4.67 EUR

    4.67 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 6VDC; 8A/250VAC; 8A/24VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5mm

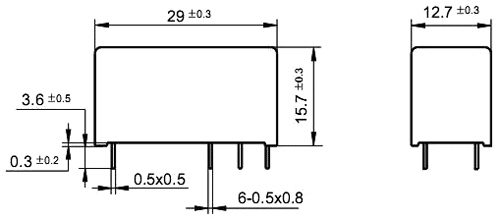

    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 300V DC, max. 440V AC
    Coil resistance 90Ω
    Rated coil voltage 6V DC

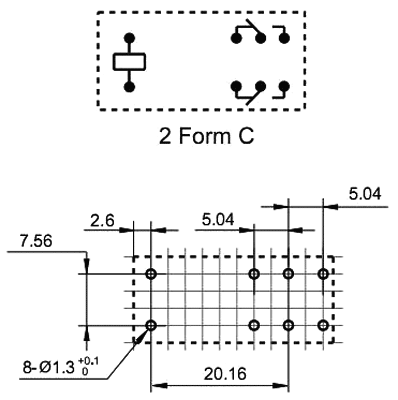

    Contacts configuration DPDT
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 9V DC
    Type of relay electromagnetic
    Coil voltage min. 4.2V DC
    Coil power consumption 400mW
    Operate time 15ms
    Release time 8ms
