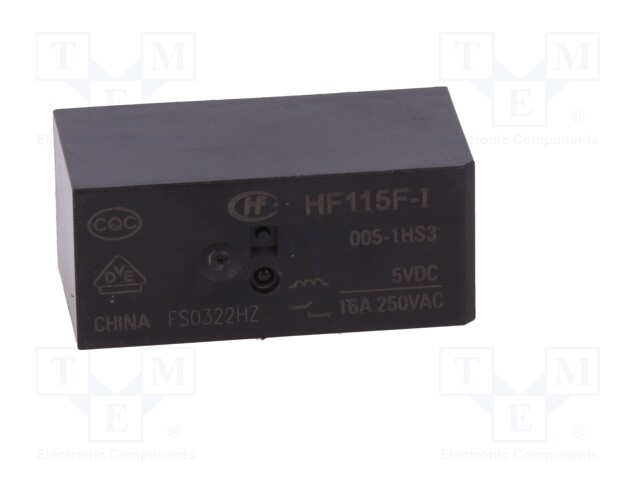

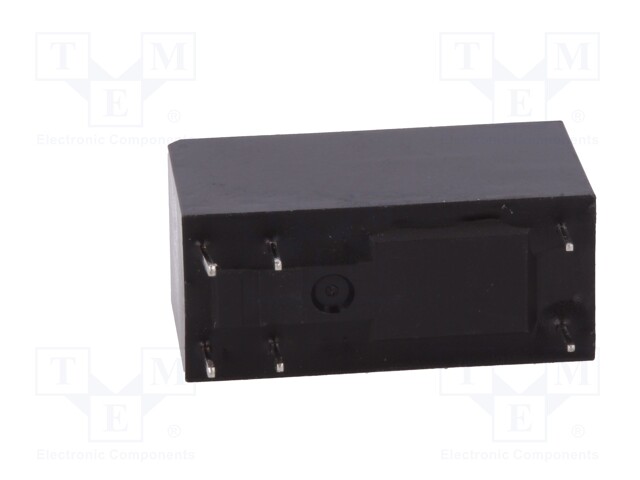

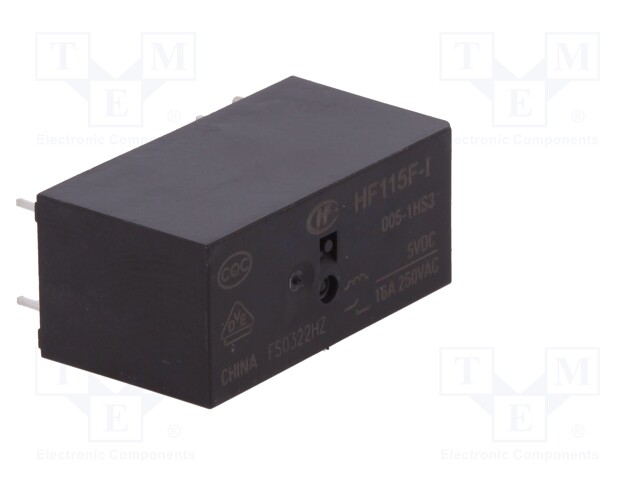

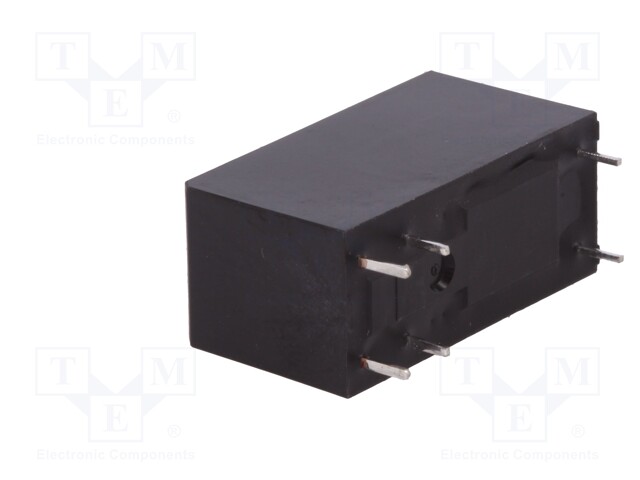

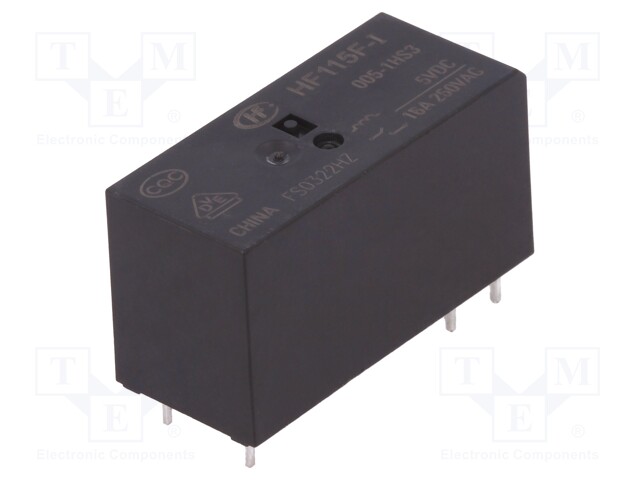

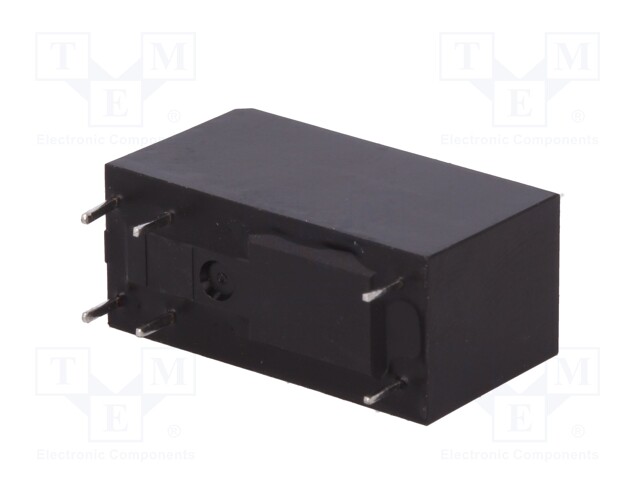

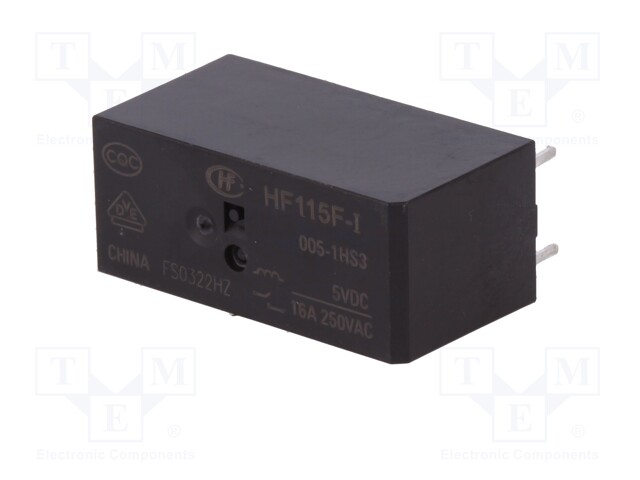

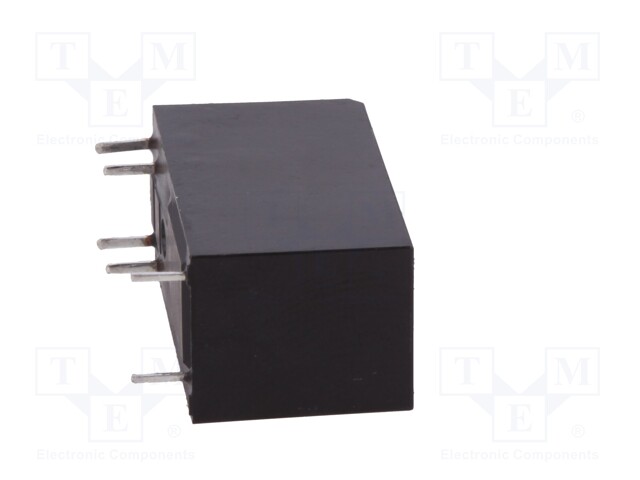

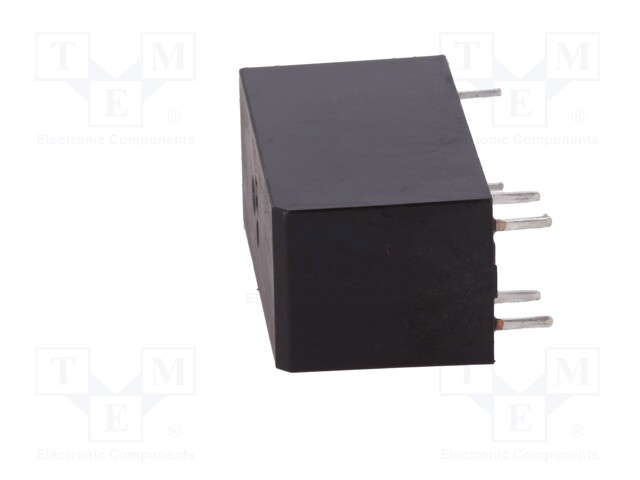

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; toff: 8ms

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF115F-I/005-1HS3
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF115F-I/005-1HS3
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    4.13 € 4.13 € (wo VAT) 4.13 EUR

    4.13 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 16A/250VAC; toff: 8ms

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>In<sub>2</sub>O<sub>3</sub>

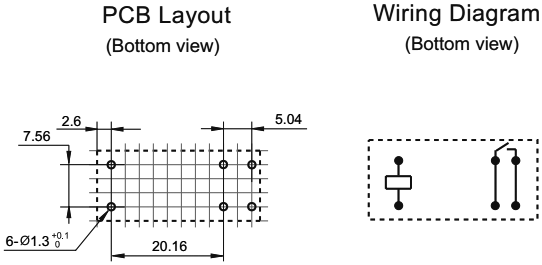

    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage max. 125V DC, max. 440V AC
    Max surge current 80A
    Coil resistance 62Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 7.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.5V DC
    Coil power consumption 400mW
    Operate time 15ms
    Release time 8ms
