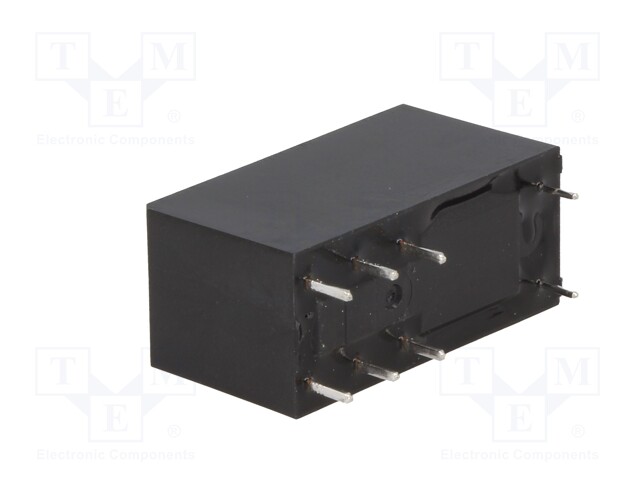

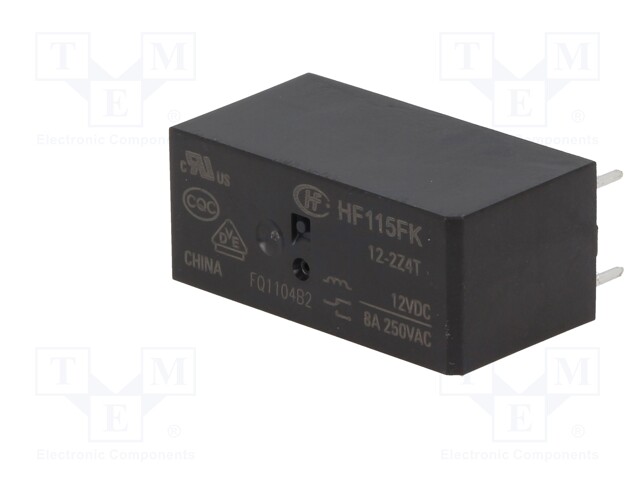

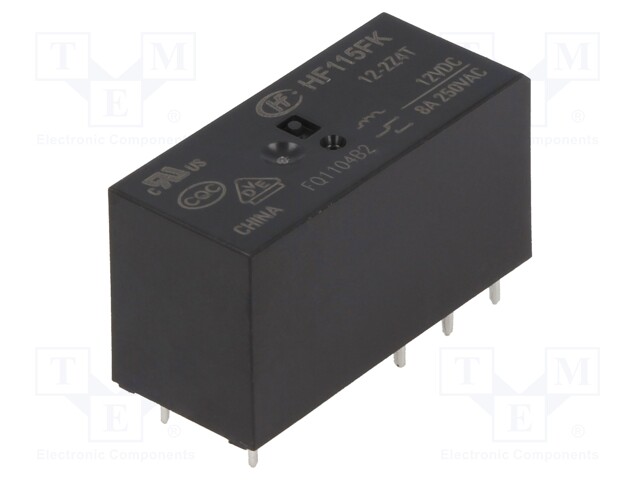

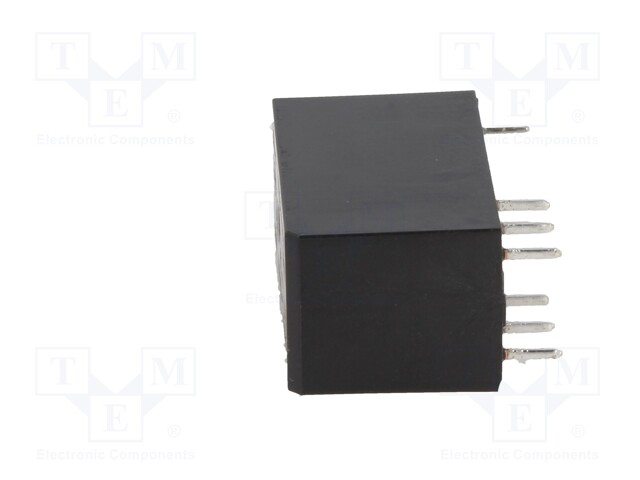

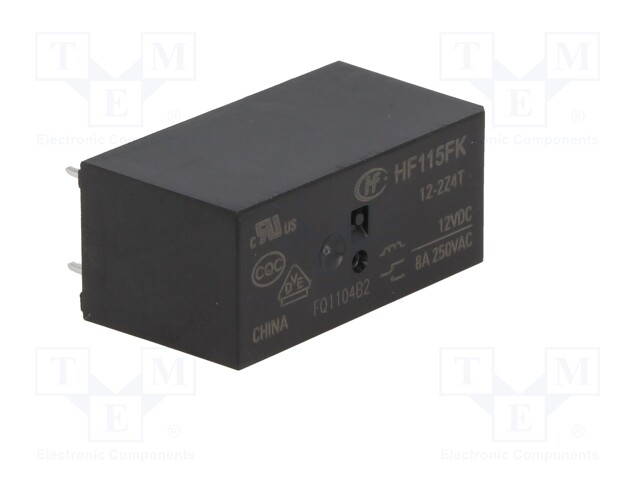

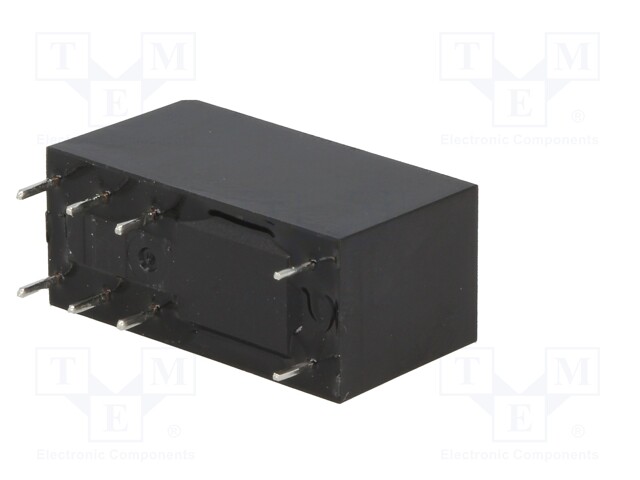

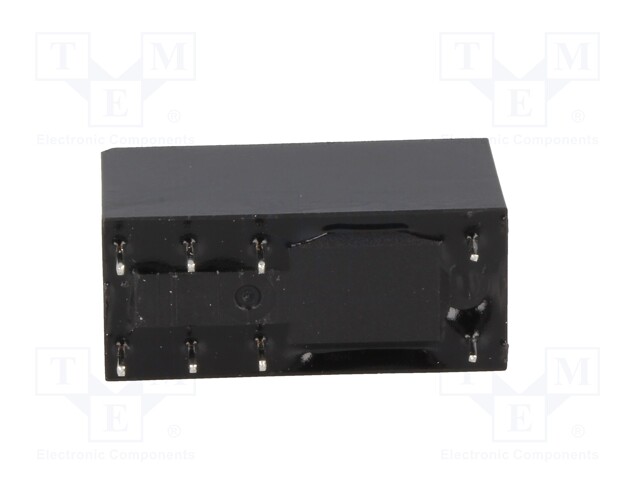

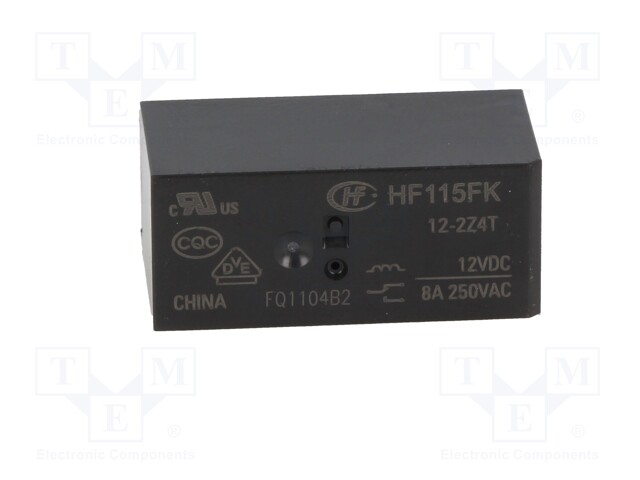

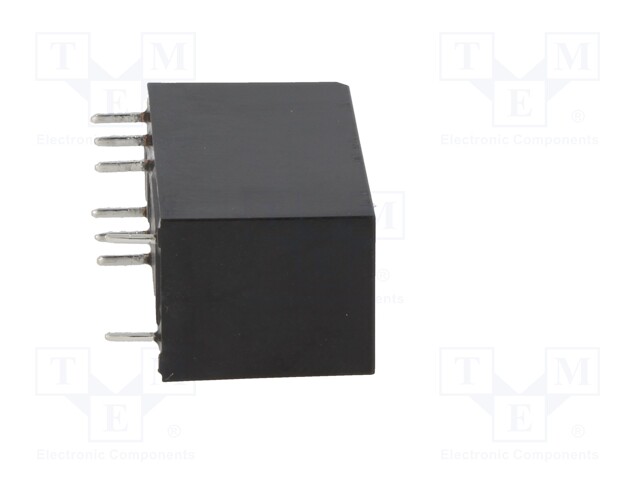

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A/250VAC; 8A; toff: 5ms

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF115FK/12-2Z4T
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF115FK/12-2Z4T
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    6.32 € 6.32 € (wo VAT) 6.32 EUR

    6.32 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 8A/250VAC; 8A; toff: 5ms

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body dimensions 29x15.7x12.7mm
    Switched voltage max. 400V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 400mW
    Operate time 10ms
    Release time 5ms
