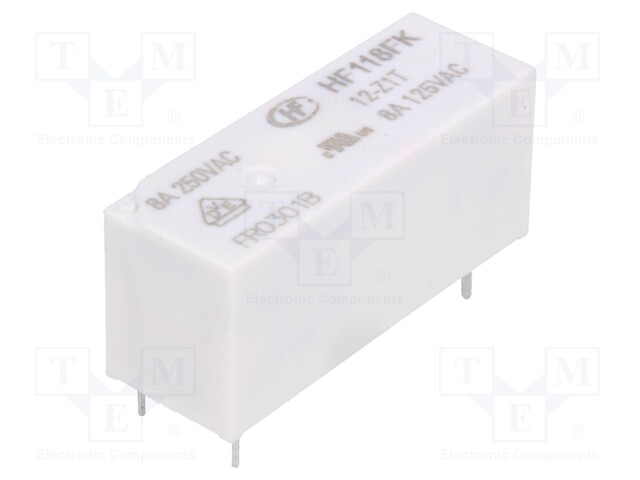

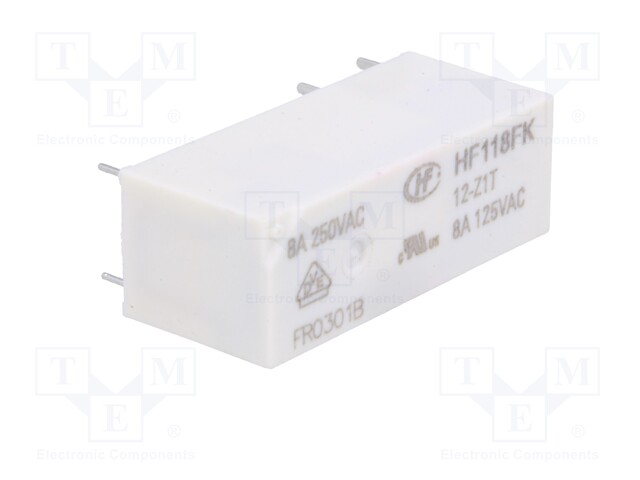

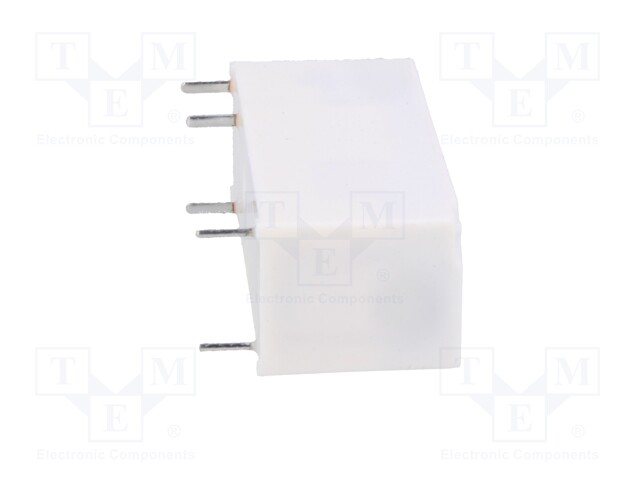

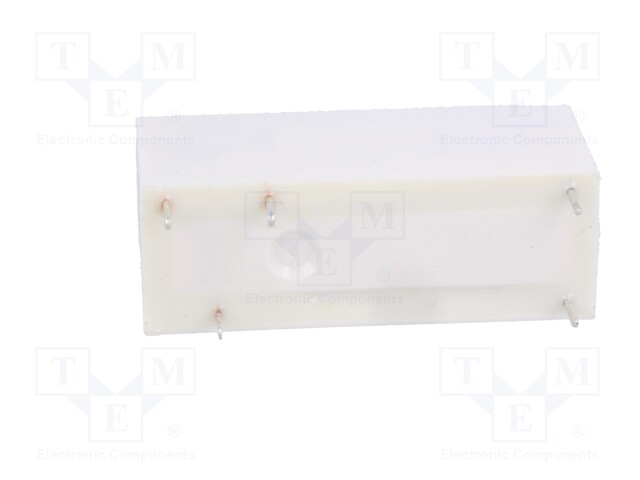

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC; 8A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF118FK/12-Z1T
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF118FK/12-Z1T
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    1.98 € 1.98 € (wo VAT) 1.98 EUR

    1.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 8A/250VAC; 8A/30VDC; 8A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

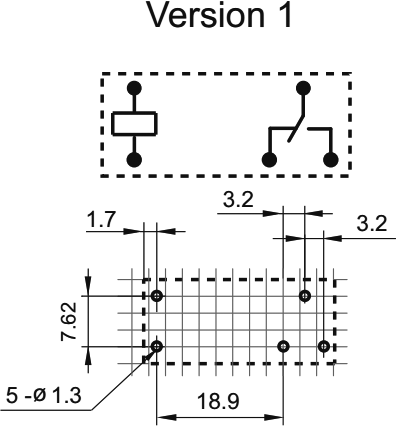

    Terminal pitch 3.2mm

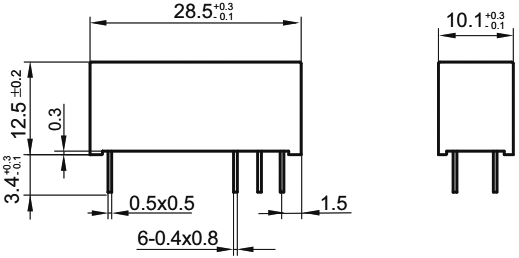

    Body dimensions 28.5x12.5x10.1mm
    Switched voltage max. 125V DC, max. 440V AC
    Coil resistance 620Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 18V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Coil power consumption 220mW
    Operate time 10ms
    Release time 5ms
