Relay: electromagnetic; SPDT; Ucoil:12VDC; 8A/250VAC; 8A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF141FF/012-ZS
    Manufacturer:
    Manufacturer code:
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2.66 € 2.66 € (wo VAT) 2.66 EUR

    2.66 €

    This combination does not exist.

    Add to Cart

    Product downloads

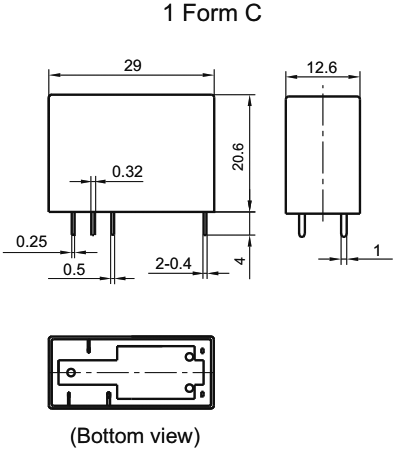

    Specification for Relay: electromagnetic; SPDT; Ucoil:12VDC; 8A/250VAC; 8A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgCdO
    Terminal pitch 3.5mm
    Body dimensions 29x12.6x20.6mm
    Switched voltage max. 30V DC, max. 250V AC
    Coil resistance 270Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 8A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 550mW
