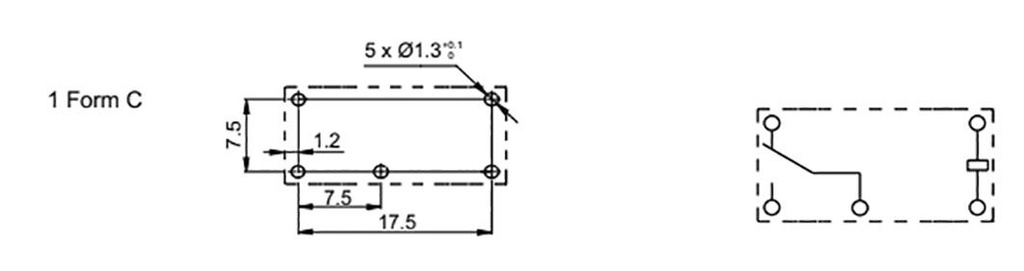

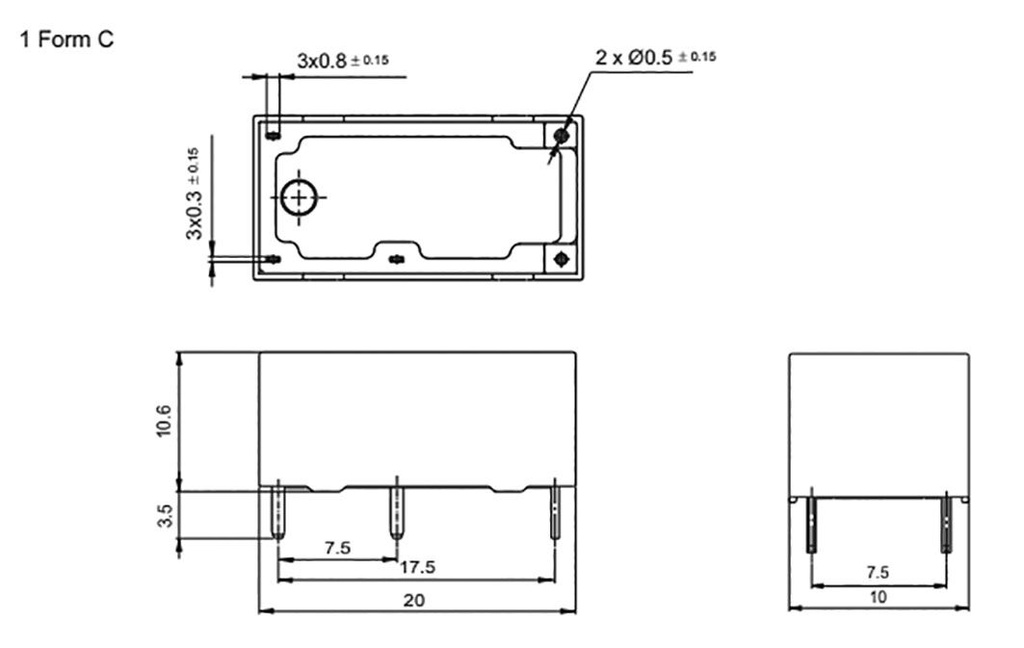

Relay: electromagnetic; SPDT; Ucoil: 12VDC; miniature; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF171F/12-ZT
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF171F/12-ZT
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.21 € 2.21 € (wo VAT) 2.21 EUR

    2.21 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; miniature; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Coil voltage max. 15.6V DC
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 200mW
    Operate time 8ms
    Release time 5ms
