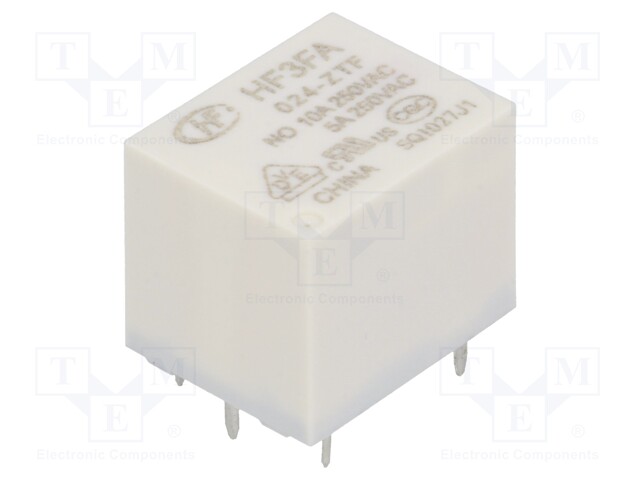

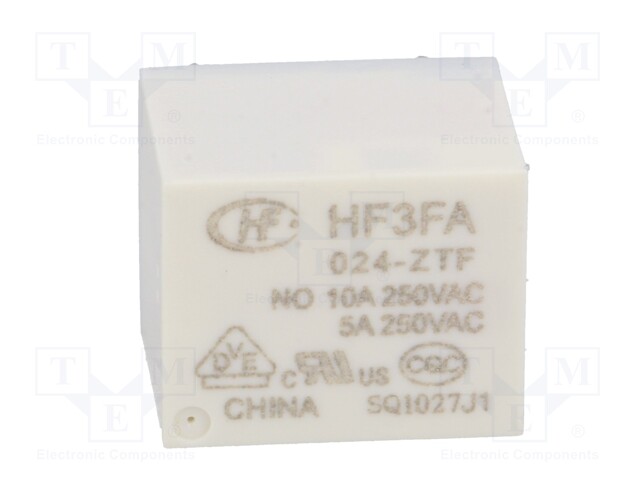

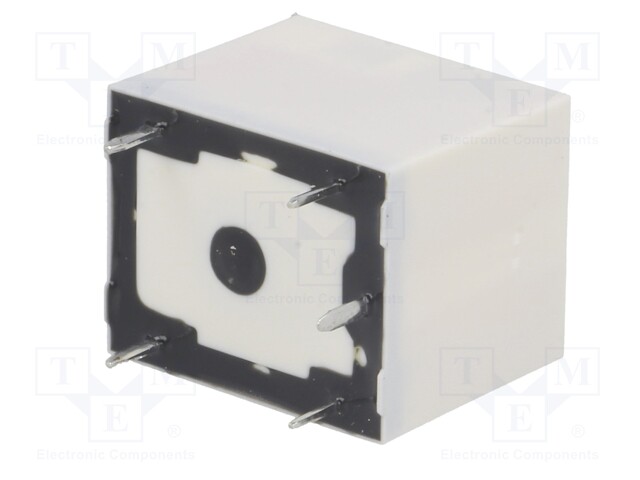

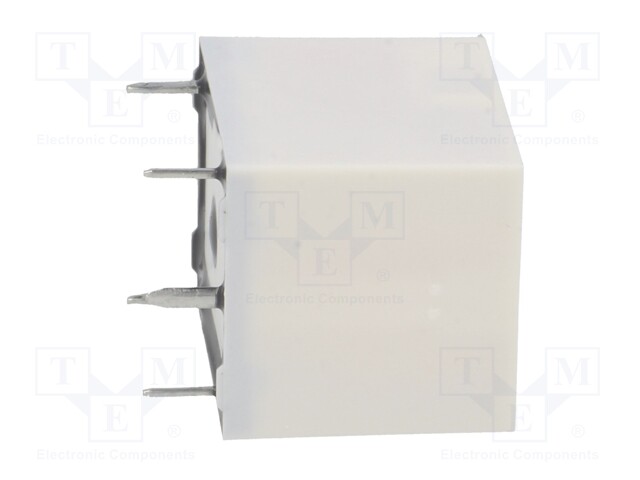

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/28VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF3FA/024-ZTF
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF3FA/024-ZTF
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    3.35 € 3.35 € (wo VAT) 3.35 EUR

    3.35 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/277VAC; 10A/28VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>

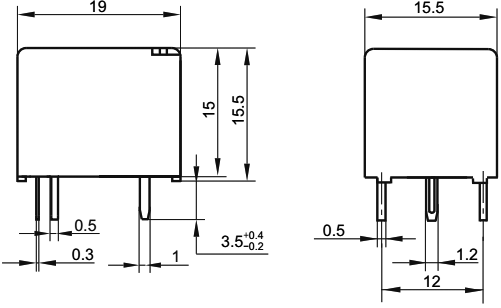

    Body dimensions 19x15.5x15.5mm
    Switched voltage max. 28V DC, max. 277V AC
    Coil resistance 1.6kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 28V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 277V AC
    Contact current max. 10A
    Relay variant subminiature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 360mW
    Operate time 10ms
    Release time 5ms
