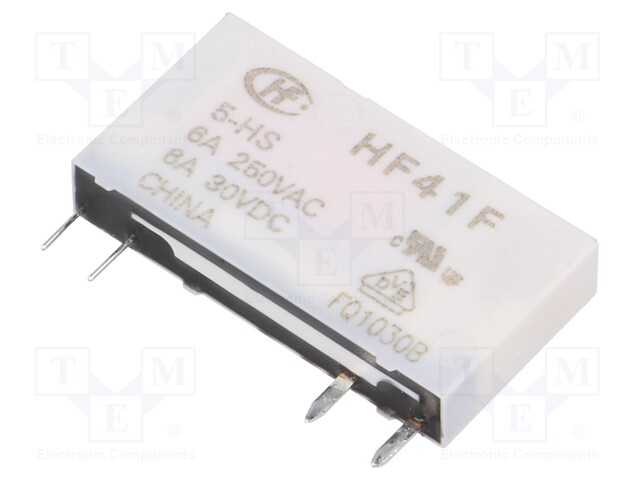

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 6A/250VAC; 6A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF41F/5-HS
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF41F/5-HS
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    5.31 € 5.31 € (wo VAT) 5.3100000000000005 EUR

    5.31 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; 6A/250VAC; 6A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgNi
    Terminal pitch 5.04mm
    Body dimensions 28x5x15mm
    Switched voltage max. 125V DC, max. 400V AC
    Coil resistance 147Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 6A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant miniature
    Coil voltage max. 7.5V DC
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 170mW
    Operate time 8ms
    Release time 4ms
