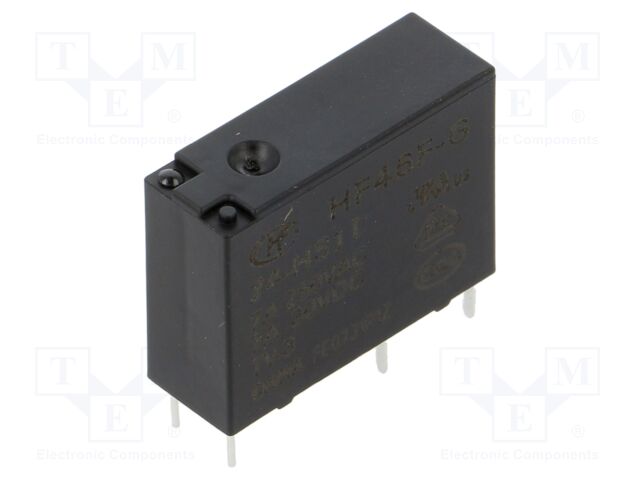

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 7A/250VAC; PCB

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HF46F-G/024-HS1T
    Manufacturer: HONGFA RELAY
    Manufacturer code: HF46F-G/024-HS1T
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 10A; 7A/250VAC; PCB

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 20.5x7.2x15.3mm
    Switched voltage max. 30V DC, max. 277V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 7A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 7A / 250V AC
    Contact current max. 10A
    Relay variant subminiature
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW
    Operate time 10ms
    Release time 10ms
