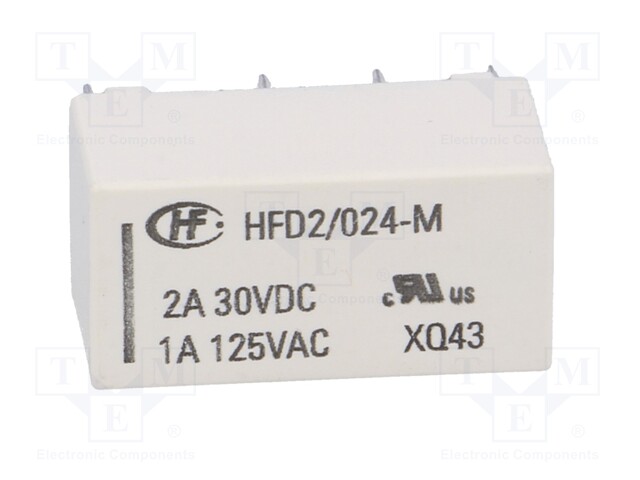

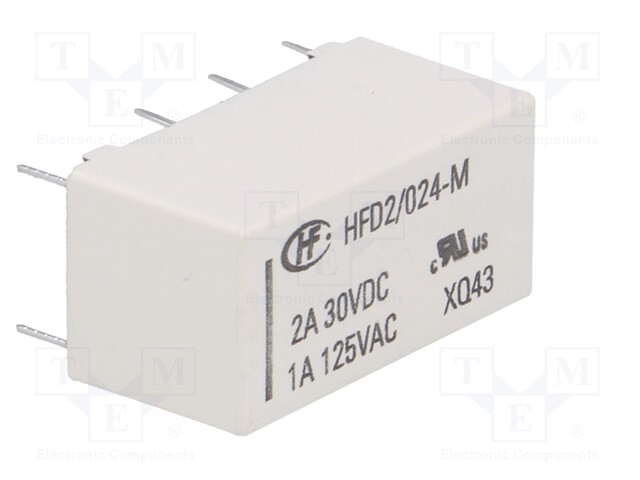

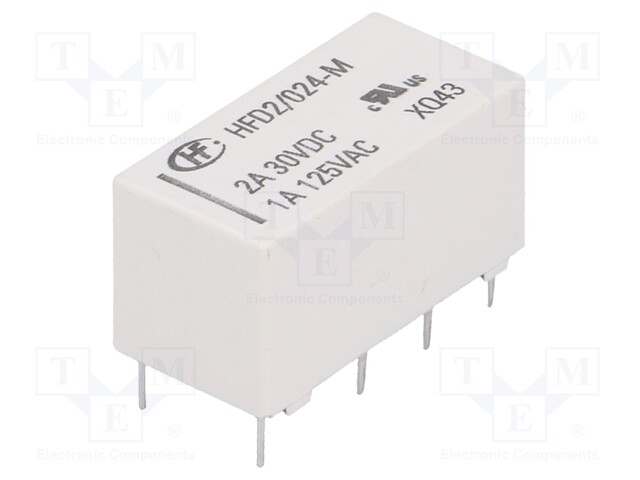

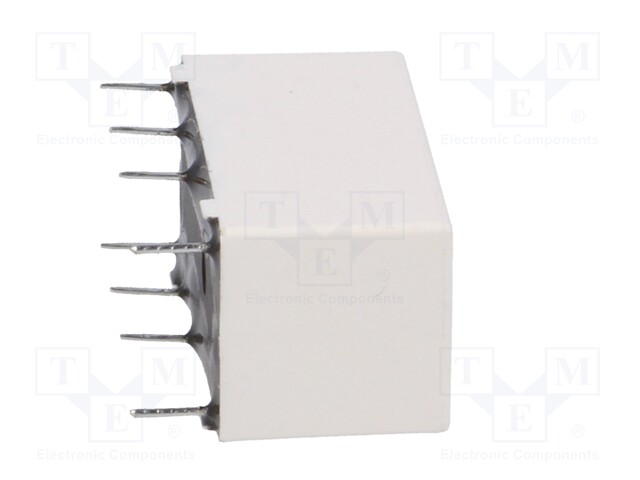

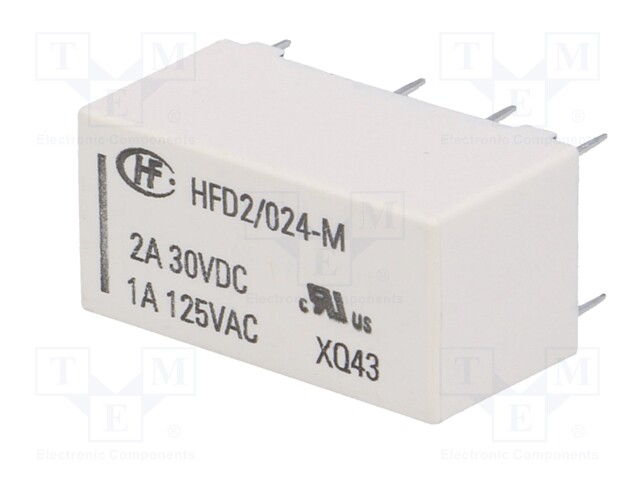

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A/125VAC; 3A/30VDC; 3A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFD2/024-M
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFD2/024-M
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.40 € 2.40 € (wo VAT) 2.4 EUR

    2.40 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 24VDC; 1A/125VAC; 3A/30VDC; 3A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgPd/Au 0,2μm
    Terminal pitch 5.08mm

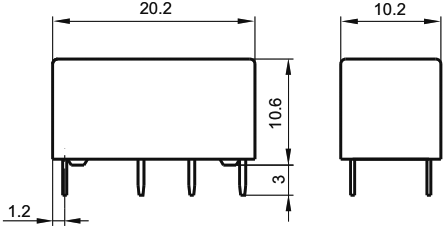

    Body dimensions 20.2x10.2x10.6mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC

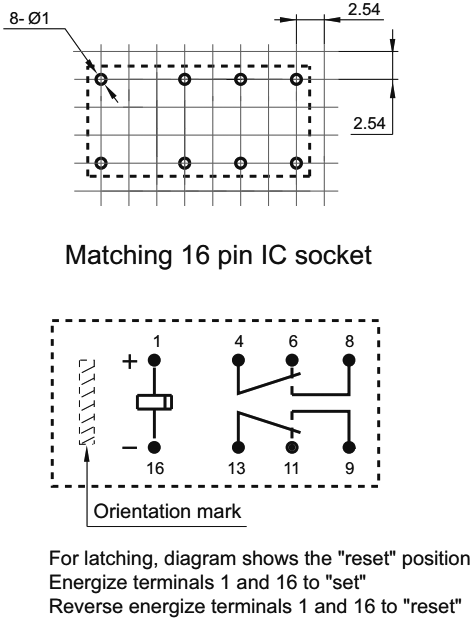

    Contacts configuration DPDT
    DC contacts rating @R 3A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 1A / 125V AC
    Contact current max. 3A
    Relay variant subminiature
    Coil voltage max. 48V DC
    Type of relay electromagnetic
    Coil voltage min. 18V DC
    Coil power consumption 200mW
    Operate time 4.5ms
    Release time 3.5ms
