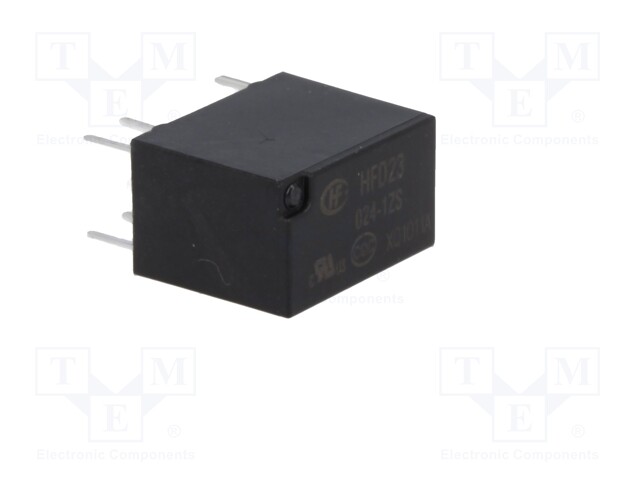

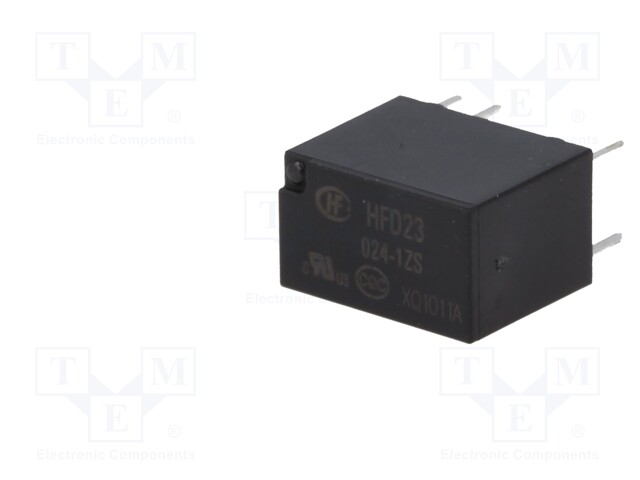

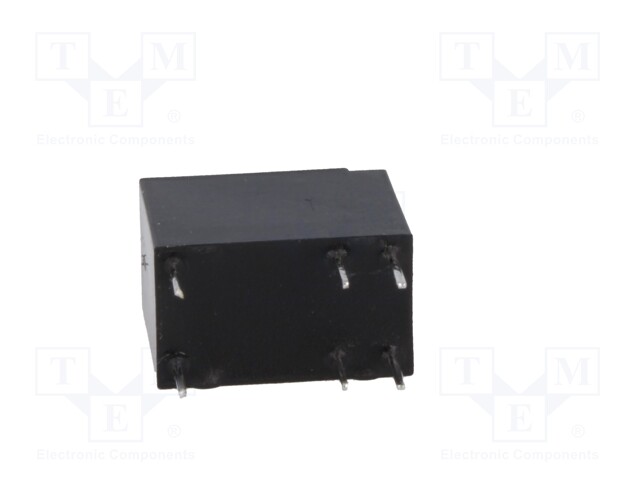

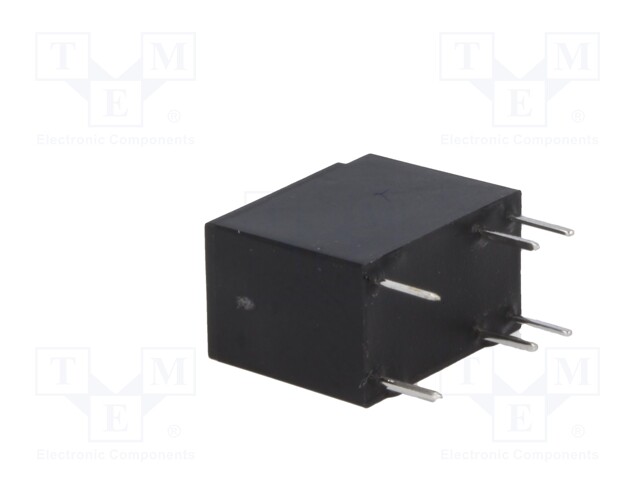

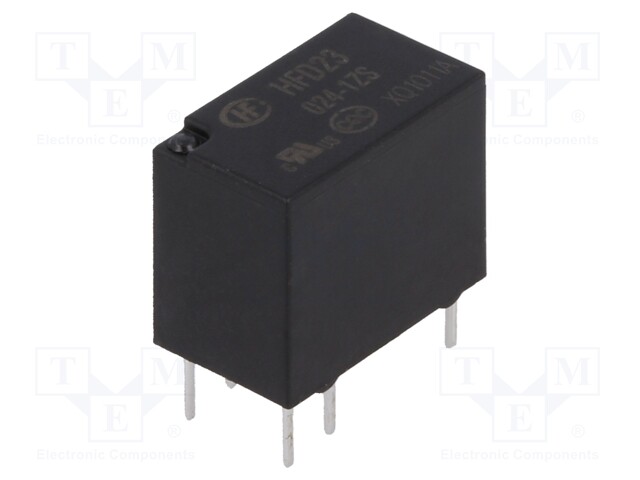

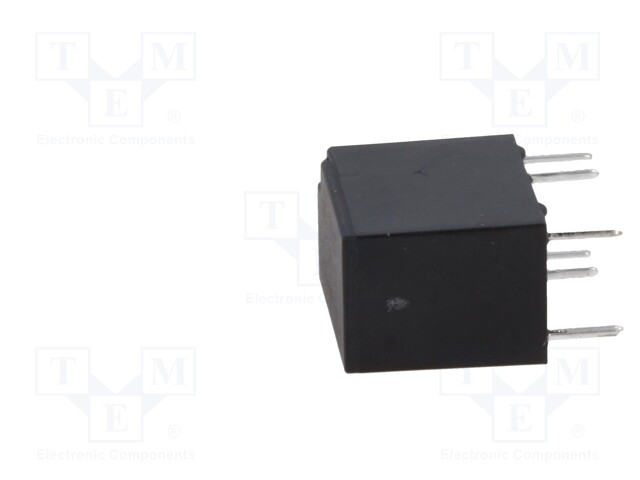

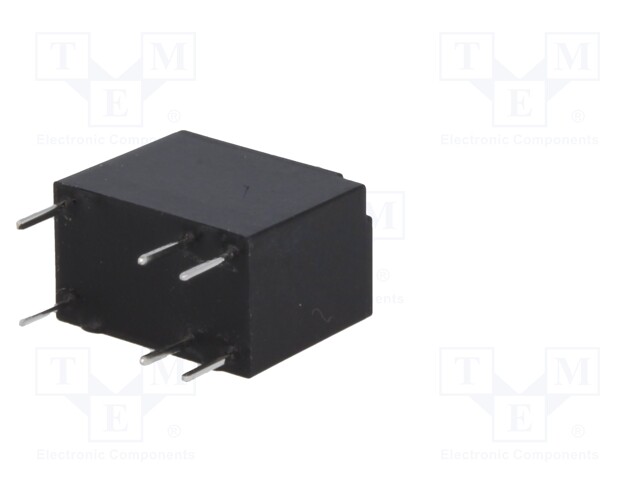

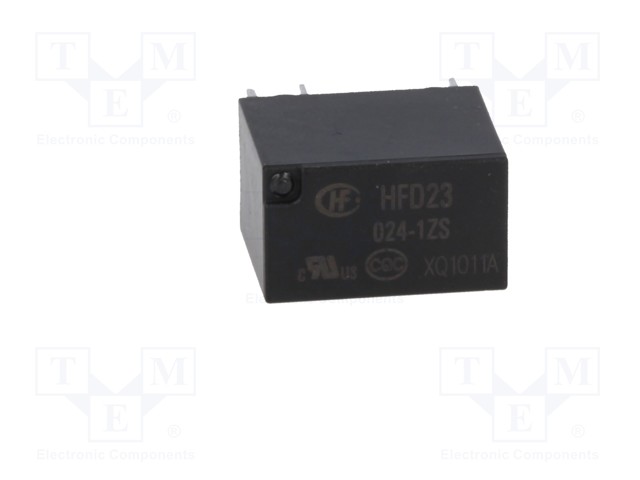

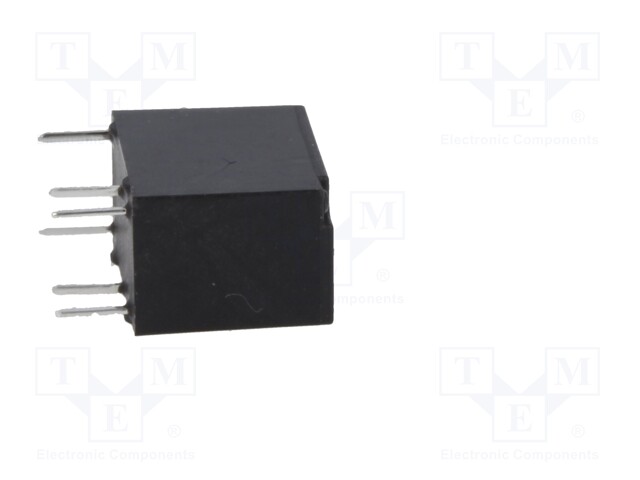

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFD23/024-1ZS
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFD23/024-1ZS
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.43 € 2.43 € (wo VAT) 2.43 EUR

    2.43 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 24VDC; 0.5A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -30...70°C
    Contact material AgNi + Au
    Terminal pitch 2.54mm

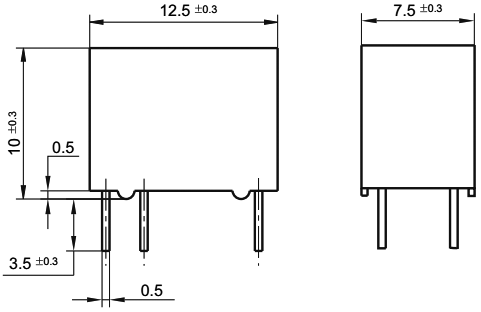

    Body dimensions 12.5x7.5x10mm
    Switched voltage max. 60V DC, max. 125V AC
    Coil resistance 3.84kΩ
    Rated coil voltage 24V DC

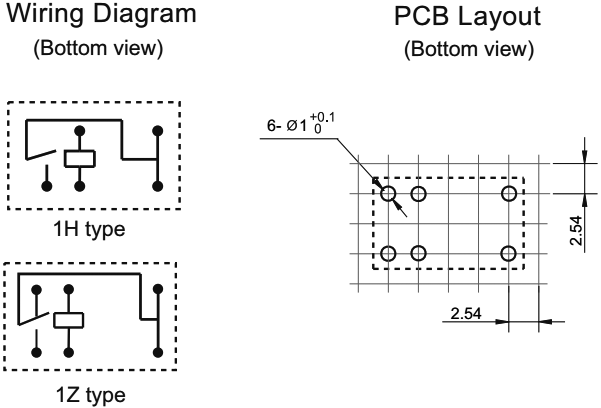

    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Coil voltage max. 36V DC
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 150mW
    Operate time 5ms
    Release time 5ms
