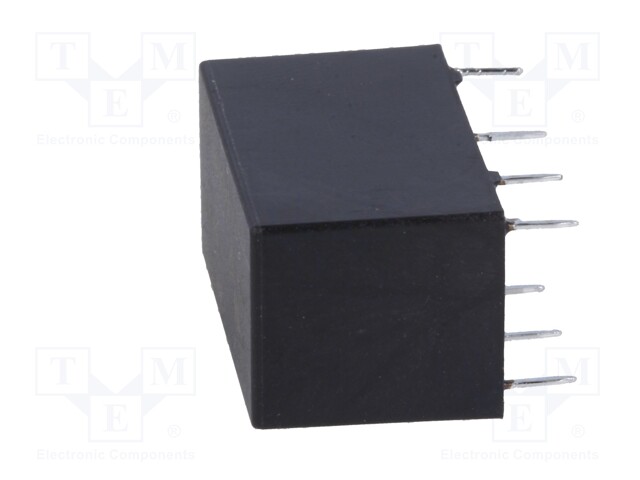

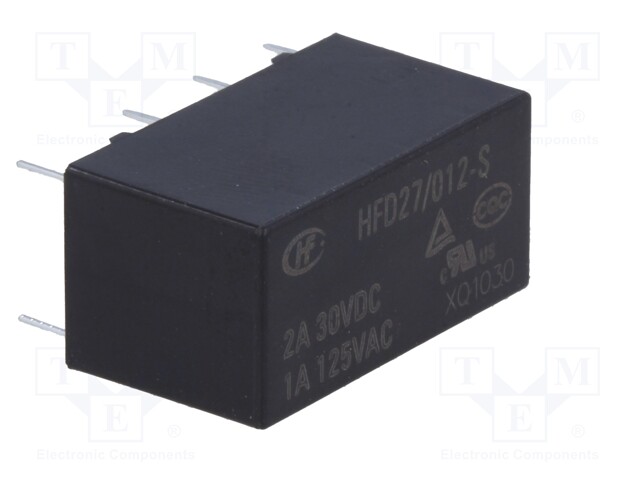

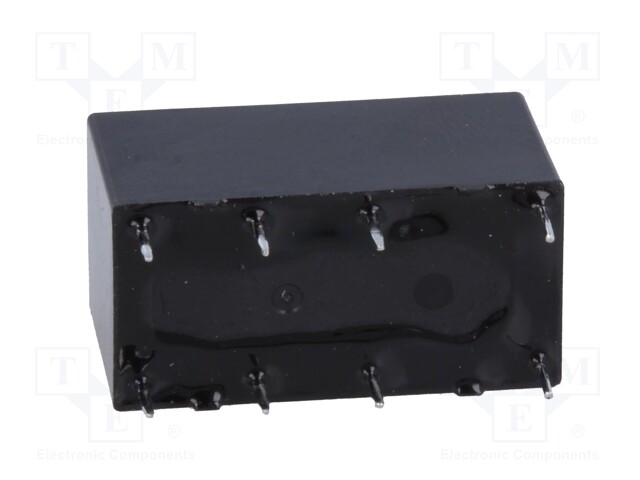

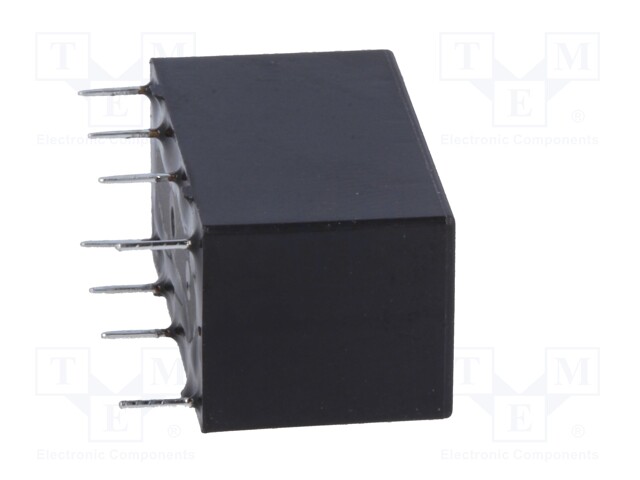

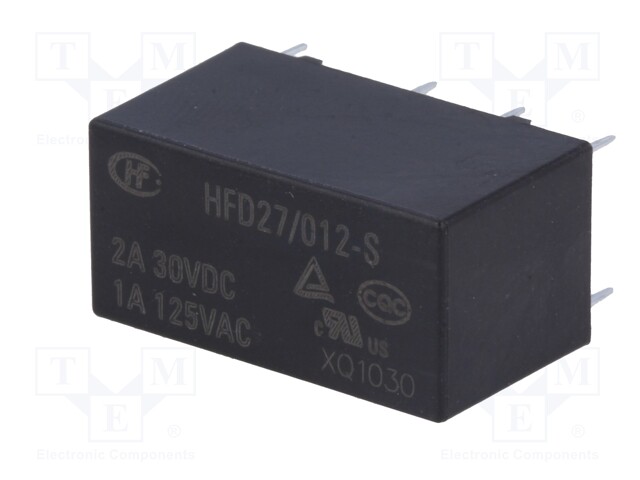

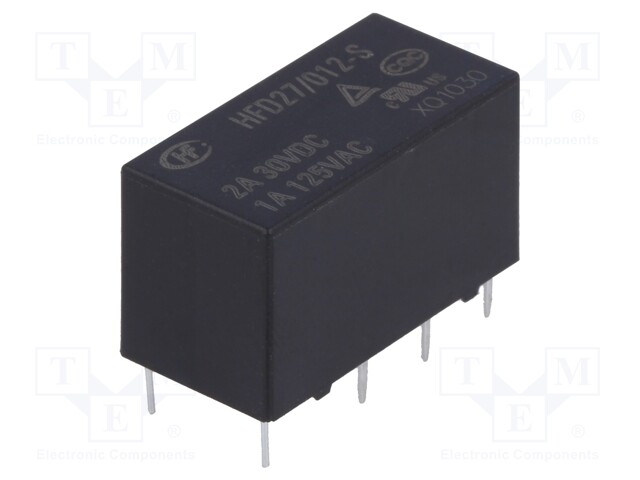

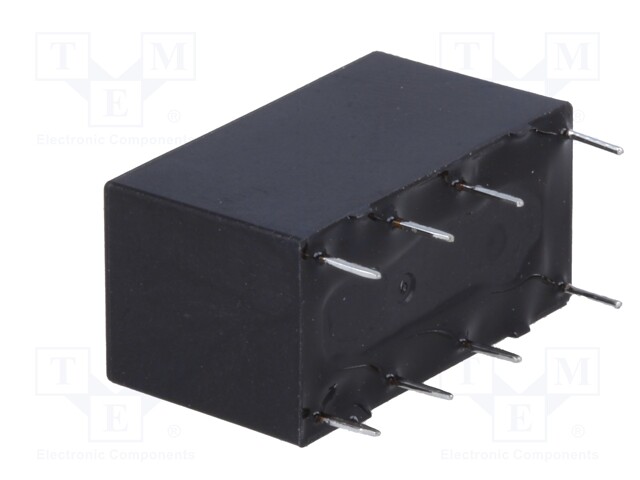

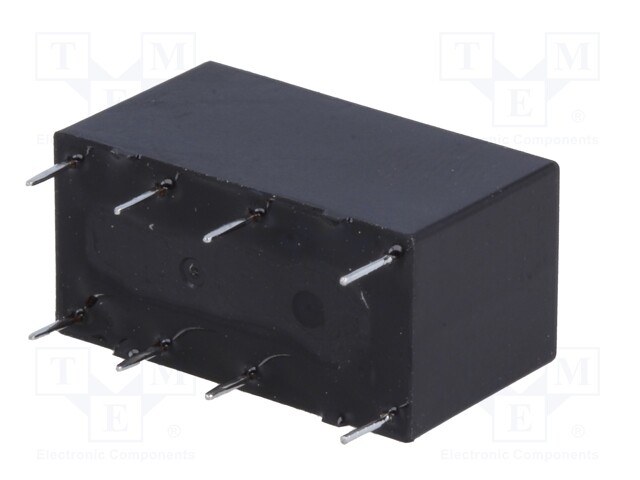

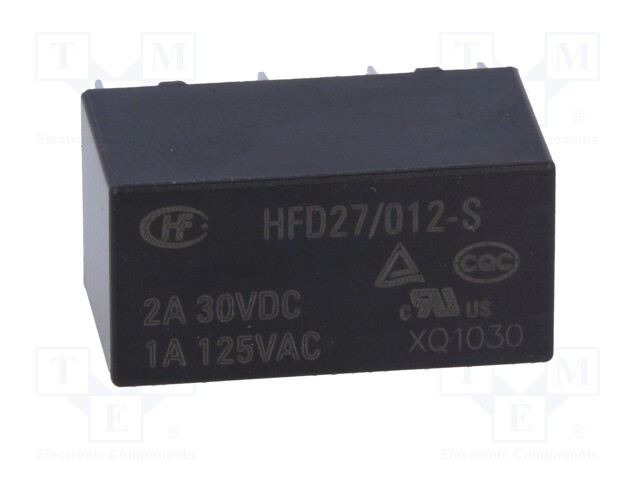

Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFD27/012-S
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFD27/012-S
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    1.50 € 1.50 € (wo VAT) 1.5 EUR

    1.50 €

    This combination does not exist.

    Add to Cart

    Product downloads

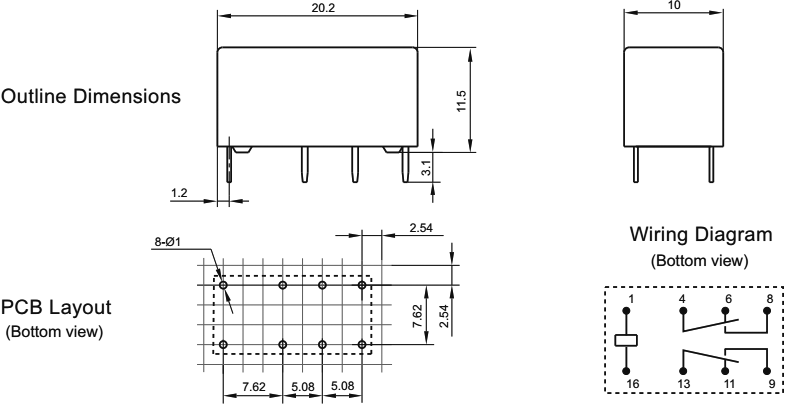

    Specification for Relay: electromagnetic; DPDT; Ucoil: 12VDC; 1A/125VAC; 2A/30VDC

    Operating temperature -40...85°C
    Contact material AgNi + Au
    Terminal pitch 5.08mm
    Switched voltage max. 120V DC, max. 240V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    AC contacts rating @R 1A / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 7ms
    Release time 4ms
    Coil current 16.7mA
