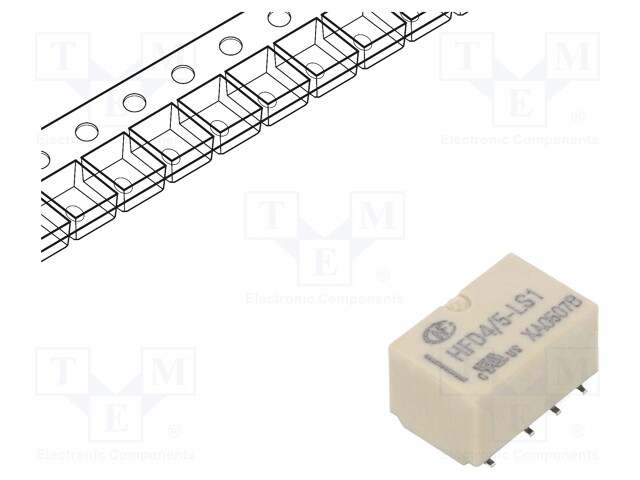

Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFD4/5-LS1R
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFD4/5-LS1R
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2.75 € 2.75 € (wo VAT) 2.75 EUR

    2.75 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; DPDT; Ucoil: 5VDC; 0.5A/125VAC; 2A/30VDC

    Mounting SMT
    Operating temperature -40...85°C
    Contact material AgNi + Au
    Terminal pitch 2.2mm

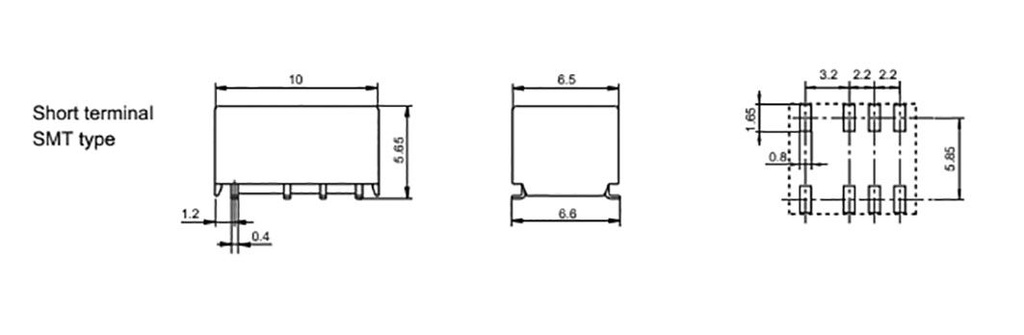

    Body dimensions 10x6.5x5.65mm
    Switched voltage max. 220V DC, max. 250V AC
    Coil resistance 250Ω
    Rated coil voltage 5V DC

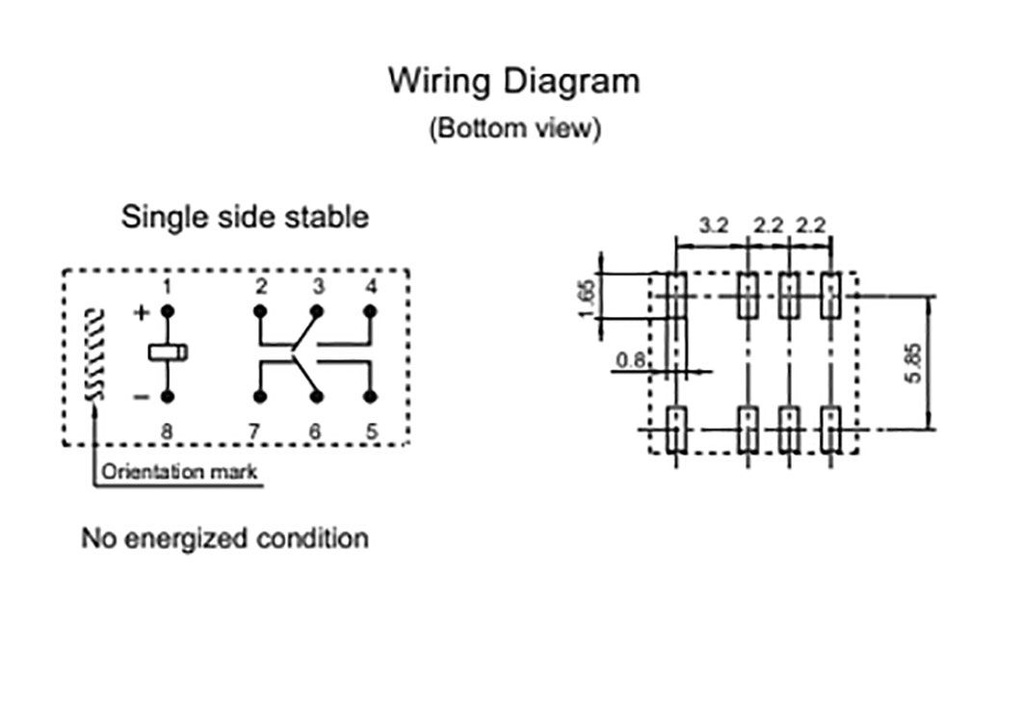

    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 0.5A / 125V AC
    Contact current max. 2A
    Relay variant signal, subminiature
    Coil voltage max. 10V DC
    Type of relay electromagnetic
    Coil voltage min. 3.75V DC
    Coil power consumption 100mW
    Operate time 3ms
    Release time 3ms
