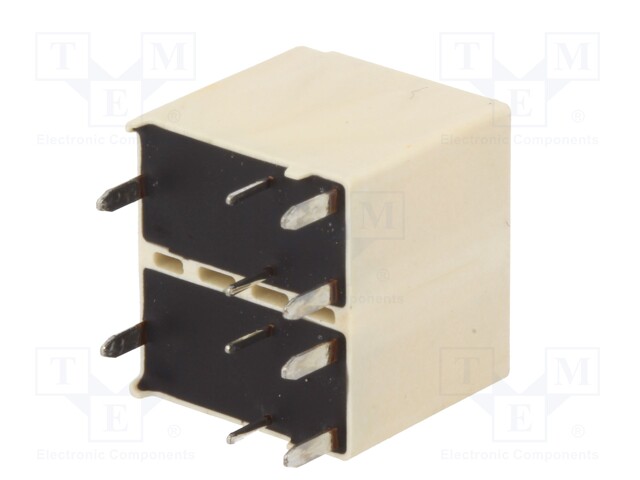

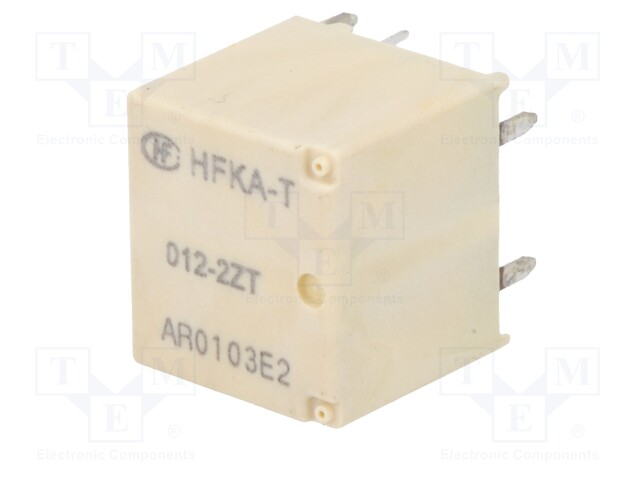

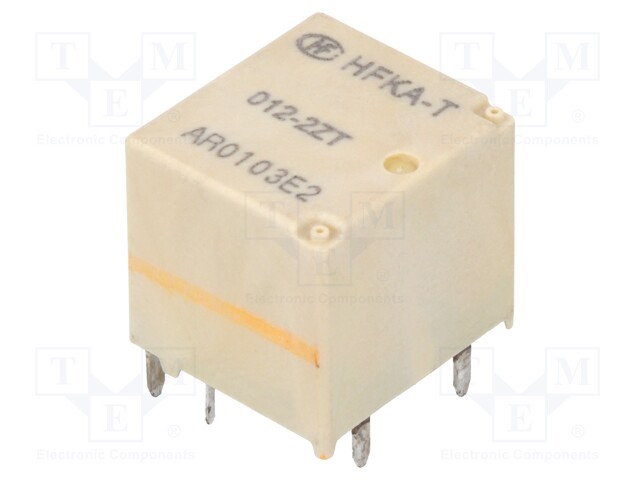

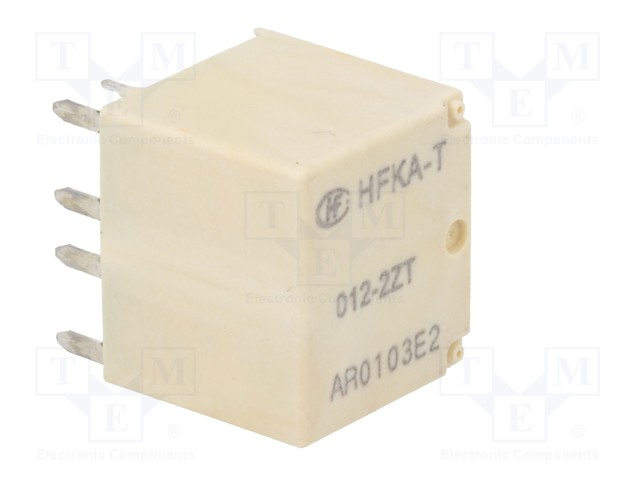

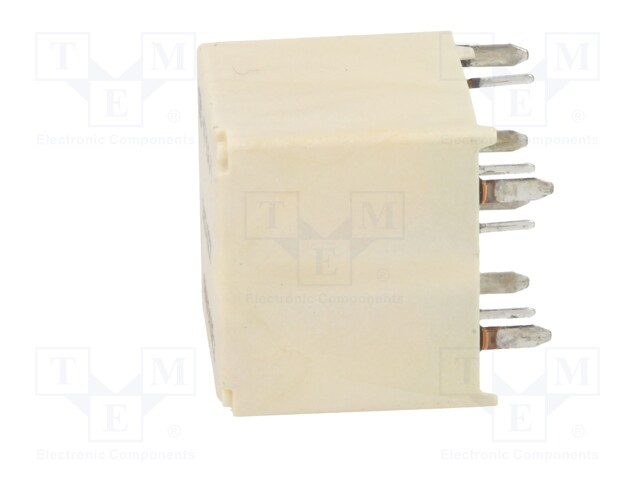

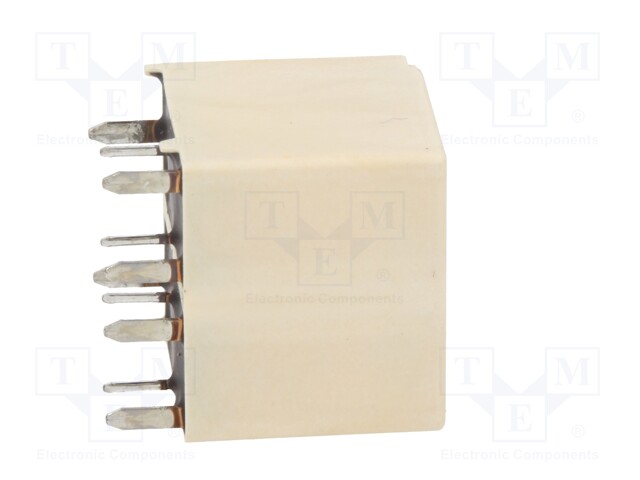

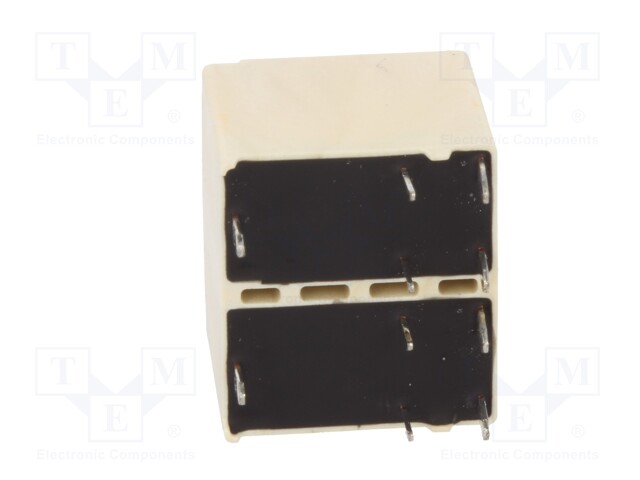

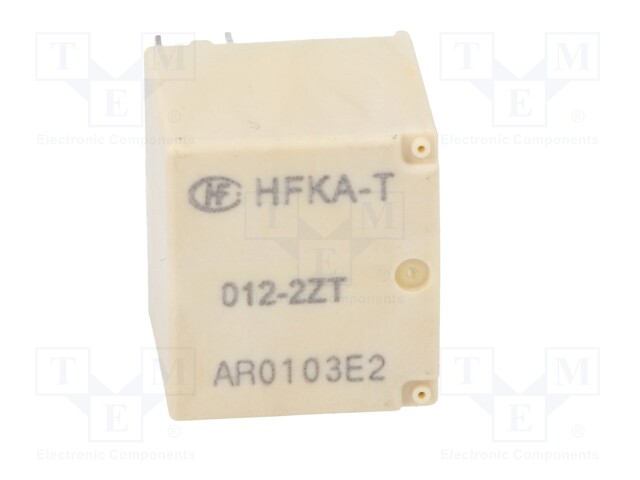

Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 30A; automotive

    Multiples: 1380.0
    Minimum quantity: 1380.0
    Product code: HFKA-T/012-2ZT
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFKA-T/012-2ZT
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    2.40 € 2.40 € (wo VAT) 2.4 EUR

    2.40 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 30A; automotive

    Mounting PCB
    Operating temperature -40...105°C
    Contact material AgSnO<sub>2</sub>

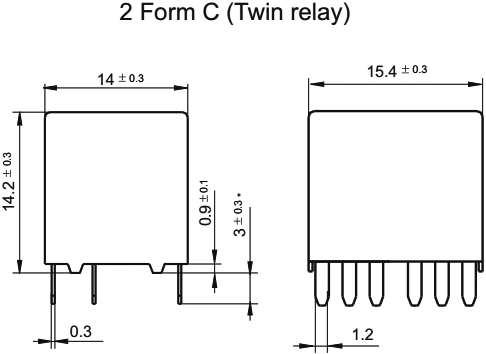

    Body dimensions 14x15.4x14.2mm
    Switched voltage max. 16V DC
    Coil resistance 225Ω
    Rated coil voltage 12V DC

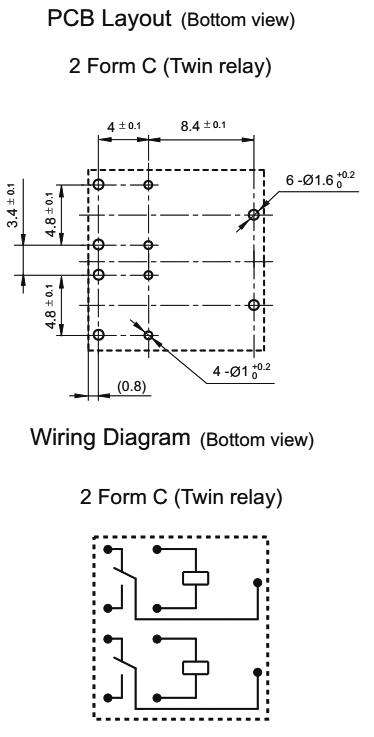

    Contacts configuration SPDT x2
    DC contacts rating @R 25A / 12V DC
    Contact current max. 30A
    Relay variant automotive
    Coil voltage max. 16V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 640mW
