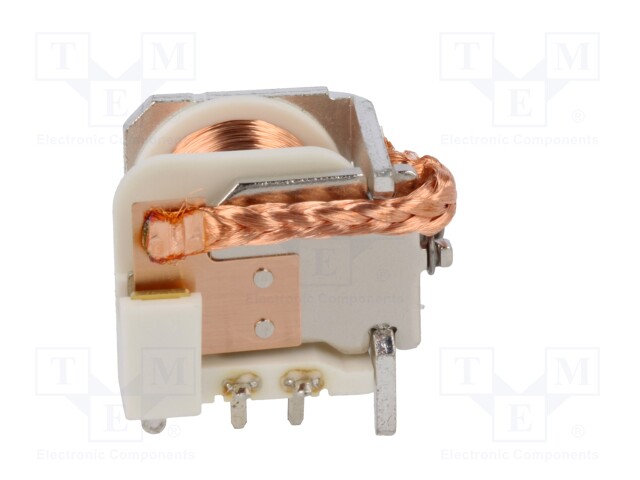

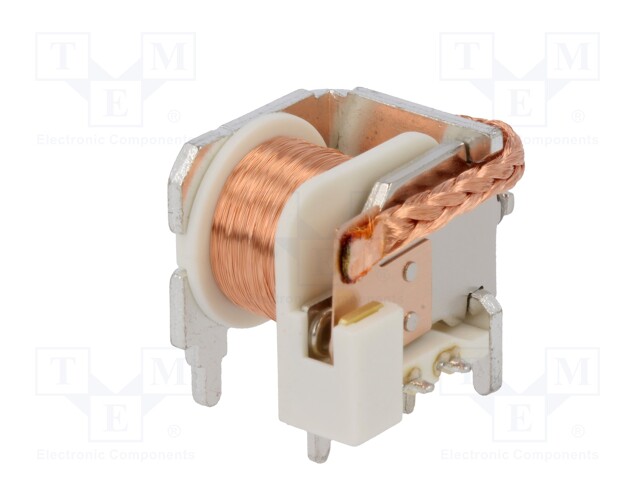

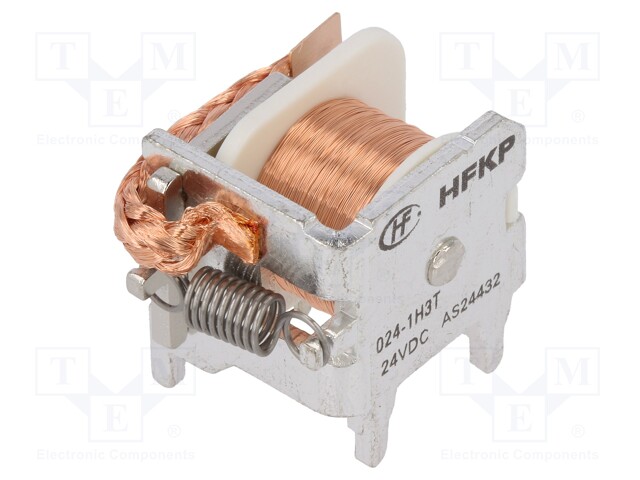

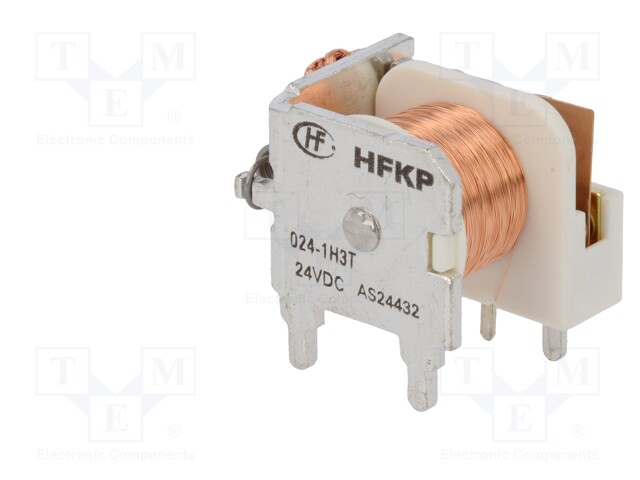

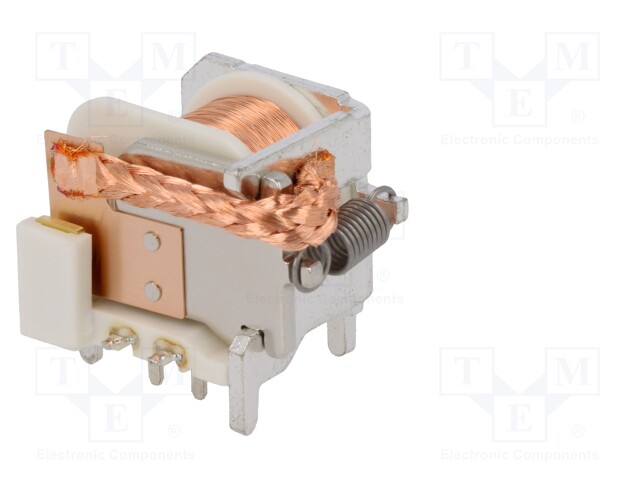

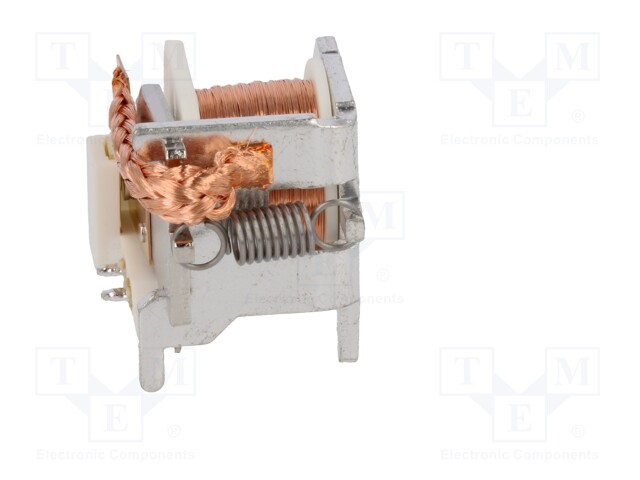

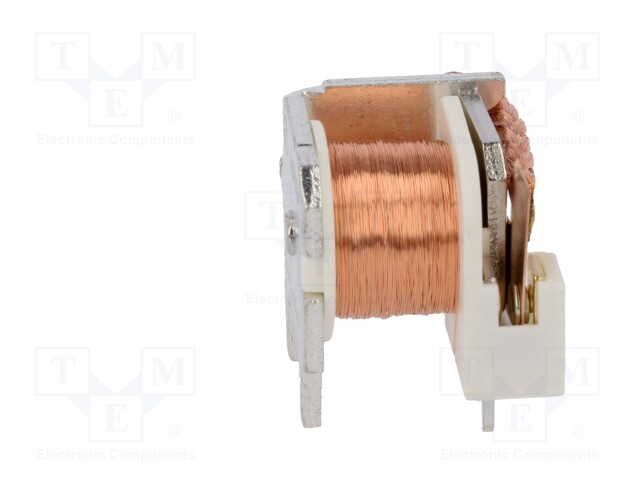

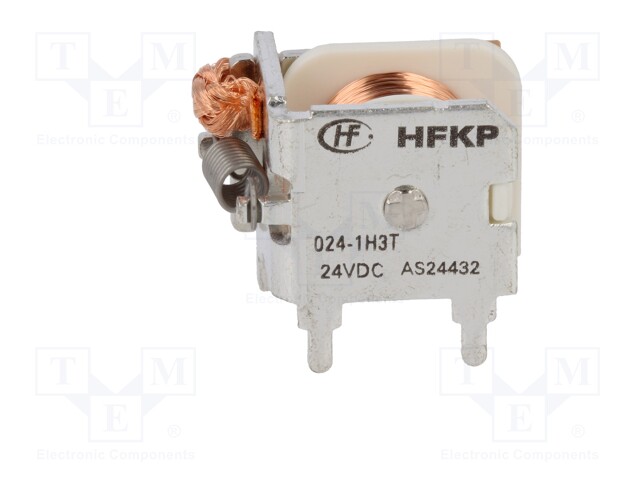

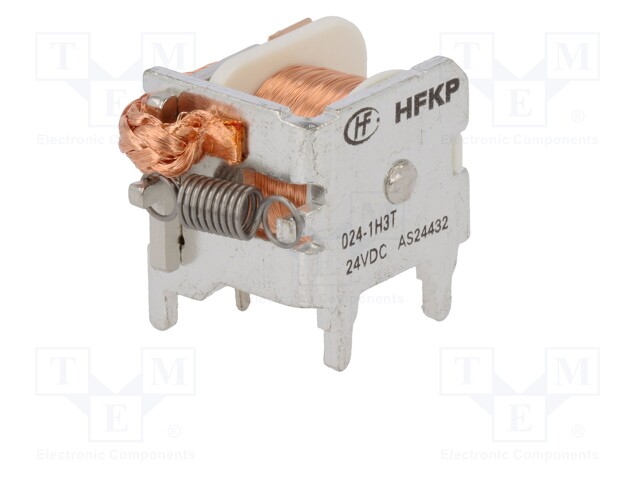

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 60A; automotive

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFKP/024-1H3T
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFKP/024-1H3T
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; 60A; automotive

    Mounting PCB
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>
    Body dimensions 22x26.5x22.3mm
    Switched voltage max. 75V DC
    Coil resistance 362Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 45A / 12V DC
    Contact current max. 60A
    Relay variant automotive
    Coil voltage max. 28.6V DC
    Type of relay electromagnetic
    Coil voltage min. 13.9V DC
    Coil power consumption 1.6W
