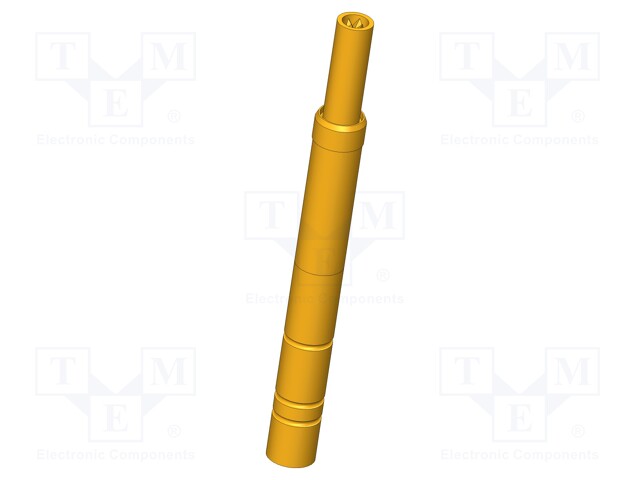

Test needle; Operational spring compression: 4mm; 3A; push-in

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFS-110 304 115 A 3002 A
    Manufacturer: INGUN
    Manufacturer code: HFS-110 304 115 A 3002 A
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Length
    • Impedance
    • Current rating
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    40.98 € 40.98 € (wo VAT) 40.980000000000004 EUR

    40.98 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4mm; 3A; push-in

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Length 35mm
    Impedance 50Ω
    Current rating 3A
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5mm
    Blade tip shape flat
