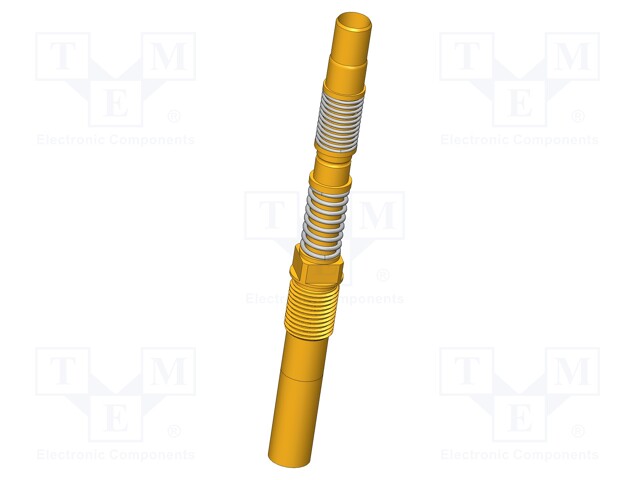

Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFS-807 308 030 A 6842 HTE-F-M
    Manufacturer: INGUN
    Manufacturer code: HFS-807 308 030 A 6842 HTE-F-M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Length
    • Impedance
    • Current rating
    • Max. frequency
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 1mm; 2A; Ø: 0.3mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Length 35.5mm
    Impedance 50Ω
    Current rating 2A
    Max. frequency 12GHz
    Tip diameter 0.3mm
    Type of test accessories test probe
    Operational spring compression 1mm
    Maksimum spring compression 1.5mm
