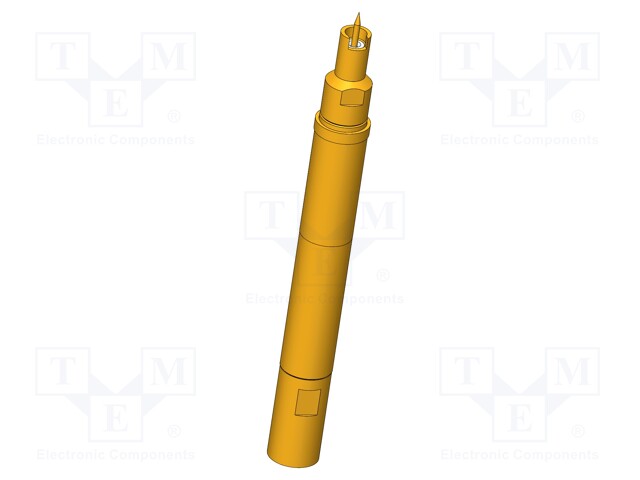

Test needle; Operational spring compression: 2mm; 3A; Ø: 1.8mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFS-840 201 051 A 9302 S
    Manufacturer: INGUN
    Manufacturer code: HFS-840 201 051 A 9302 S
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Impedance
    • Current rating
    • Max. frequency
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Blade tip shape

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 2mm; 3A; Ø: 1.8mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Impedance 50Ω
    Current rating 2A
    Max. frequency 2GHz
    Tip diameter 1.8mm
    Type of test accessories test probe
    Operational spring compression 2mm
    Blade tip shape flat
