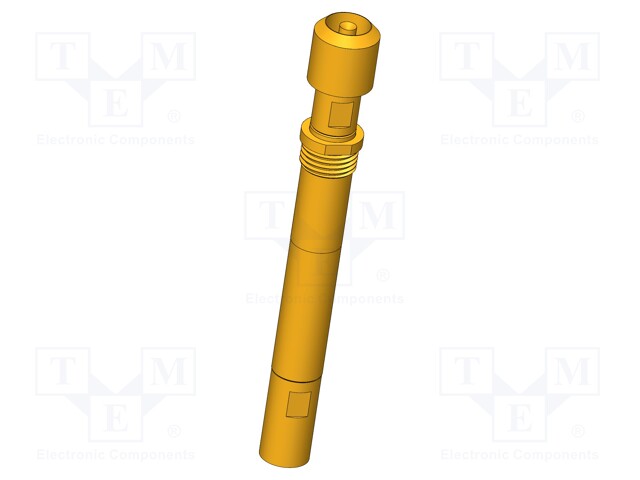

Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFS-840 303 150 A 8042 FS1 M
    Manufacturer: INGUN
    Manufacturer code: HFS-840 303 150 A 8042 FS1 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Impedance
    • Current rating
    • Max. frequency
    • Tip diameter
    • Type of test accessories
    • Operational spring compression

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 2mm; 3A; Ø: 1.5mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Impedance 50Ω
    Current rating 3A
    Max. frequency 4GHz
    Tip diameter 1.5mm
    Type of test accessories test probe
    Operational spring compression 2mm
