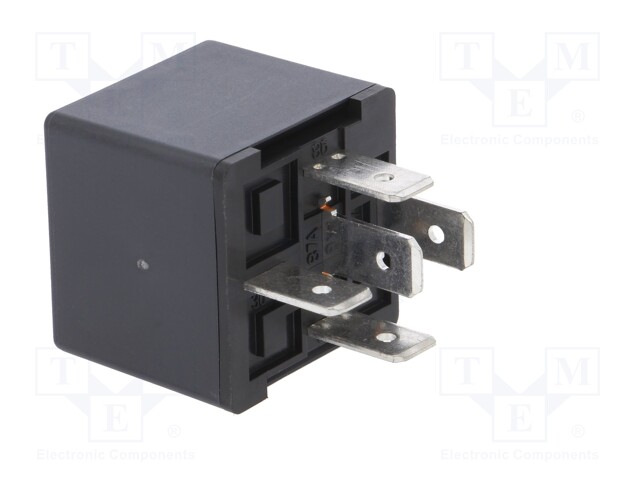

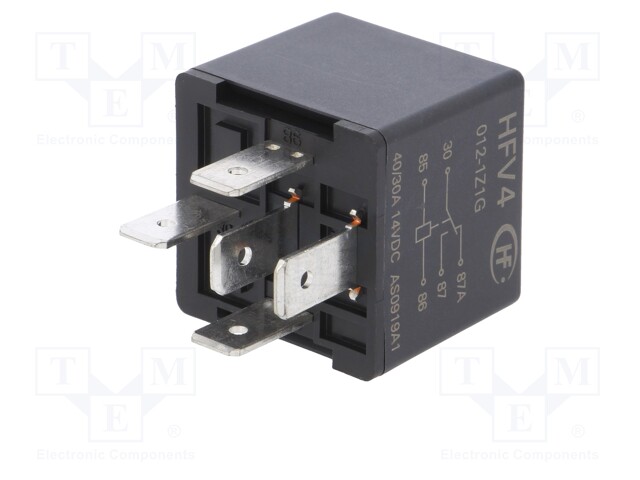

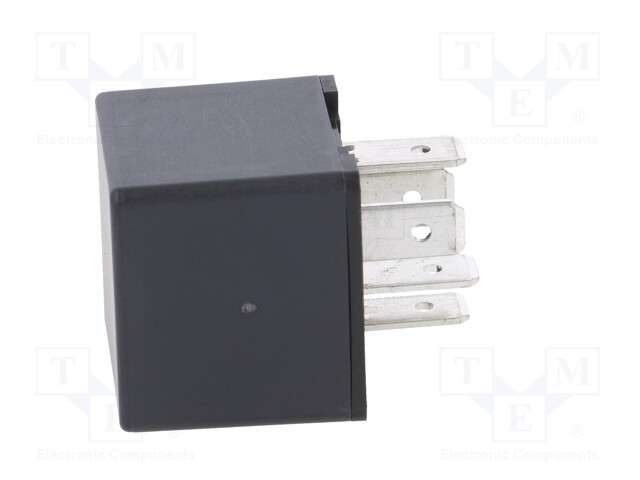

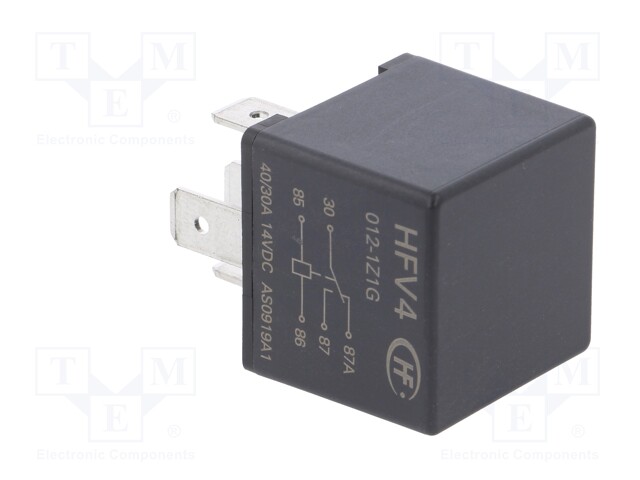

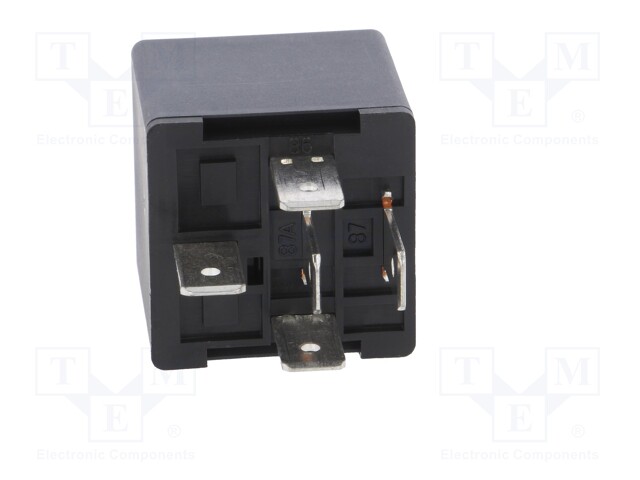

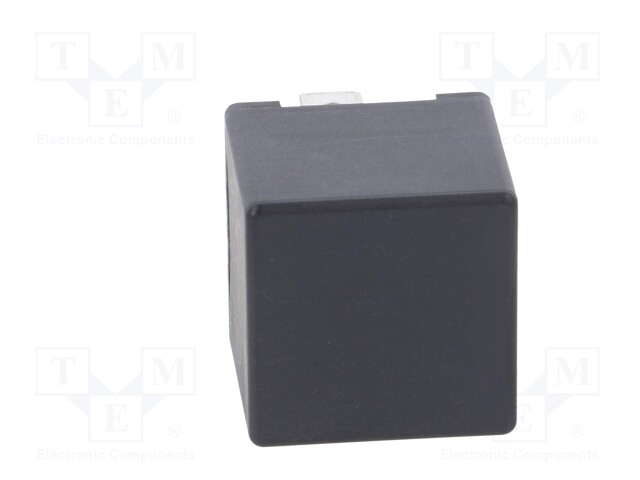

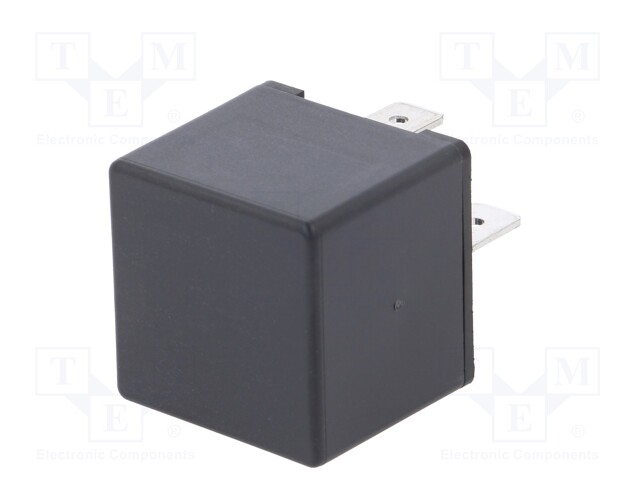

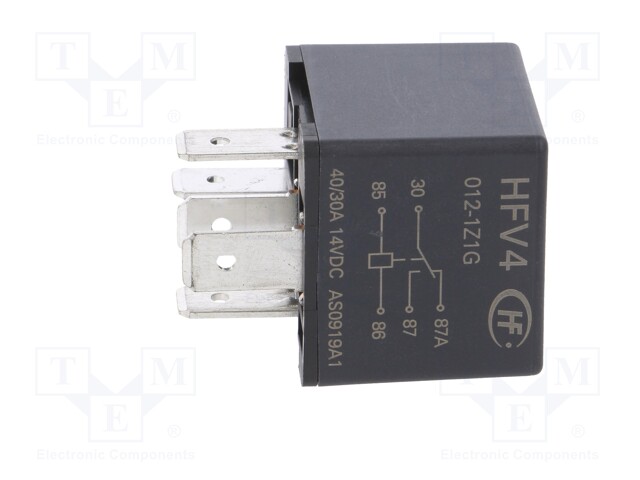

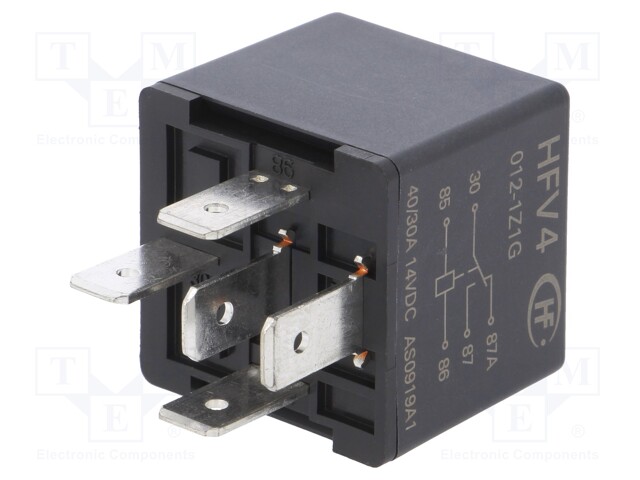

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 60A; automotive; 85Ω

    Multiples: 300.0
    Minimum quantity: 300.0
    Product code: HFV4/012-1Z1G
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFV4/012-1Z1G
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    0.00 € 0.00 € (wo VAT) 0.0 EUR

    0.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 60A; automotive; 85Ω

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

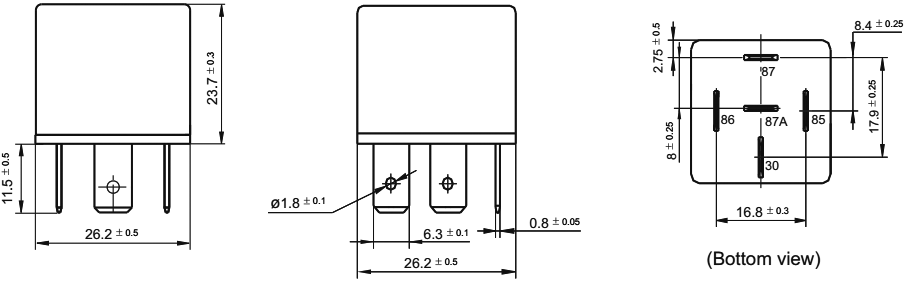

    Body dimensions 26.2x26.2x23.7mm
    Coil resistance 85Ω
    Rated coil voltage 12V DC

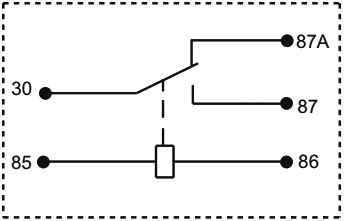

    Contacts configuration SPDT
    DC contacts rating @R 40A / 12V DC
    Contact current max. 60A
    Relay variant automotive
    Coil voltage max. 15.7V DC
    Type of relay electromagnetic
    Coil voltage min. 7.8V DC
    Coil power consumption 1.7W
