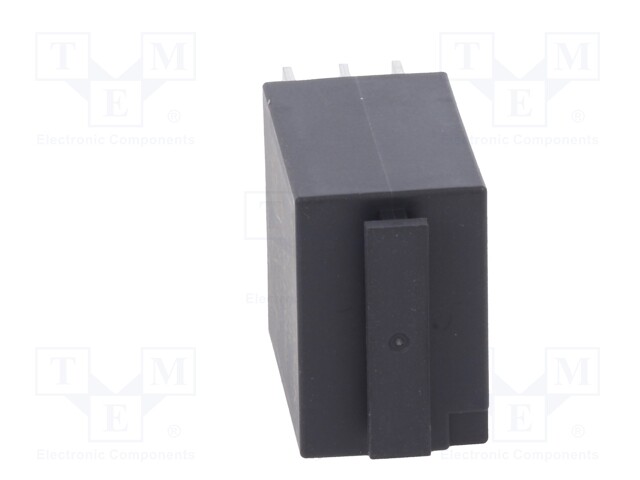

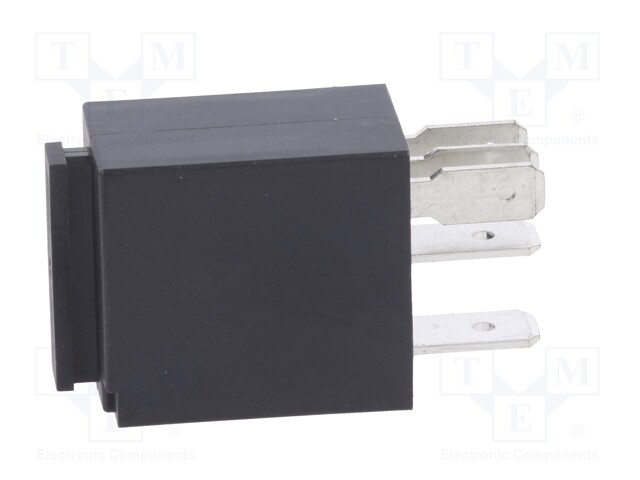

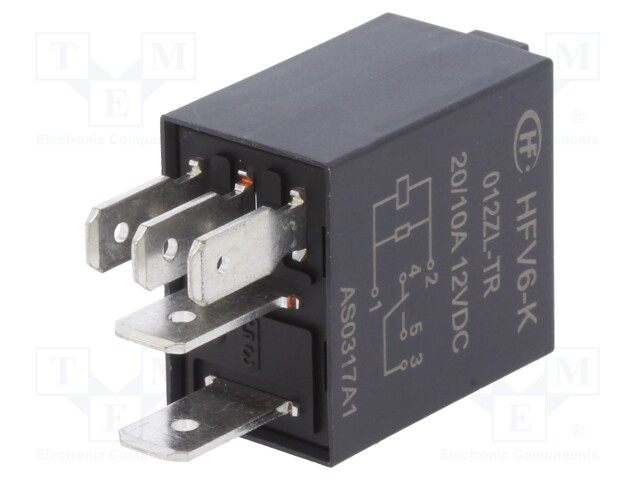

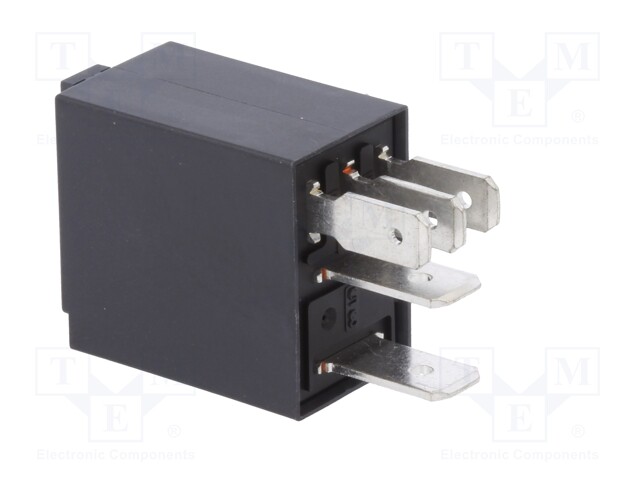

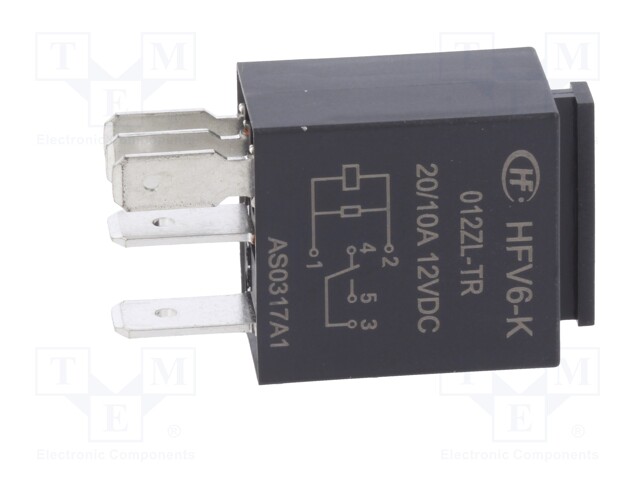

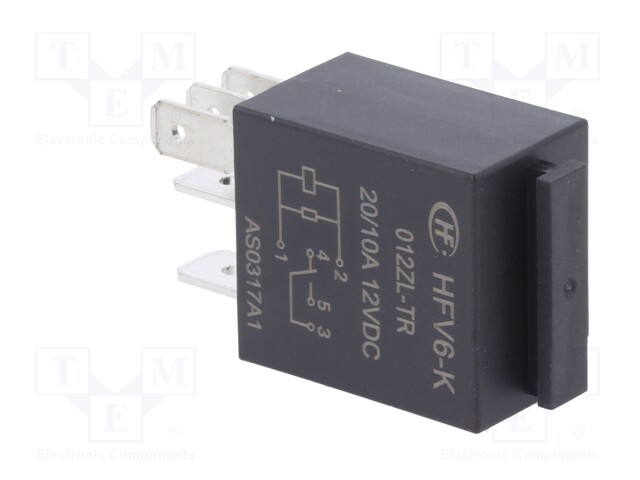

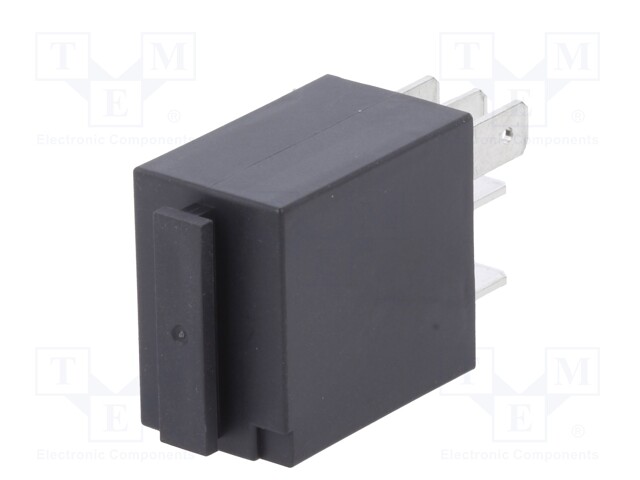

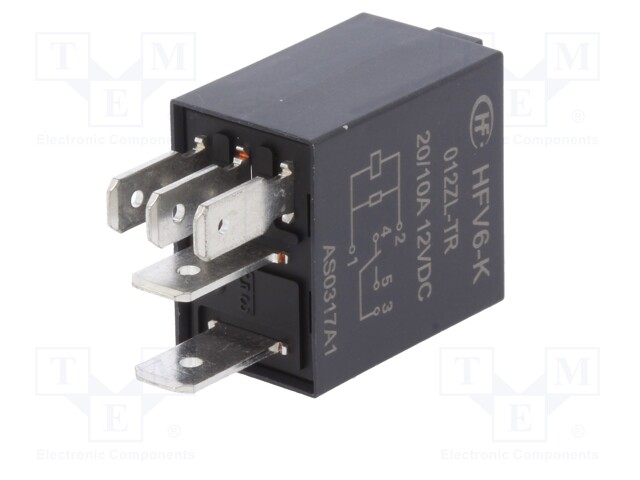

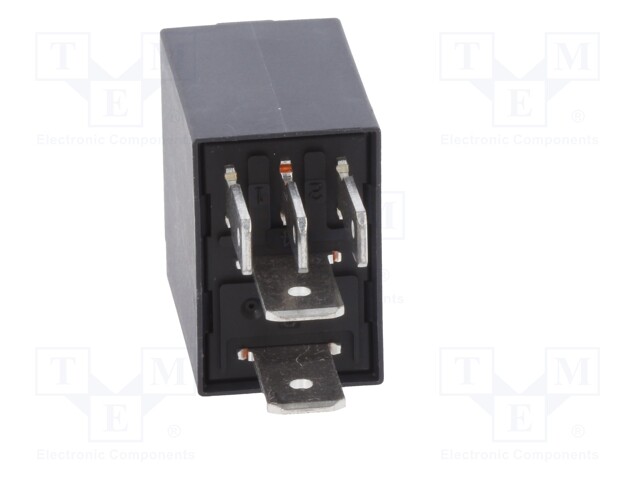

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; automotive; 124Ω

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HFV6-K/012ZL-TR
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFV6-K/012ZL-TR
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Optional equipment

    2.64 € 2.64 € (wo VAT) 2.64 EUR

    2.64 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A; automotive; 124Ω

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

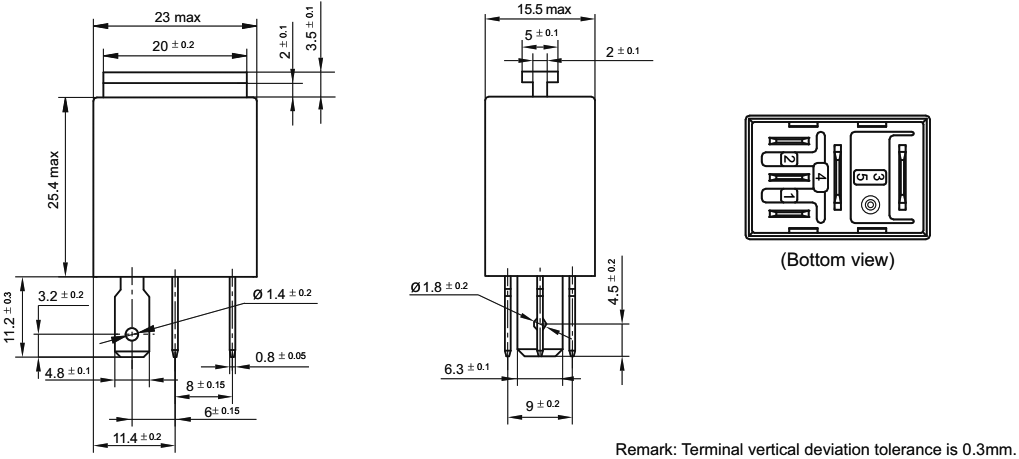

    Body dimensions 23x15.5x25.4mm
    Switched voltage max. 27V DC
    Coil resistance 124Ω
    Rated coil voltage 12V DC

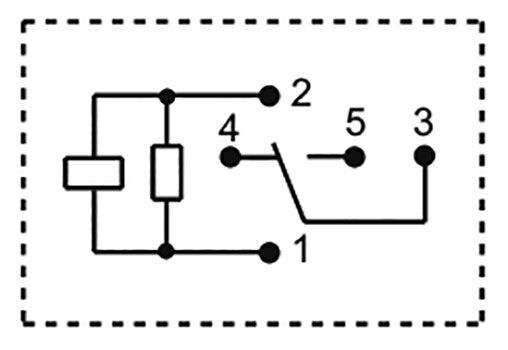

    Contacts configuration SPDT
    DC contacts rating @R 20A / 12V DC
    Contact current max. 30A
    Relay variant automotive
    Coil voltage max. 15V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.4W
    Optional equipment overvoltage suppression resistor
