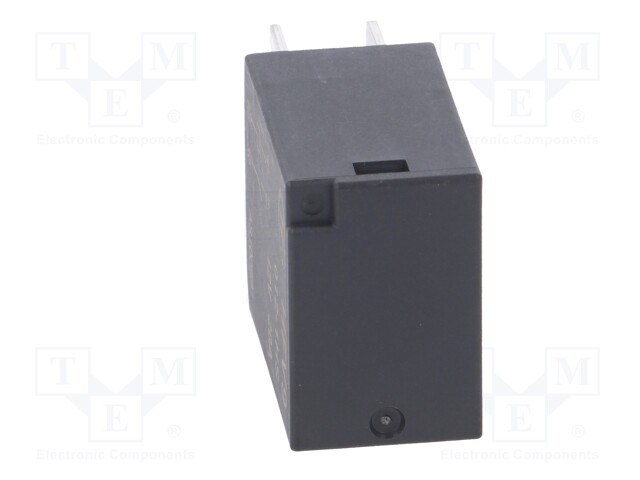

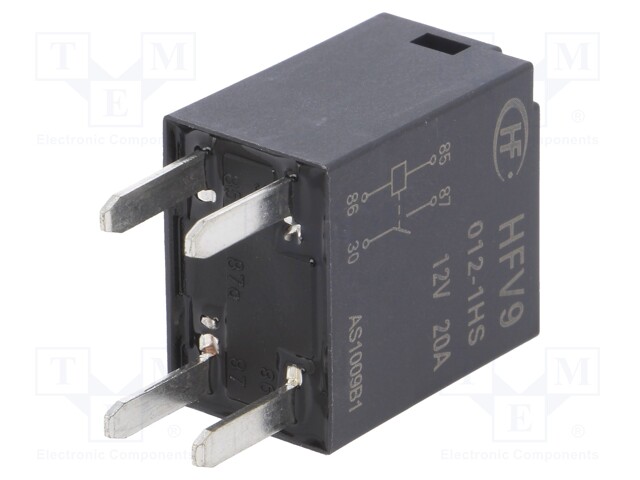

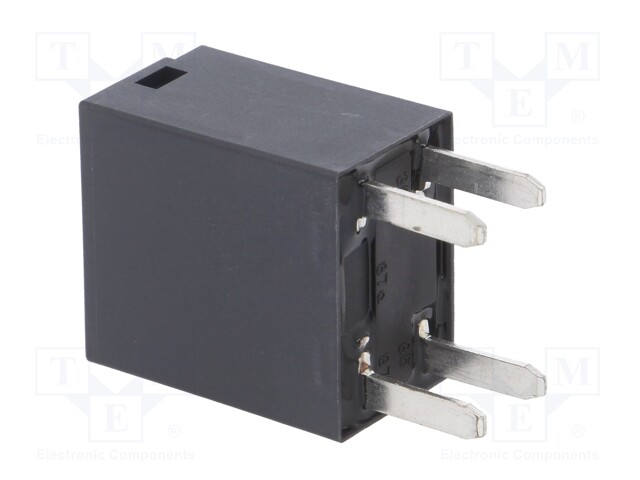

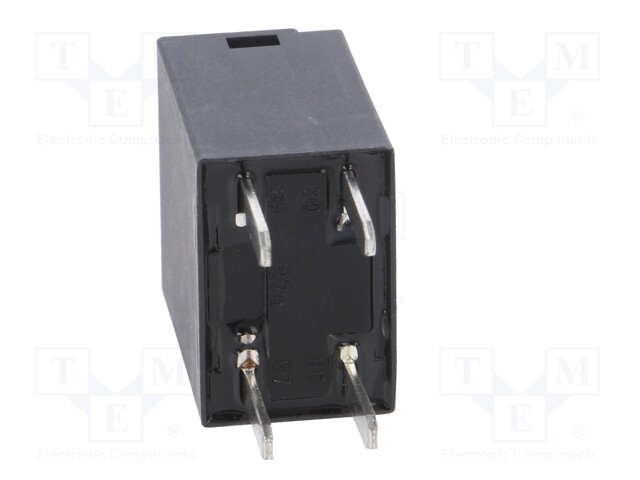

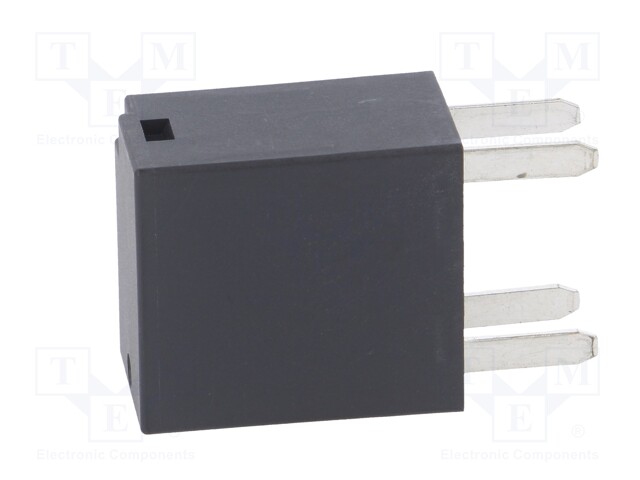

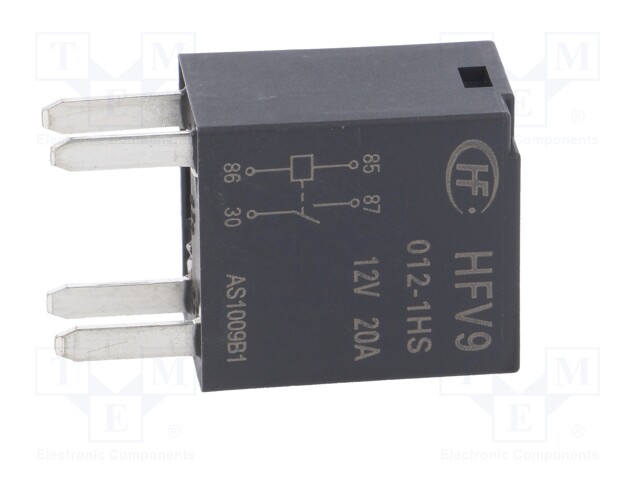

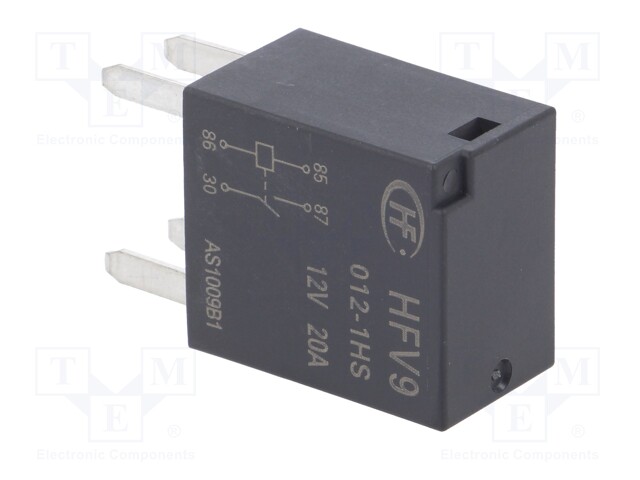

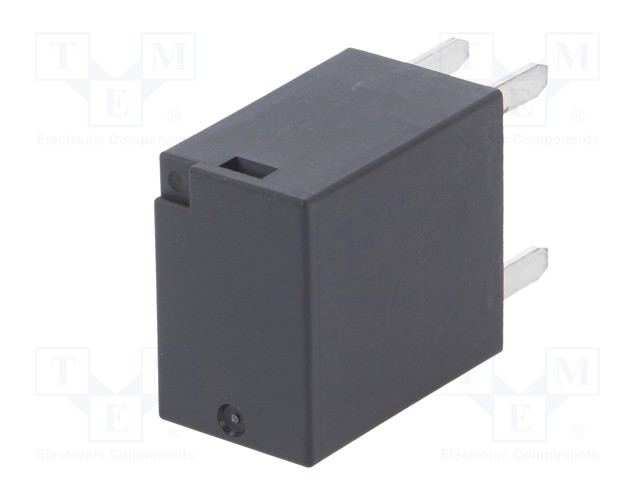

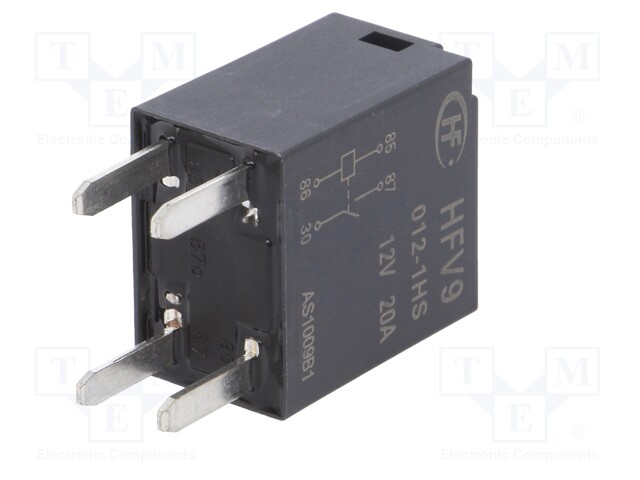

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive

    Multiples: 600.0
    Minimum quantity: 600.0
    Product code: HFV9/012-1HS
    Manufacturer: HONGFA RELAY
    Manufacturer code: HFV9/012-1HS
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    1.55 € 1.55 € (wo VAT) 1.55 EUR

    1.55 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 30A; automotive

    Mounting socket
    Operating temperature -40...125°C
    Contact material AgSnO<sub>2</sub>

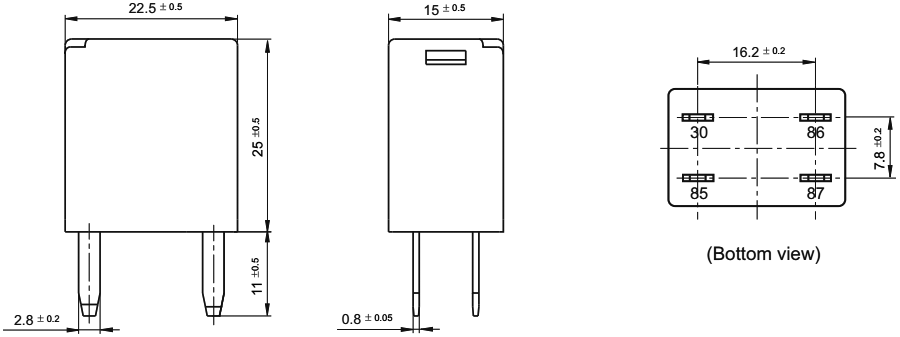

    Body dimensions 22.5x15x25mm
    Coil resistance 109Ω
    Rated coil voltage 12V DC

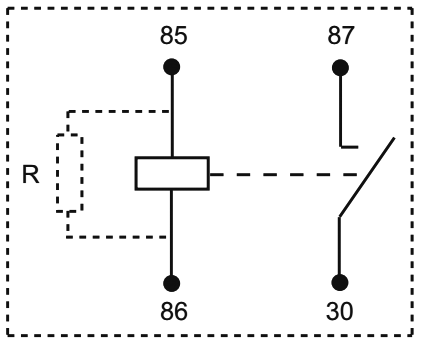

    Contacts configuration SPST-NO
    DC contacts rating @R 20A / 12V DC
    Contact current max. 30A
    Relay variant automotive
    Coil voltage max. 14.9V DC
    Type of relay electromagnetic
    Coil voltage min. 7.2V DC
    Coil power consumption 1.3W
