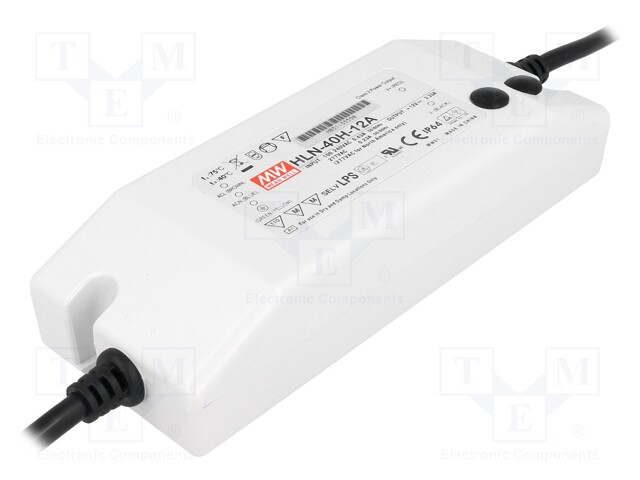

Power supply: switched-mode; LED; 40W; 12VDC; 10.8÷13.5VDC; 2÷3.3A

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HLN-40H-12A
    Manufacturer: MEAN WELL
    Manufacturer code: HLN-40H-12A
    • Output current
    • Supply voltage
    • Supply voltage
    • Power
    • Operating temperature
    • IP rating
    • Protection
    • Protection
    • Protection
    • Protection
    • Type of power supply
    • Series
    • Application
    • Body dimensions
    • Output voltage
    • Additional functions
    • Additional functions
    • Efficiency
    • Number of outputs
    • Electrical connection

    31.30 € 31.30 € (wo VAT) 31.3 EUR

    31.30 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Power supply: switched-mode; LED; 40W; 12VDC; 10.8÷13.5VDC; 2÷3.3A

    Output current 2...3.3A
    Supply voltage 90...305V AC, 127...431V DC
    Power 40W
    Operating temperature -40...50°C
    IP rating IP64
    Protection overheating, anti-overload, anti-overvoltage, short circuit protection
    Type of power supply switched-mode
    Series HLN-40H
    Application LED

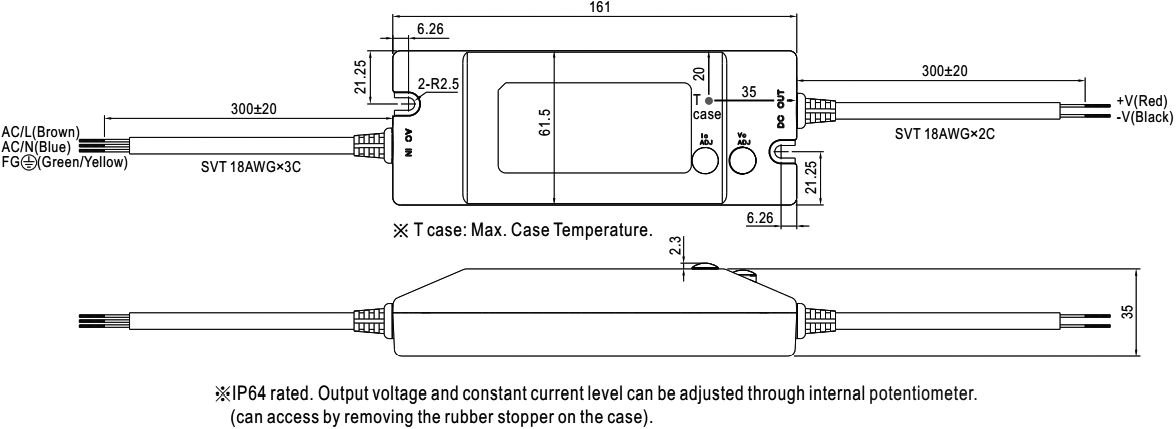

    Body dimensions 161x61.5x35mm
    Output voltage 12V DC
    Additional functions active PFC, adjustable output voltage and current level
    Efficiency 86.5%
    Number of outputs 1
    Electrical connection wires
