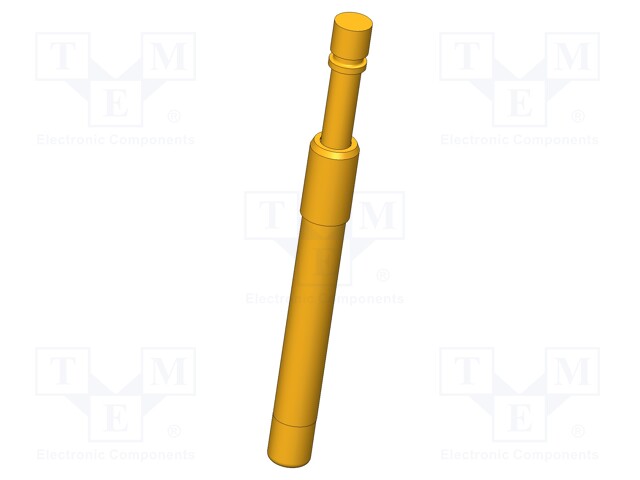

Test needle; Operational spring compression: 4mm; 30A; Ø: 2.3mm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: HSS-120 302 230 A 1505
    Manufacturer: INGUN
    Manufacturer code: HSS-120 302 230 A 1505
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance:
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    14.64 € 14.64 € (wo VAT) 14.64 EUR

    14.64 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Test needle; Operational spring compression: 4mm; 30A; Ø: 2.3mm

    Mounting push-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance: 10mΩ
    Current rating 30A

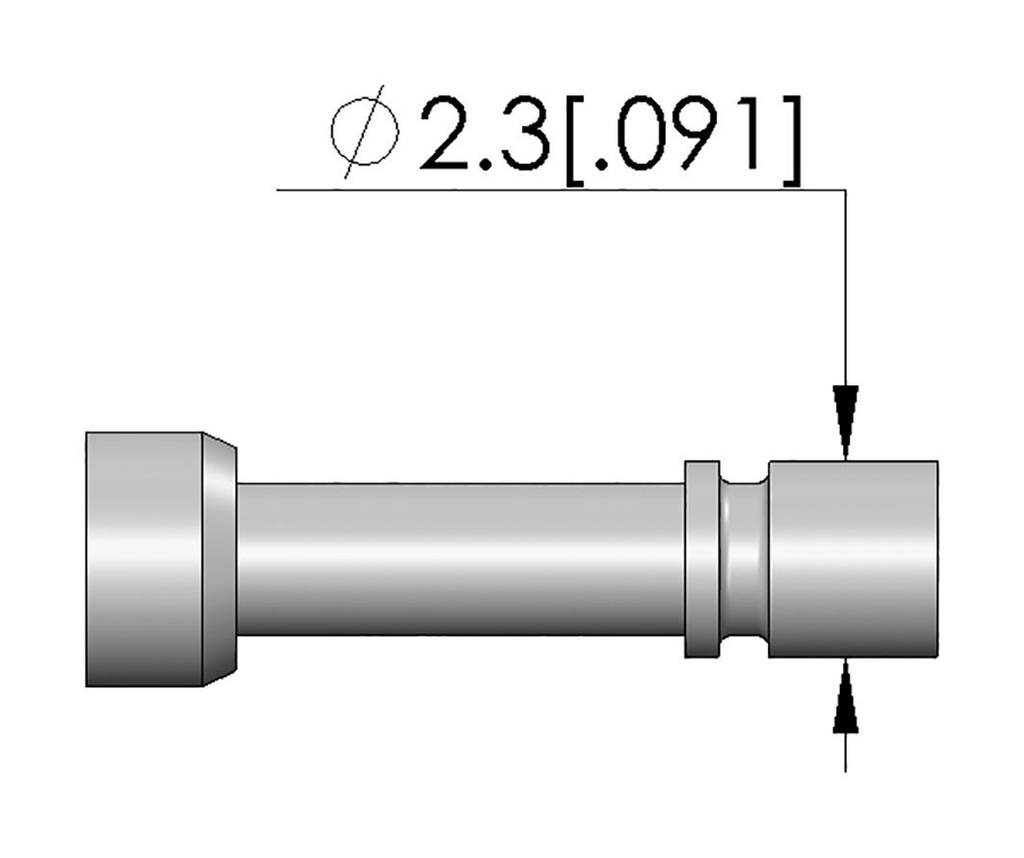

    Tip diameter 2.3mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5.3mm
    Blade tip shape flat
